Overview
Y8 is a series of 4K LED controller designed by LINSN. One device supports 26million pixels most. It supports various input and 40 gigabit outputs to meet requirements for ultra large LED screen.
Functions and features
1. Various inputs: HDMI®2.0*2, DP1.2*1, HDMI®1.3*4, VGA*1, DVI*1, 3G-SDI*2(SDI is optional)
2. Supports up to 40 gigabit outputs
3. one device supports up to 26 million pixels
4. Supports scaling
5. Multi layers supported and can be positioned randomly
6. Review output
7. Scene can be preset
8. Supports EDID management
9. Setup via LAN or type-c port
10. Supports schedule setup
11. License approval
12. Output detection
Download Specification:

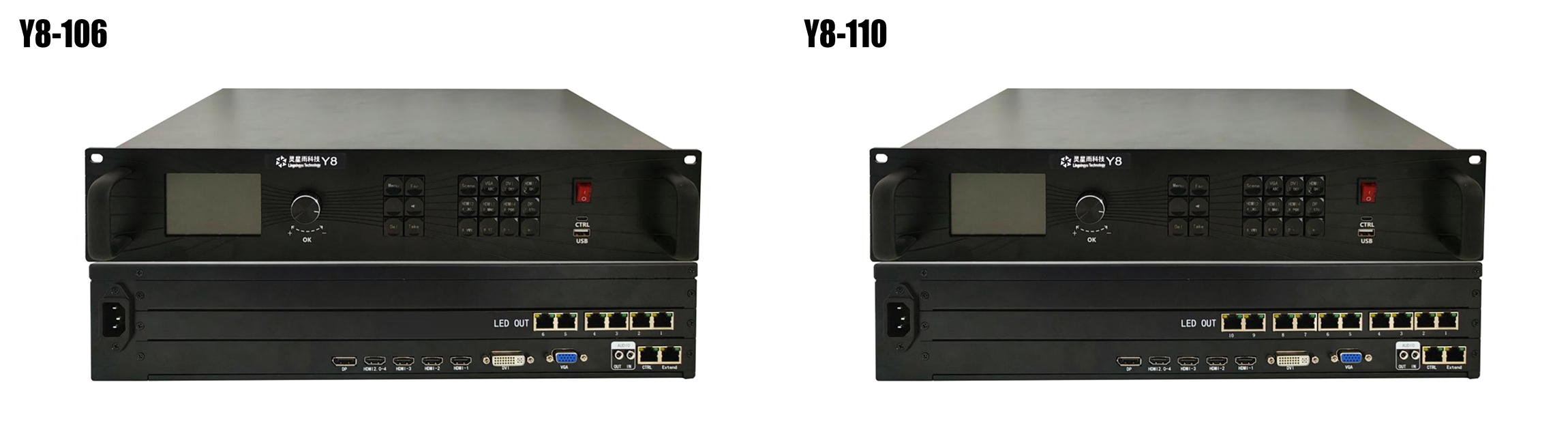

Linsn Y8-106 Y8-110 Two-in-one Video Processor Specification

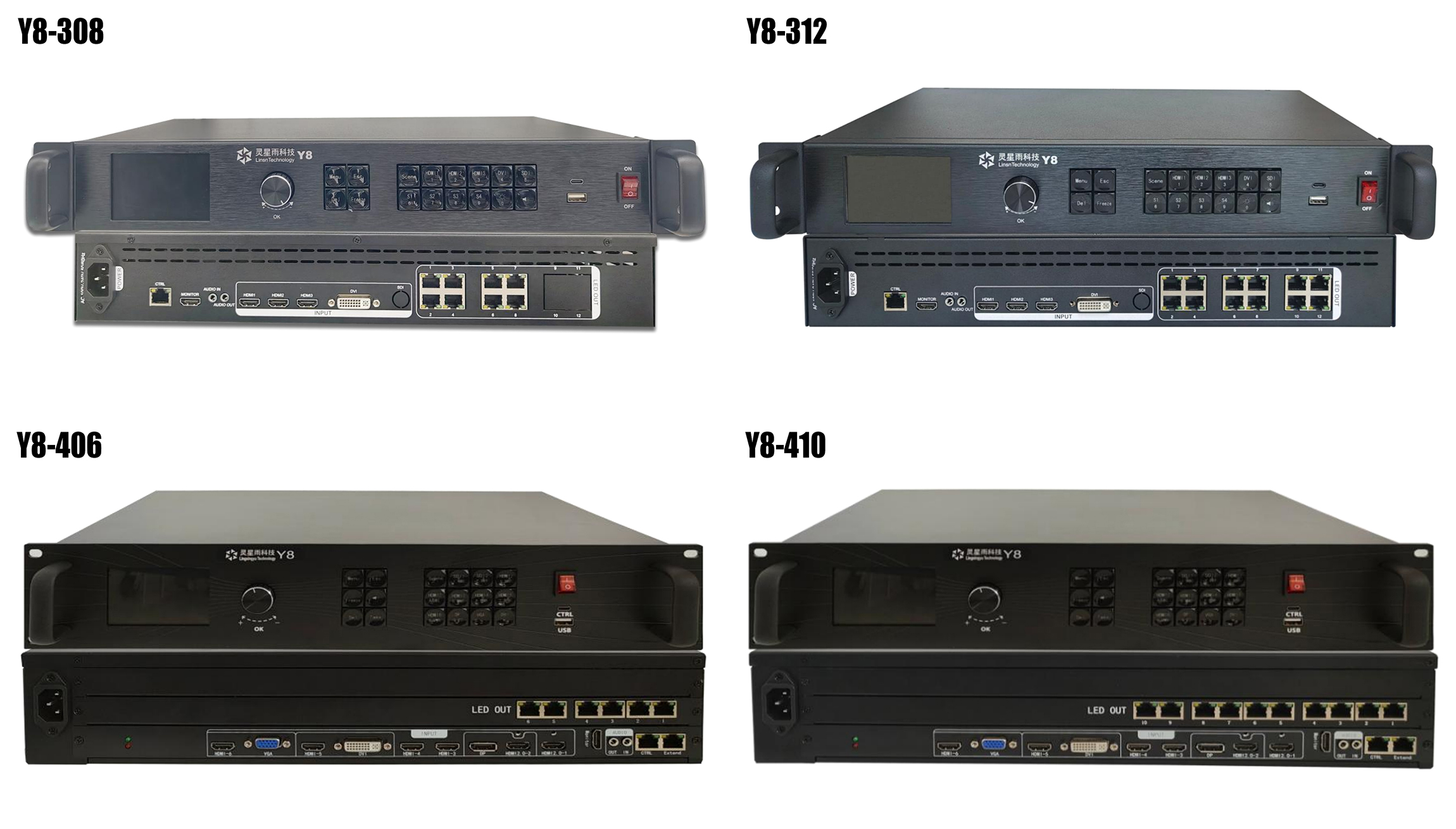

Linsn Y8-308 Two-in-one Video Processor Specification
Linsn Y8-312 Two-in-one Video Processor Specification
Linsn Y8-406 Two-in-one Video Processor Specification

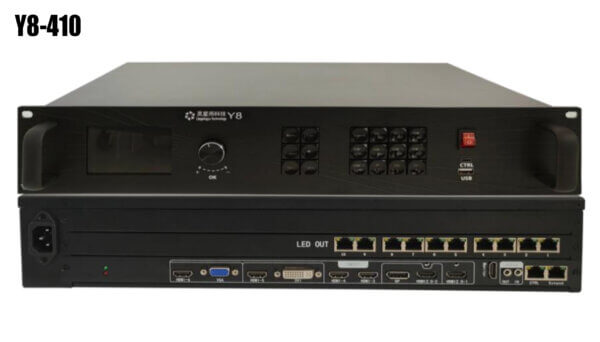

Linsn Y8-410 Two-in-one Video Processor Specification

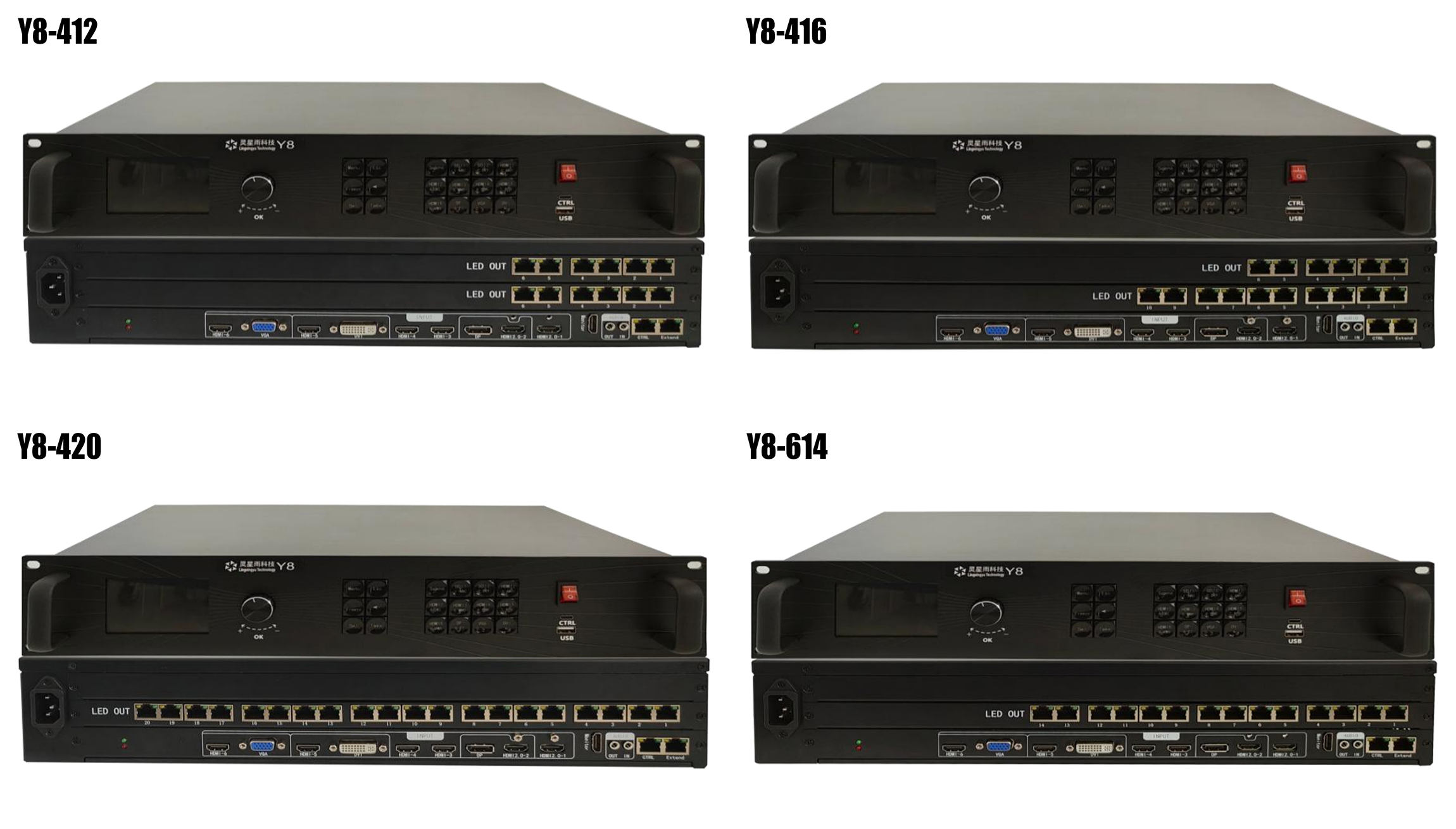

Linsn Y8-412 Two-in-one Video Processor Specification
Linsn Y8-416 Two-in-one Video Processor Specification
Linsn Y8-420 Two-in-one Video Processor Specification
Linsn Y8-614 Two-in-one Video Processor Specification

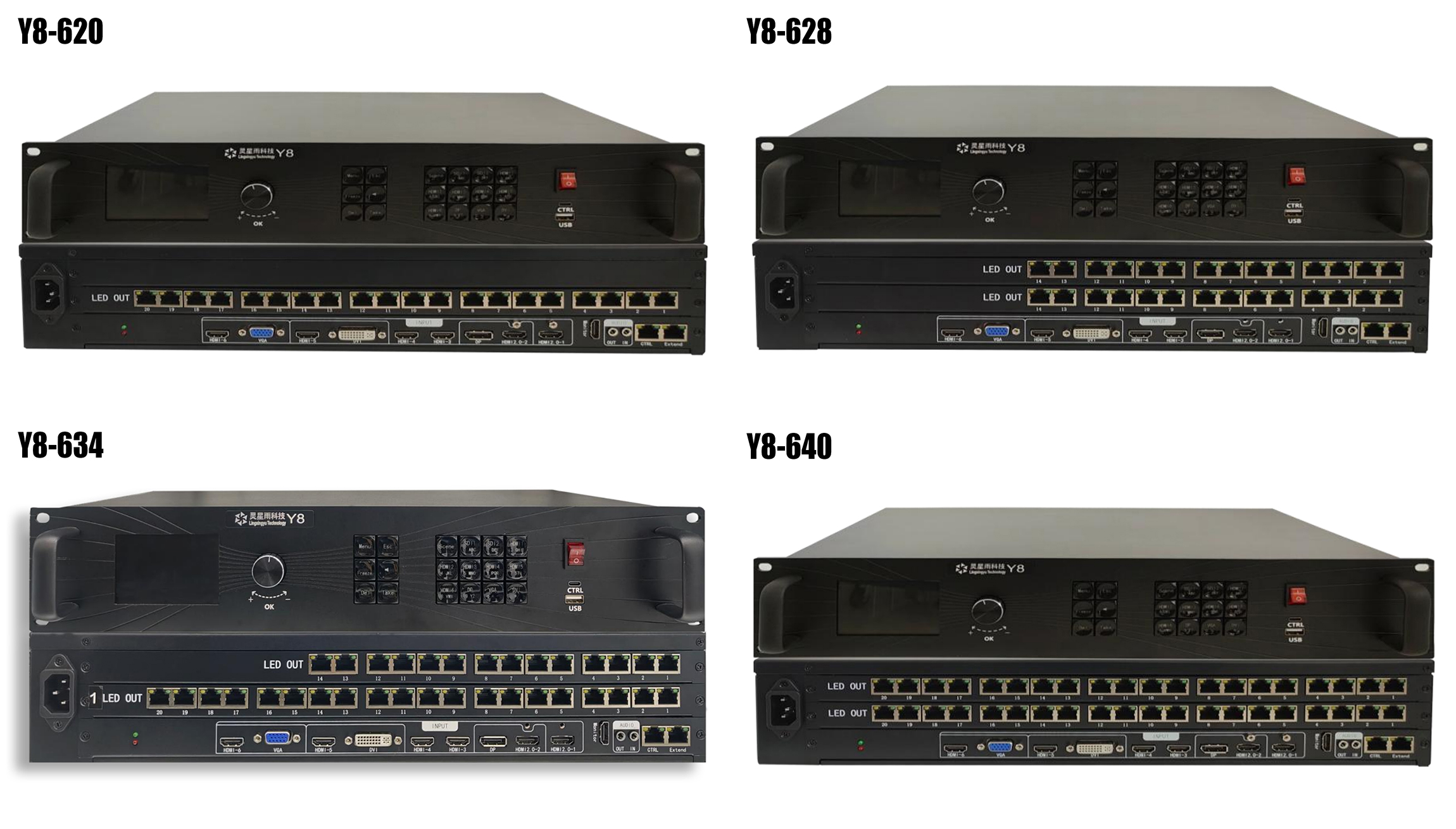

Linsn Y8-620 Two-in-one Video Processor Specification
Linsn Y8-628 Two-in-one Video Processor Specification
Linsn Y8-634 Two-in-one Video Processor Specification
Linsn Y8-640 Two-in-one Video Processor Specification
