LS-V312A full-color LED receiving card
The Listen LS-V312A from Shanghai Listen Vision connects compatible full-color LED modules through 12 onboard HUB75E interfaces. Its correction, mapping and backup functions support cabinet setup and maintenance.
| Parameter | Details |
|---|---|
| Model | LS-V312A |
| Module interfaces | 12 × HUB75E |
| Power connection | VH3.96-4WV terminal blocks |
| Operating voltage | 3.8–6 V; 5 V reverse-connection protection circuit |
| Operating temperature | −40 to 85 degrees, as stated in the specification |
| Scanning | Static to 64S |
| Stated standard loading | 256 × 512 pixels; see the loading note below |
| Decoding methods | 138, 595, 5958, 2013, 2018, 5266 and 5366 |
| Driver IC types | Conventional, dual-lock and high-refresh ICs |
| Rotation | Multiples of 90 degrees |
Loading note: The specification lists standard loading of 256 × 512 pixels and a maximum height of 1024 pixels, but gives both 256 and 512 pixels as maximum width in different sections. Confirm the supported width and height for your module and configuration before planning the cabinet layout; these figures should not be combined into a larger guaranteed loading area.
Configuration and maintenance
- Pixel-by-pixel correction and bright/dark line adjustment.
- Configuration file readback and single-card or multiple-card parameter updates.
- Data-group sequence adjustment, cascade guidance, row-order adjustment and XY positioning.
- One-key receiving-card replacement, dual network cable hot backup and dual program backup.
Frequently asked questions
How many HUB75E ports does the LS-V312A have?
It has 12 onboard HUB75E interfaces for compatible LED modules.
Which scan types does it support?
The specification lists scanning from static to 64S. Match the module driver IC, decoding method and configuration before installation.
What is the operating voltage?
The stated operating range is 3.8–6 V, with a 5 V reverse-connection protection circuit.
Can I read back the receiving-card configuration?
Yes. The LS-V312A supports configuration file readback and parameter configuration for one or multiple cards.
What should I check when replacing a card?
Confirm the exact model, module wiring and scan configuration. The card supports one-key replacement and dual backup functions; preserve the working configuration before replacement.

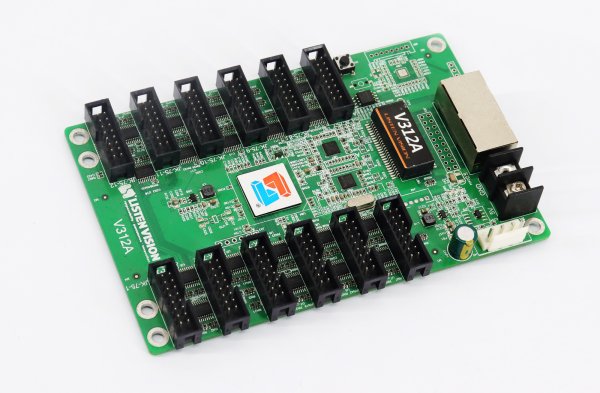

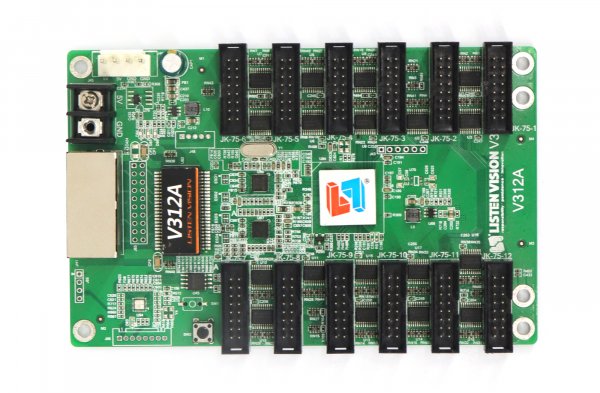

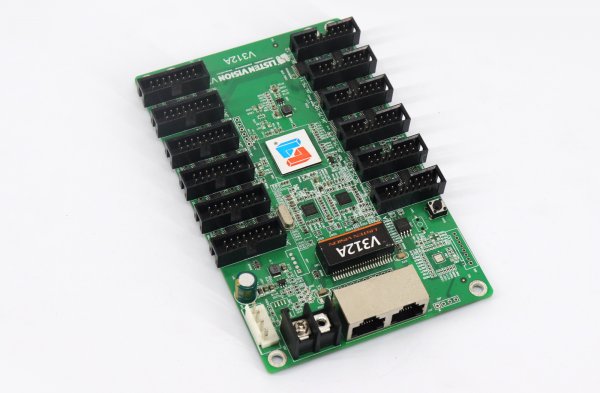

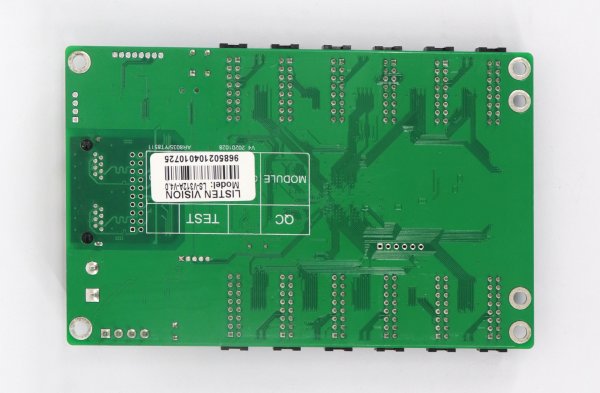

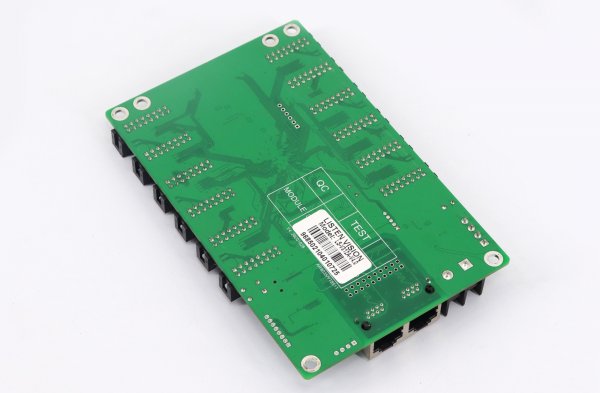

Product images


Download Specification
Listen LS-V312A Full-color Receiver Controller Card Specification
