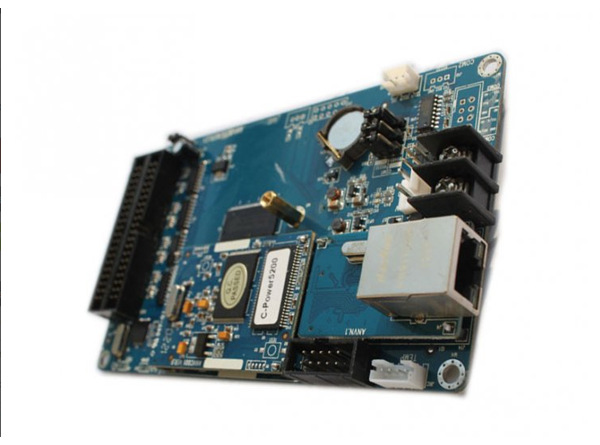

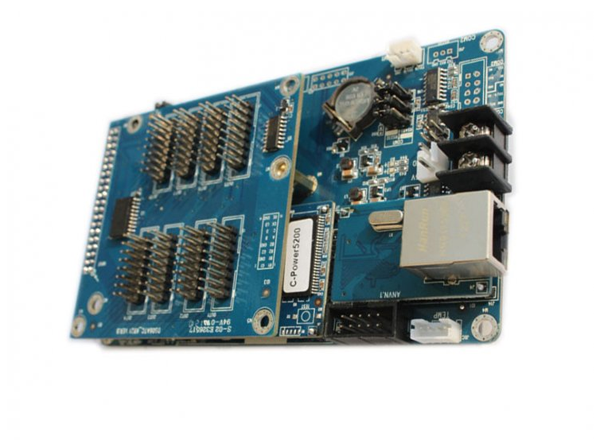

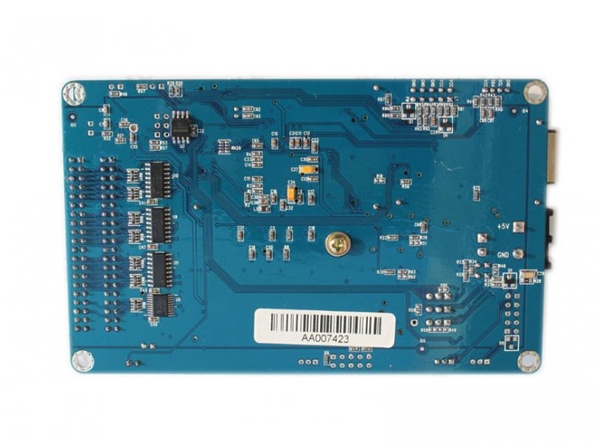

C-Power5200 with Included GPRS Module
This Lumen C-Power5200 listing includes the GPRS module in the product price. It is a full-color LED display controller with stored-program playback, 65,536-pixel control capacity and 256 grayscale levels.
The published specifications describe dual-band and quad-band GPRS module variants but do not identify which band variant is supplied on this page. Confirm the exact module and local GPRS service availability before ordering for a wireless installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Lumen C-Power5200 |
| Included communication hardware | GPRS module |
| GPRS module variants in the specification | Dual-band or quad-band; supplied variant requires confirmation |
| Control capacity | 65,536 pixels; full-color, monochrome and RG displays |
| Listed display layouts | 1024 × 64, 768 × 80, 512 × 128 or 256 × 256 pixels |
| Grayscale | 256 levels |
| Total memory | 256 MByte |
| Program memory | 128 MByte |
| Font library space | 128 MByte |
| Program capacity | Up to 512 programs |
| Playback windows | Up to 10 per program |
| Video and animation | AVI video; SWF and GIF animation |
| Other display content | Pictures, text, clocks and temperature information |
| Software | LedCenter V3.53 or above; V3.54 or above for video |
| Serial communication | RS232/RS485; maximum baud rate 115200 |
| Text and picture effects | More than 60 |
| Clock functions | Real-time clock management; digital and analogue clocks |
| Sensor support | External sensors; 32-grade brightness |
| Infrared controller / keyboard | Program-list editing and display control |
Wireless Configuration and Alternatives
Match the GPRS module variant to your installation requirements. The C-Power5200 specifications also describe a TCP/IP network version with encrypted message transmission and a USB flash-drive version. Those descriptions do not establish that Ethernet and USB are included in this GPRS package.
For selectable Ethernet, USB and GPRS configurations, compare the C-Power5200 offline controller options. To verify this package, contact us with your required module variant and display configuration.
Display Programs and Scheduling
Programs are sent as compressed packages and decompressed on the controller. Up to 10 windows can show different content formats within one program. Transparent text and clock overlays are supported, together with playback scheduling by week, hour and minute and hierarchical program management.
The font library supports multiple languages, including English, simplified and traditional Chinese, Japanese and Korean. External communication components for GPRS/CDMA, ZigBee and RF are described separately in the specifications. A custom-development interface, manual, demonstration program and source code are also listed.
Frequently Asked Questions
Is the GPRS module included in the price?
Yes. This product listing explicitly includes the GPRS module. Confirm the required module variant before ordering.
Is the supplied GPRS module dual-band or quad-band?
The specifications describe both variants, but this listing does not identify the supplied band variant. Ask for confirmation of the exact module for your order.
Does this GPRS package also include Ethernet and USB?
The specifications describe separate network, USB and GPRS versions. This listing confirms the GPRS module, so do not assume that the Ethernet and USB options are included.
What is the maximum screen capacity?
The listed limit is 65,536 pixels with 256 grayscale levels. Example layouts include 1024 × 64, 768 × 80, 512 × 128 and 256 × 256 pixels; match the module and scan configuration as well.
Can the C-Power5200 play AVI video?
AVI video support is listed. Use LedCenter V3.54 or above for video; the standard software requirement for other use is V3.53 or above.
