Full-Color Offline LED Display Control
The Lumen C-Power5200 is an offline controller for full-color grayscale LED displays. It supports stored programs containing AVI video, animation, images, text and clocks. This product offers selectable connection options; use the Connect Method selector to choose the required configuration.
Screen Capacity and Specifications
| Parameter | Specification |
|---|---|
| Control capacity | 65,536 pixels; full-color, monochrome and RG displays |
| Listed screen layouts | 1024 × 64, 768 × 80, 512 × 128 or 256 × 256 pixels |
| Grayscale | 256 levels |
| Total memory | 256 MByte |
| Program memory | 128 MByte |
| Font library space | 128 MByte |
| Stored programs | Up to 512 |
| Playback windows | Up to 10 per program |
| Video support | AVI video programs |
| Animation and other content | SWF, GIF, pictures, text, clocks and temperature information |
| Software | LedCenter V3.53 or above; V3.54 or above for video |
| Serial interface | RS232/RS485; maximum baud rate 115200 |
| Network version | TCP/IP interface with encrypted message transmission |
| USB version | USB flash-drive interface |
| GPRS version | Integrated dual-band or quad-band GPRS module |
| Text and picture effects | More than 60 |
| Clock and sensors | Real-time clock; digital and analogue clocks; external sensors with 32-grade brightness support |
| Infrared controller / keyboard | Program-list editing and display control |
The listed layouts are examples within the pixel-capacity limit. Check your module interface, scan configuration and screen dimensions together before choosing a replacement.
Select the Connection Method
The product selector lists Add Ethernet Port, Add USB Port, Add 2 Channel GPRS Module and Add 4 Channel GPRS Moduel. These are the store option labels. The specifications describe GPRS modules as dual-band or quad-band; confirm the exact module variant when ordering.
Do not assume all optional interfaces are supplied together. If you are looking specifically for the GPRS configuration, see the C-Power5200 with GPRS module.
Program Editing and Playback
Programs are transferred as compressed packages and decompressed on the card. Separate windows can display different content formats, with transparent text and clock overlays on pictures or video. Playback can be scheduled by week, hour and minute, and programs can be organized in a hierarchical menu.
The font library supports languages including English, simplified and traditional Chinese, Japanese and Korean. The listing also describes external communication components for GPRS/CDMA, ZigBee and RF, plus a custom-development interface, documentation, demonstration program and source code. Confirm the required components for your application.
Frequently Asked Questions
How many pixels can the C-Power5200 control?
The specified capacity is 65,536 pixels. Listed layout examples include 1024 × 64, 768 × 80, 512 × 128 and 256 × 256 pixels; module and scan configuration still need to match.
Which software version is needed for AVI video?
LedCenter V3.53 or above is listed for standard use, while video support requires LedCenter V3.54 or above.
Are Ethernet, USB and GPRS all included?
The page sells selectable connection configurations. Choose the required option in Connect Method and confirm the supplied hardware; the options should not be treated as a promise that every interface is included.
How much memory is available for programs?
Total memory is listed as 256 MByte, divided into 128 MByte for programs and 128 MByte for font libraries.
Can it show several types of content at the same time?
Yes. Up to 10 playback windows per program are listed, with different formats in separate windows. The controller also supports transparent text and clock overlays.

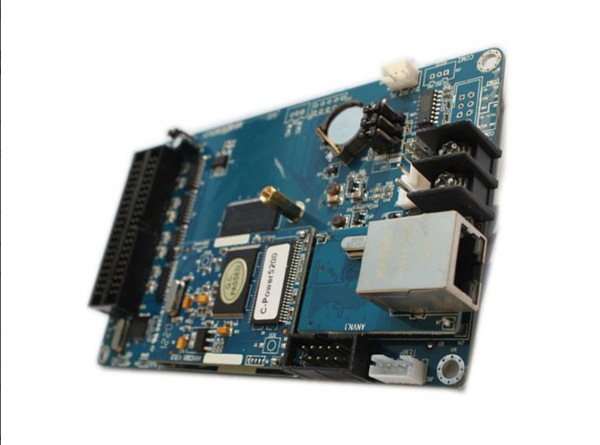

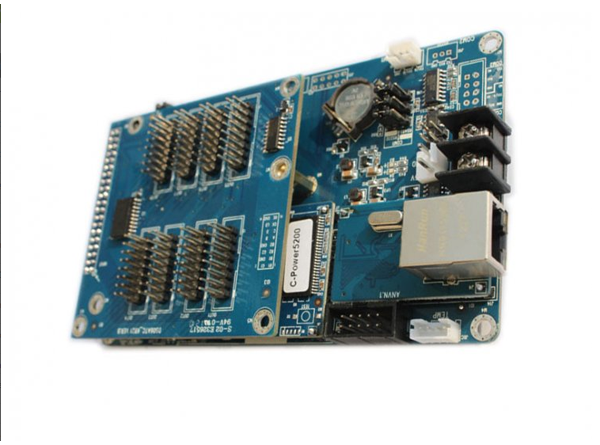

Product Images
