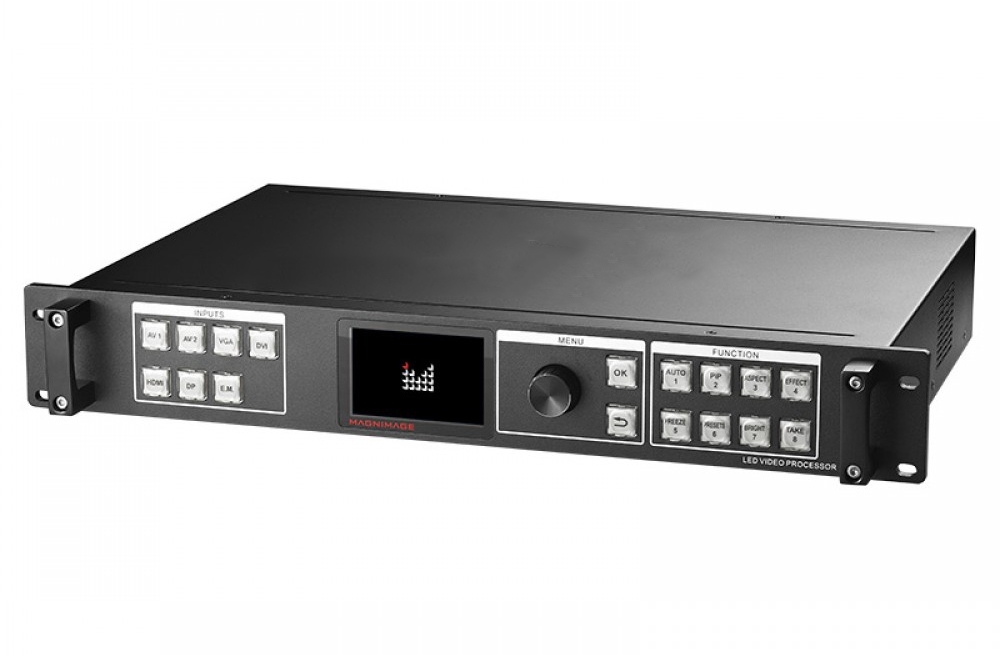

Magnimage LED 580FS 4K Big LED Display Video Processor Description:
Magnimage LED 580F 4K UHD LED Screen Video Processor is a high performance processor which has various input and output plugs, including Dual link DVI, DVI, HDMI, DP, VGA and CVBS, etc input plugs and audio input output plugs.
LED-580F series video processor supports 4Kx2k input, which can realize pixel to pixel and zoom scaling display with simplifies operating. It supports preview, hot backup, multi-machine cascade, customized output resolution, SDI output, Dual link DVI output, DP output, fade, seamless switch and schedule function.
LED-580F series video processor is used in stage shows, conference, exhibition, press conference, command & control center, surveillance center, stadium, airport.
Magnimage LED 580FS 4K Big LED Display Video Processor Main function
|
◆ 4K input/output |
◆ Fade in/fade out |
|
◆ Customize input/output resolution within 4K |
◆ 4 channel audio input(include 1 HDMI audio input) |
|
◆ Single device mosaic,dual link DVI output |
◆ Audio delay (500ms in maximum) |
|
◆ DP loop or output |
◆ Image crop function |
|
◆ Standardized 6 input |
◆ Customized output depth-width ratio |
|
◆ 1 expending port space(DVI or VGA or SDI) |
◆ Time task function |
|
◆ Dual image |
◆ Text overlay |
|
◆ Modify size and position arbitrarily |
◆ Built-in test graphic cards |
|
◆ Freeze image |
◆ Multiple machine splicing |
|
◆ Save and load mode |
◆ Hot backup |
|
◆ Image effect enhancement |
◆ Support host machine control |
|
◆ Accurate brightness control |
◆ Preview switch |
|
◆ Support series port secondary development |
◆ Support USB upgrade |
Magnimage LED 580FS 4K Big LED Display Video Processor Input Ports
| Ports | NO. | Resolution Specification |
| AV | 2 | PAL NTSC SECAM |
| VGA | 1 | VESA |
| DVI | 1 | VESA |
| DP | 1 | Displayport 1.1/1.2 |
| HDMI | 1 | HDMI 1.3/1.4 |
| SDI | 1 | 3G SDI |
Magnimage LED 580FS 4K Big LED Display Video Processor Output Ports
| NO. | Resolution Specification | |
| VGA | 1 |
2K×1K resolution: 1024×768/60Hz 1280×1024/60Hz 1440×900/60Hz 1280×720/50Hz 1920×1080/50Hz/60Hz 1920×1200/60Hz 2560×816/60Hz 1536×1536/60Hz 2K×1K resolution: 2560×1024/60Hz 2560×1600/60Hz 2560×1440/60Hz 1080×3840/60Hz 3840×1080/60Hz 1920×1080/120Hz 1920×1080/100Hz Customized output resolution: Horizontal resolution:max.3840 Vertical resolution:max.3840 |
| DVI | 2 | |
| DP | 1 | |
| SDI | 1 | 3G SDI |
Magnimage LED 580FS 4K Big LED Display Video Processor specification
| Power supply | 100～240V AC 50/60Hz |
| Power consumption | 40W |
| Operation temperature | 0～45℃ |
| Product dimension(L×W×H) | 482.6×301.3×66.8mm |
| Packing dimension(L×W×H) | 555.0×430.01×45.0mm |
| N.W. | 4.7kg |
| G.W. | 6.5kg |
