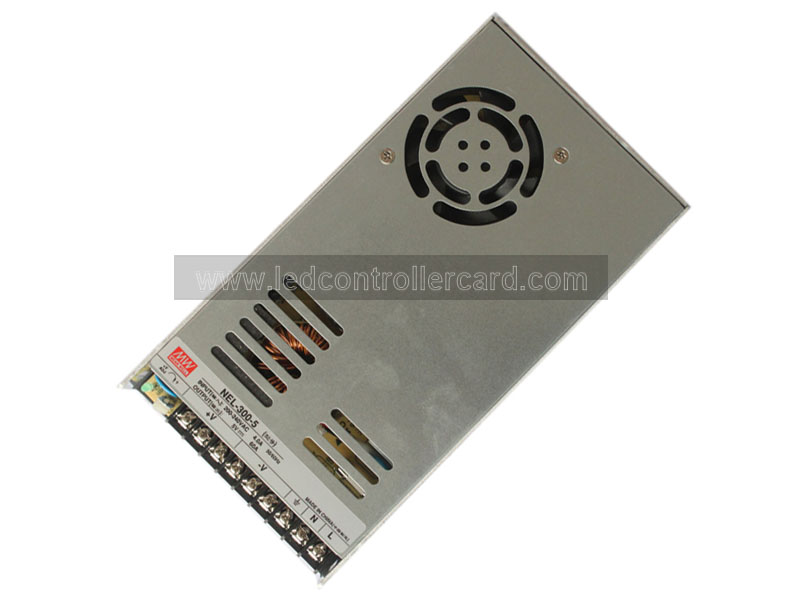

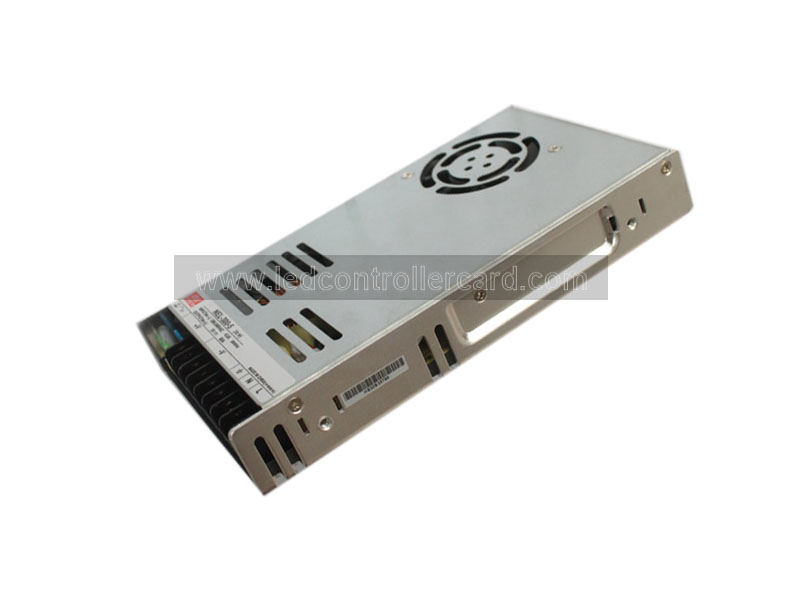

Meanwell NEL-300-5 5V60A 300W Ultra-Slim LED Display Power Supply Features:
- AC Input 180-264VAC
- Protections: Short Circuit/ Over Load/ Over voltage/ Over Temperature
- Leakage current < 1mA
- Forced Air Cooling By built-in DC fan
- Low Profile: 30mm
- Withstand 300VAC Surge Input for 5 seconds
- LED Indicator for power on
- Conformal Coating
- Low cost, high reliability
- 100% full load burn-in test
- 2 Years warranty
Meanwell NEL-300-5 5V60A 300W Ultra-Slim LED Display Power Supply Parameter:
| MODEL | NEL-300-5 | |
| OUTPUT | DC VOLTAGE | 5V |
| RATED CURRENT | 60A | |
| CURRENT RANGE | 0 ~ 60A | |
| RATED POWER | 300W | |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 4.5 ~ 5.5V | |
| VOLTAGE TOLERANCE Note.3 | ±3.0% | |
| LINE REGULATION Note.4 | ±0.5% | |
| LOAD REGULATION Note.5 | ±2.0% | |
| SETUP, RISE TIME | 2500ms, 50ms/230VAC | |
| HOLD UP TIME (Typ.) | 20ms/230VAC | |
| INPUT | VOLTAGE RANGE | 180 ~ 264VAC 254 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 86% | |
| AC CURRENT (Typ.) | 4A/230VAC | |
| INRUSH CURRENT (Typ.) | 100A/230VAC | |
| LEAKAGE CURRENT | <1mA / 240VAC | |
| PROTECTION | OVER LOAD | 105 ~ 140% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed |
||
| 5.6 ~ 7V | ||
| OVER VOLTAGE | Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|
| OVER TEMPERATURE | Shut down O/P voltage, recover automatically after temperature goes down. |
|
| ENVIRONMENT | WORKING TEMP. | -20℃~ +60℃ |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
|
| SAFETY | SAFETY STANDARDS | UL60950-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC / 25℃/ 70% RH |
|
| OTHERS | MTBF | 327.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 215*115*30mm (L*W*H) | |
| PACKING | 0.8kg;15pcs/13kg/0.78CUFT | |
Download Specification:
Meanwell NEL-300-5 5V60A 300W Ultra-Slim LED Display Power Supply Specification
