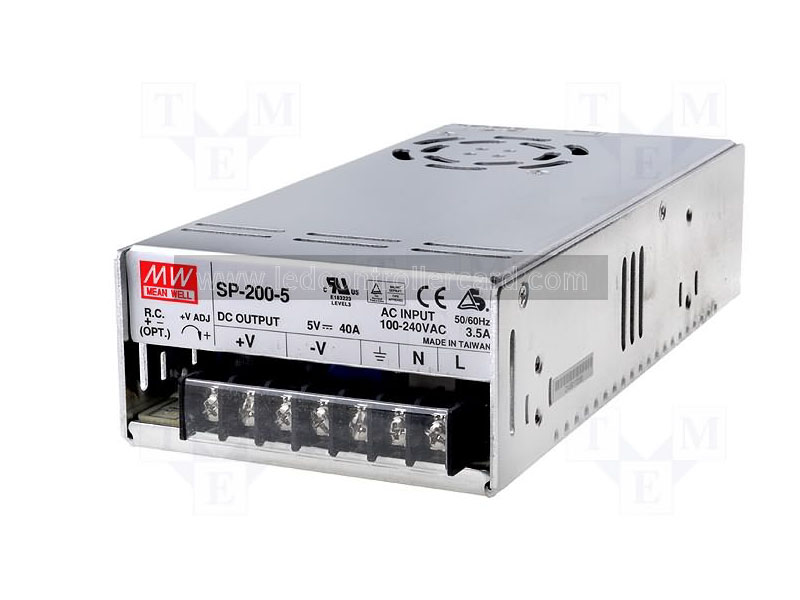

Meanwell SP-200-5 5V40A 200W Remote control EMC LED Power Supplies Features :
- Universal AC input / full range
- Built-in active PFC function, PF>0.93
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in cooling fan speed control
- Built-in constant current limiting circuit
- Built-in fan speed control
- Remote ON-OFF control(Optional)
- LED indicator for power on
- 100% full load burn-in test
- Fixed switching frequency at PFC:67KHz PWM:134KHz
- 3 years warranty
Meanwell SP-200-5 5V40A 200W Remote control EMC LED Power Supplies Parameter:
| MODEL | SP-200-5 | |
| OUTPUT | DC VOLTAGE | 5V |
| RATED CURRENT | 40A | |
| CURRENT RANGE | 0 ~ 40A | |
| RATED POWER | 200W | |
| RIPPLE & NOISE (max.) Note.2 | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | |
| LINE REGULATION Note.4 | ±0.5% | |
| LOAD REGULATION Note.5 | ±1.0% | |
| SETUP, RISE TIME | 600ms, 40ms at full load | |
| HOLD UP TIME (Typ.) | 20ms at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 76% | |
| AC CURRENT (Typ.) | 3.5A/115VAC 1.7A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 50A/230VAC | |
| LEAKAGE CURRENT | <2mA / 240VAC | |
| PROTECTION | OVER LOAD | 105 ~ 150% rated output power |
| Protection type : Constant current limiting, recovers automatically | ||
| after fault condition is removed | ||
| OVER VOLTAGE | 5.5 ~ 6.75V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | REMOTE CONTROL(OPTIO) | CN1:4 ~ 10VDC POWER ON, <0 ~ 0.8VDC POWER OFF |
| ENVIRONMENT | WORKING TEMP | -10 ~ +60℃ (Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY& EMC | SAFETY STANDARDS | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/70% RH | |
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B,EN61000-3-2,-3 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, | |
| light industry level, criteria A | ||
| OTHERS | MTBF | 183.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 199*99*50mm (L*W*H) | |
| PACKING | 0.85Kg; 20pcs/17.9Kg/1.28CUFT | |
Download Specification:
Meanwell SP-200-5 5V40A 200W Remote control EMC LED Power Supply Specification
