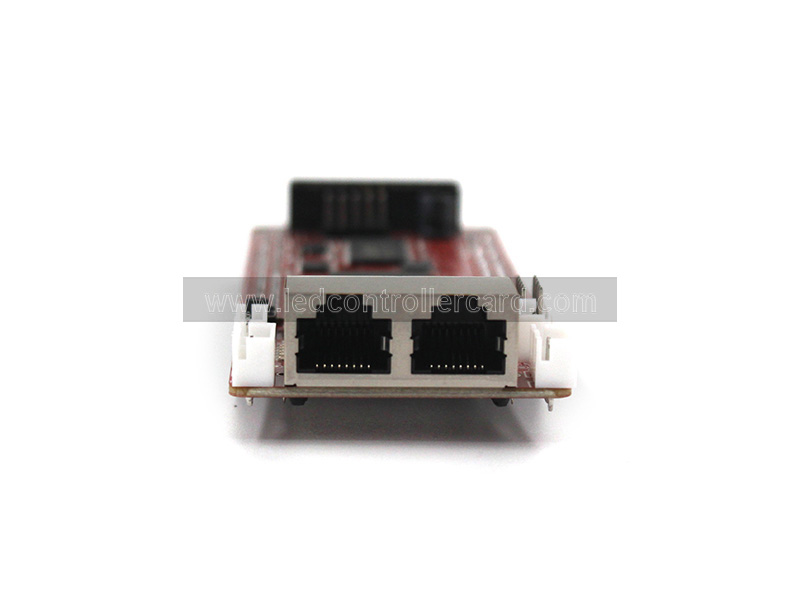

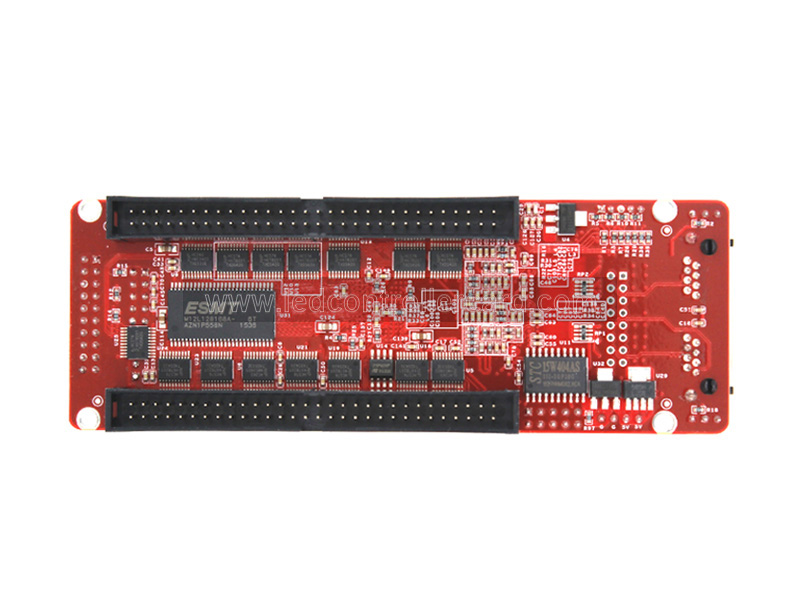

D10-270 Miniature Receiving Card for LED Panels
The XIXUN D10-270 provides data outputs for full-color LED modules together with monitoring and driver-IC control functions. Its output configuration depends on the module scan and decoding arrangement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | D10-270 |
| Type | Miniature LED receiving card |
| Data output | 24 groups of RGBR′ data |
| 28-group output condition | Listed for 1/8 scan or a smaller scan mode; the original specification states that modes beyond 1/8 require 595-decoded LED modules. Confirm the scan/decode configuration. |
| Power-voltage detection | 3 channels |
| Cabinet door detection | Open/closed detection supported |
| Temperature and humidity | Detection supported |
| Fan control / smoke detection | Supported |
| Grayscale levels | 65,536 |
| Module type | Full color |
| Scan support | Scan types within 32 scans |
| Firmware updates | Supported |
| Compliance statement | RoHS listed in the original specification |
Configuration and Monitoring
Check the module scan mode and decoder before using the 28-group arrangement. The listing includes temperature, humidity, supply-voltage, door and smoke detection plus fan control; confirm the external sensors and wiring required for each function. No numerical pixel-load limit or supply-voltage rating is established by the source text on this page.
Frequently Asked Questions
Does the D10-270 support 24 or 28 data groups?
Both are listed, but 28-group operation has scan and decoder conditions. Confirm the module’s scan mode and 595 decoding arrangement before selecting that configuration.
Which LED modules are listed for this receiving card?
Full-color modules and scan types within 32 scans are listed. Match the module wiring, driver IC and scan settings to the card.
What cabinet monitoring functions are supported?
The listing includes three-channel power-voltage detection, cabinet door detection, temperature and humidity detection, smoke detection and fan control. Required accessories and wiring should be confirmed.
Can the D10-270 firmware be updated?
Yes. Firmware-update support is listed in the original specifications.
Where can I find the D10-270 specification PDF?
The original specification download link is retained below. Confirm the hardware revision when using its connection and setup information.
Specification Download
XIXUN D10-270 Miniature LED Panel Receiving Card Specification
