Mooncell A10X compact LED receiving card
The Mooncell A10X is a compact receiving card for LED display cabinets with limited internal space. It uses high-density 120-pin connectors and supports up to 32 RGB parallel data groups. Its integrated network transformer and MCU design are intended to simplify cabinet integration.
Product specifications
The table below follows the linked A10X V3.1 specification. Maximum loading, brightness calibration and chroma calibration have separate entries so the cabinet can be planned for its intended operating mode.
| Parameter | Specification |
|---|---|
| Model | Mooncell A10X |
| Specification reference | A10X specification V3.1, 29 June 2022 |
| Data interfaces | 2 × 120-pin high-density connectors |
| Parallel data | Up to 32 RGB groups |
| Maximum loading resolution | 512 × 640 pixels |
| With brightness calibration | 512 × 640 pixels |
| With chroma calibration | 512 × 512 pixels |
| Driver types in loading table | Conventional and PWM |
| Supported scanning | 1–64 scan |
| Configuration software | Mooncell AutoLED |
| Backup functions | Network-cable loop backup; receiving-card hot backup requires customization |
Configuration and replacement checks
Before replacing a receiving card, compare the connector pinout, cabinet adapter, driver configuration and scan setting. A connector count alone does not establish compatibility with an existing installation.
AutoLED supports configuration readback and connection checks. If the installation needs dual-card hot backup or other customized functions, confirm the hardware configuration before ordering.
Frequently Asked Questions
What is the maximum loading resolution of the A10X?
The linked V3.1 specification lists 512 × 640 pixels for both conventional and PWM drivers. The same limit applies with brightness calibration; chroma-calibrated loading is listed as 512 × 512 pixels.
What connectors does the A10X use?
The specification identifies two 120-pin high-density data connectors. Compare the connector pinout and cabinet adapter board before selecting the A10X for a replacement.
Does the A10X support dual-card backup?
Yes, but the detailed specification marks receiving-card hot backup as a customized function. Confirm the required backup configuration before ordering. Network-cable loop backup is also documented.
Can I read back the card configuration in AutoLED?
Yes. AutoLED supports configuration readback, card identification, network error-rate checks and communication monitoring. These functions assist with cabinet setup and troubleshooting.
Which details should I check before replacing an existing card?
Check the exact A10X model, hardware revision, 120-pin connector mapping, module driver and scan configuration. Use the loading limit for your calibration mode and verify any customized functions with the required cabinet hardware.

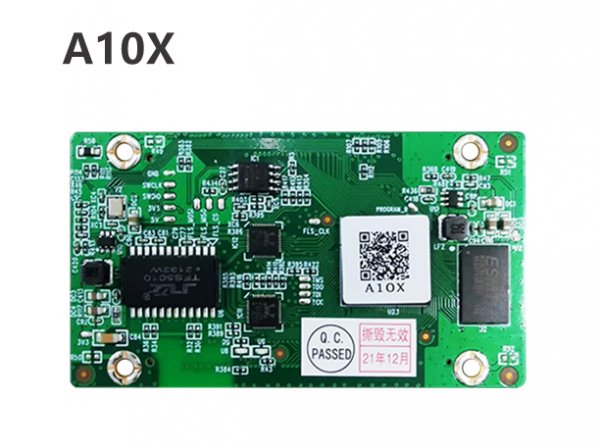

Product image and specification download
