The Mooncell C10, C12, C40, C60 and C120 LED receiving cards are options for compact display assemblies where board size, wiring and connector layout matter. The models have different interfaces and loading limits; select a card by its exact specifications.
C-series model specifications
| Parameter | Specification |
|---|---|
| Models in this listing | C10, C12, C40, C60 and C120 |
| C10 board dimensions | 85 × 12 mm |
| C10 basic parameter table | 1 data group; 512 pixels; 1–2 scan |
| C10 input voltage / rated power | DC 3.5–5.5 V / 2 W |
| C12 serial data mode | 24 groups; 8192 pixels; brightness calibration 8192 pixels; chroma calibration 4096 pixels |
| C12 parallel data mode | 8 groups; 64 × 128 pixels; brightness calibration 64 × 128; chroma calibration 64 × 64 |
| C12 scan support | 1–64 scan |
| C60 parallel data | 24 RGB groups |
| C60 maximum / calibration loads | Maximum 256 × 512; brightness 510 × 256; chroma 510 × 160 pixels |
| C60 dimensions / connector option | 72 × 29 mm; optional 2 × 30-pin, 0.8 mm board-to-board connectors |
| C60 input voltage / rated power | DC 3.5–5.5 V / 3 W |
| C40 and C120 | Confirm exact model specifications using the linked documents before selection |
The C10 introduction and parameter table give different loading figures; see the FAQ before selecting a configuration. C60 calibration dimensions above reproduce its specification exactly, including the 510-pixel values.
Planning the cabinet connection
Check the module driver, serial or parallel data mode, connector pinout and available board space. Keep the configuration file for the installed model available when replacing a card. A compact board or similar model name alone does not establish compatibility.
Frequently Asked Questions
Are C10, C12, C40, C60 and C120 interchangeable?
Do not assume interchangeability. These cards have model-specific connectors, data layouts and loading limits. Match the board dimensions, pin definitions and module wiring to the exact model.
How many pixels can the C10 receiving card load?
The C10 basic parameter table lists 512 pixels, while its introduction also mentions a 1024-pixel maximum without stating the conditions. Confirm the hardware and configuration before designing for more than 512 pixels.
What is the C12 loading capacity with calibration enabled?
In serial mode, C12 lists 8192 pixels for maximum and brightness-calibrated loading, and 4096 for chroma calibration. In parallel mode, the corresponding values are 64 × 128, 64 × 128 and 64 × 64 pixels.
Does every C-series card use a 2.0 mm connector?
No single connector pitch should be applied to the whole series. The C10 document describes a 2.0 mm connector, whereas C60 lists optional 0.8 mm board-to-board connectors. Check the exact pinout and connector type.
Which software configures the C10, C12 and C60 cards?
Their linked specifications identify AutoLED for configuration functions such as cabinet layout and image rotation. Use the software and configuration file appropriate to the exact receiving card and display module.
Card photos and specification downloads
Download Specification:

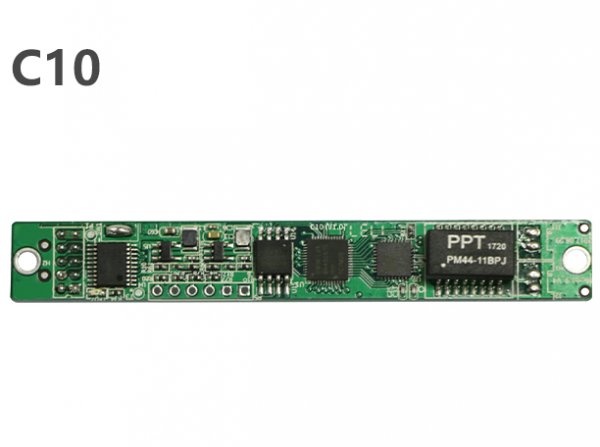

Mooncell C10 LED receiving card Specification
Download Specification:

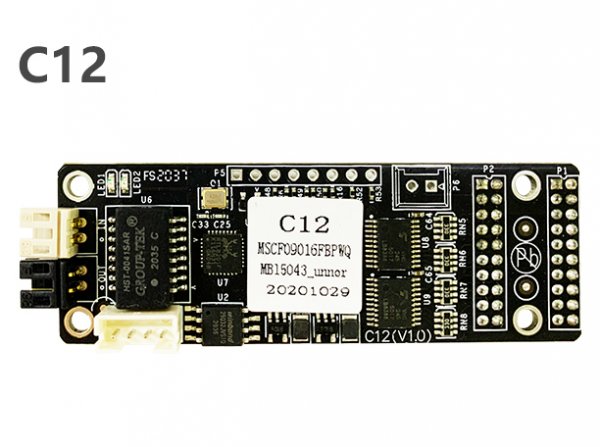

Mooncell C12 LED receiving card Specification(Chinese)
Download Specification:

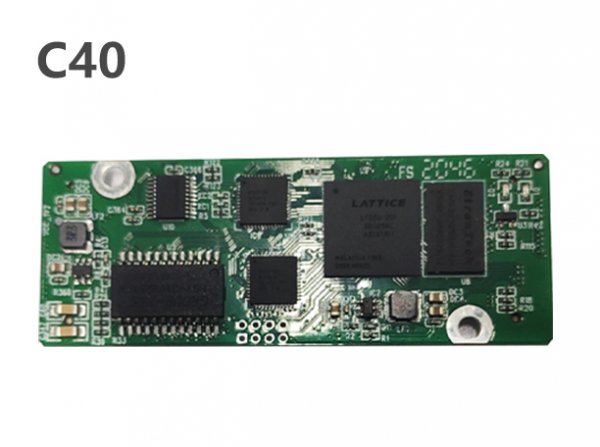

Mooncell C40 LED receiving card Specification(Chinese)
Download Specification:

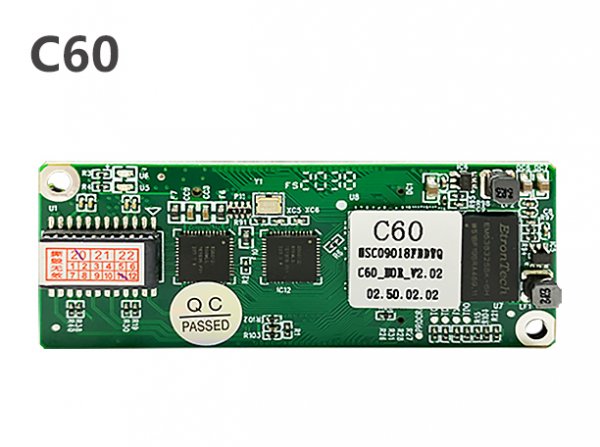

Mooncell C60 LED receiving card Specification(Chinese)

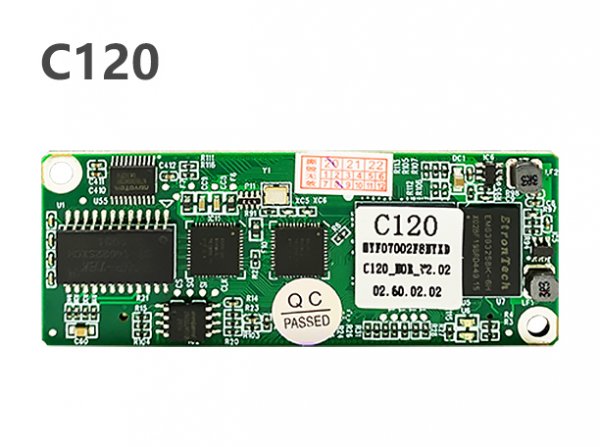

Download Specification:
