Mooncell MC75E Asynchronous LED Controller
The Mooncell MC75E integrates sending and receiving functions for multimedia LED displays. A quad-core CPU and GPU chipset drives video, image and text playback, with eight HUB75E interfaces supporting up to 16 groups of parallel RGB data.
Technical Specifications
| Parameter | Specification |
|---|---|
| Architecture | Integrated sending/receiving controller; quad-core CPU + GPU |
| Module interfaces | 8 × HUB75E |
| Parallel RGB data | Up to 16 groups |
| System | Android 7.1 |
| Connections | Ethernet, LAN/Wi-Fi and Wi-Fi hotspot |
| Control devices | PC, smartphone and tablet; Android/iOS control apps |
| Content types | Video, images, text, weather and clocks |
| Playback layout | Multiple windows with adjustable size, position and layering |
| Program updates | Cloud editing/publishing and cluster distribution; USB import or plug-and-play |
| Timing and schedules | NTP timing; scheduled playlists; synchronized multi-screen playback |
| Brightness control | RS485 interface and ambient light sensor support; manual/automatic adjustment |
| Screen power control | Remote control through relay switches |
Content Publishing and Screen Management
Use cloud editing and publishing to distribute programs to groups of displays, or update programs locally with a USB drive. Multi-window playback allows window size, position and layering to be configured. NTP timing, scheduled playlists and synchronized playback support coordinated display schedules.
The MC75E supports Ethernet, Wi-Fi and hotspot connections. Android/iOS apps, PCs, phones and tablets can be used for control. Brightness management includes manual and automatic adjustment; remote power switching uses relay switches.
Application and Compatibility Checks
Listed applications include storefront, smart light pole, vehicle, transparent, window and transportation displays. Match the module interface and scan configuration to the intended screen, and confirm the sensor and relay arrangements needed for brightness and power control.

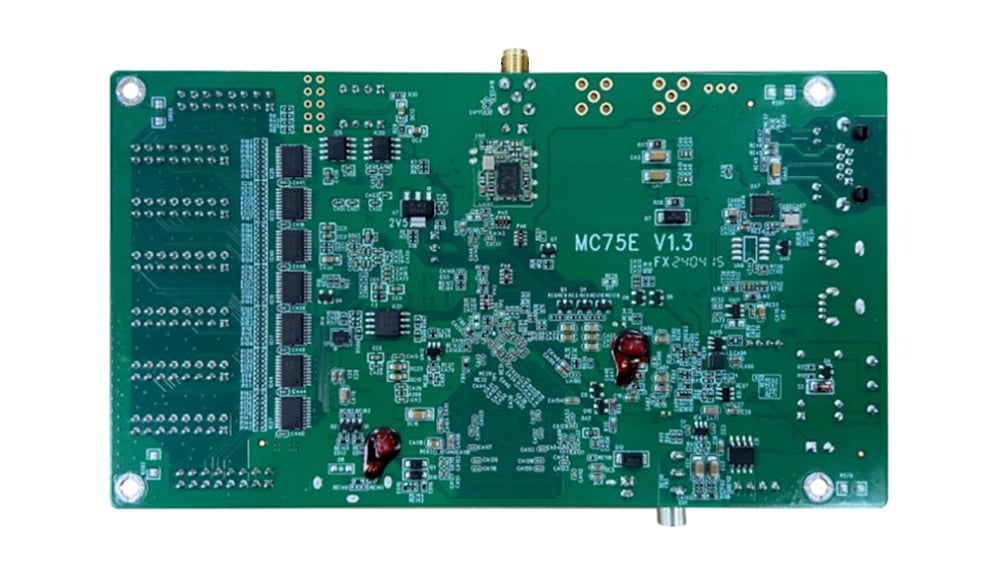

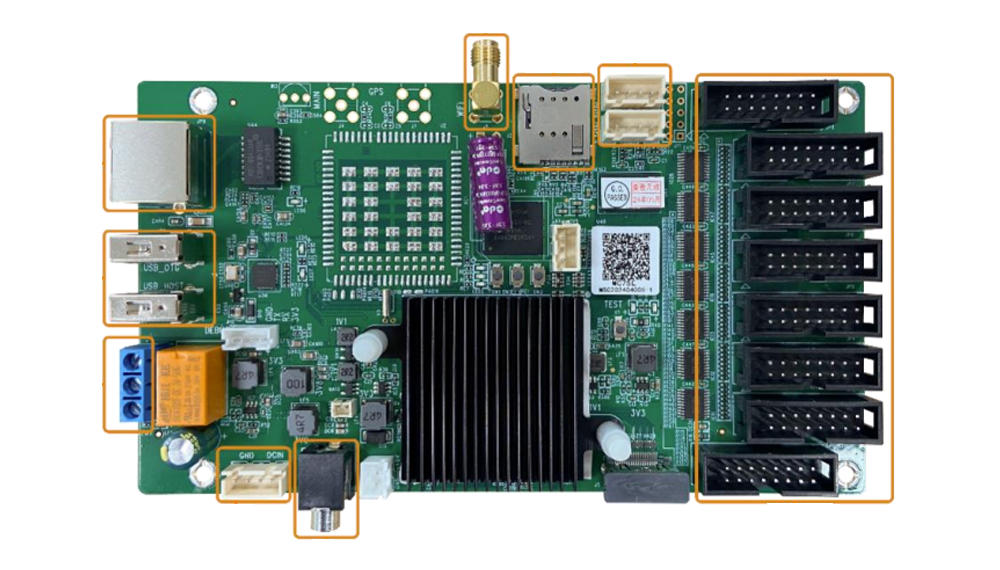

Product Images and Specification Download
Download Specification:
Mooncell MC75E Led Display Asynchronous Control Card Specification
Frequently Asked Questions
How many HUB75E interfaces does the MC75E have?
The MC75E has eight HUB75E interfaces and supports up to 16 parallel RGB data groups. Confirm the module scan settings and screen configuration before selecting it.
Can I update MC75E programs without a cloud connection?
USB drive updates support program import or plug-and-play playback. LAN and Wi-Fi networking are also supported for program control and display management.
Does the MC75E support remote content management?
Yes. Cloud-based program editing, publishing and cluster distribution are supported. Content and parameters can also be managed from PCs, smartphones and tablets.
Can the MC75E adjust screen brightness automatically?
Yes. The listed functions include manual and automatic brightness adjustment, an RS485 interface and ambient light sensor support for brightness monitoring. Confirm the sensor arrangement required for the installation.
Can the MC75E schedule playback and control screen power?
It supports scheduled playlists and NTP timing. Remote screen power control is supported through relay switches, which must be configured for the installation.
