Mooncell MP401 Network Media Player
The Mooncell MP401 is a networked media player with a 4K HDMI output for monitors and LED video processors. It combines H.265 hardware decoding, configurable playback windows and remote program management for digital signage content.
Technical Specifications
| Parameter | Specification |
|---|---|
| Video output | 1 × HDMI 2.0; 4K display output |
| Output dimensions listed | Maximum width: 3840 pixels; maximum height: 2160 pixels |
| Video decoding | H.265 hardware decoding; 4K@60Hz video sources |
| Video window configurations | Up to 2 × 4K, or 6 × 1080P, or 10 × 720P, or 20 × 360P |
| Window layout | Custom size and position; window overlay |
| Network port | 1 × 100 Mbps Ethernet input for debugging and program transmission |
| USB ports | 1 × USB 2.0 and 1 × USB 3.0 for program import and storage expansion |
| Network management | Internet, LAN and Wi-Fi remote cluster control |
| System compatibility | Android 11 |
| Playback functions | USB plug-and-play and multi-screen synchronized playback |
| Supported content | Video, images, text, documents, clocks, streams, web pages, weather, timers and promotional windows |
Playback and Program Management
Create layouts with adjustable window sizes, positions and overlays. The player supports video, images and information such as text, clocks, web pages, weather and timers. Multi-screen synchronized playback is available for installations that use coordinated content.
Programs and parameters can be managed from a computer, phone, tablet or cloud platform. Internet, LAN and Wi-Fi connections support remote cluster management, while the USB ports provide a local program-import and storage-expansion option.
Choosing the Display Connection
Connect the HDMI 2.0 output to a compatible monitor or LED video processor. The stated 4K video decoding capability describes media playback; the LED video processor and receiving-card system determine how that signal is mapped to an LED screen. The Ethernet input is listed for debugging and program transmission.

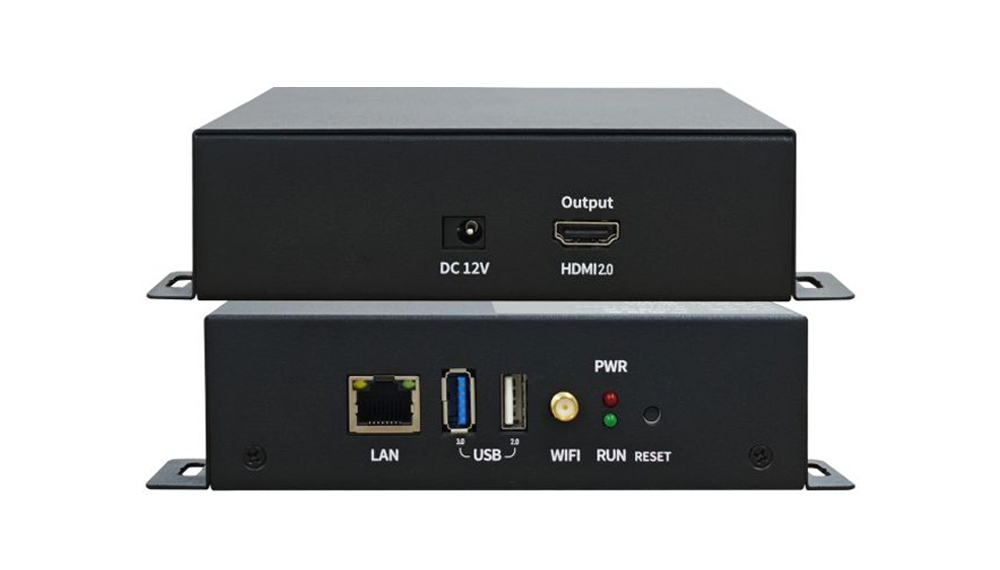

Product Image and Specification Download
Download Specification:
Mooncell MP401 Led Display Controller Series Media Player Specification
Frequently Asked Questions
Can the Mooncell MP401 play 4K video?
Yes. It supports H.265 hardware decoding of 4K@60Hz video sources and provides one HDMI 2.0 output for 4K display. The listed output limits are 3840 pixels in width and 2160 pixels in height.
Does the MP401 connect directly to LED receiving cards?
The documented display connection is its HDMI 2.0 output, which connects to a monitor or an LED video processor. Its 100 Mbps Ethernet port is specified for debugging and program transmission.
How many video windows can the MP401 play?
The listed alternatives are up to two 4K windows, six 1080P windows, ten 720P windows or twenty 360P windows. These are separate configurations, not a combined total. Window size, position and overlay can be customized.
Can I update MP401 programs remotely or by USB?
Yes. Program management is supported through computers, phones, tablets and cloud platforms, with internet, LAN and Wi-Fi connections. USB plug-and-play, program import and storage expansion are also supported.
Does the MP401 support synchronized playback on multiple screens?
Yes. Multi-screen synchronized playback is a listed function. Check the playback configuration and network arrangement for the intended installation.
