The Mooncell PC10 power supply control card is listed for single-color, dual-color and full-color LED display systems. Review its board size and supply requirements when matching an existing power-control installation.
PC10 product specifications
| Parameter | Specification |
|---|---|
| Model | Mooncell PC10 |
| Product type | Power supply control card |
| Input voltage | +3.5–6 V |
| Output power stated in listing | 7.5 W |
| Board dimensions | 144 × 92 mm |
| Display module types listed | Single-color, dual-color and full-color |
Power-control compatibility
The available description identifies the card type and basic electrical values but does not provide a wiring diagram or relay switching limits. Check the exact PC10 revision and required control connections before installation. The original photos below provide visual references for the board and connectors.
Frequently Asked Questions
What is the Mooncell PC10 used for?
PC10 is identified as a power supply control card for LED display systems. It should be selected by its power-control role and wiring requirements, not by receiving-card or video-processor specifications.
What input voltage is listed for the PC10?
The stated input range is +3.5–6 V. Confirm the board label, connector polarity and correct supply connection before installation.
What is the PC10 board size?
The listed board dimensions are 144 × 92 mm. Compare the mounting positions and connector clearance with the existing installation.
Does the 7.5 W figure specify relay switching capacity?
The source labels 7.5 W as output power. It does not identify relay contact current, mains switching voltage or channel load limits, so do not use this figure as a switching-capacity rating.
What should I check before ordering a replacement PC10?
Match the PC10 model and hardware revision, board dimensions, connector layout and power-control wiring. Request the exact wiring and switching specifications if they are needed for the application.

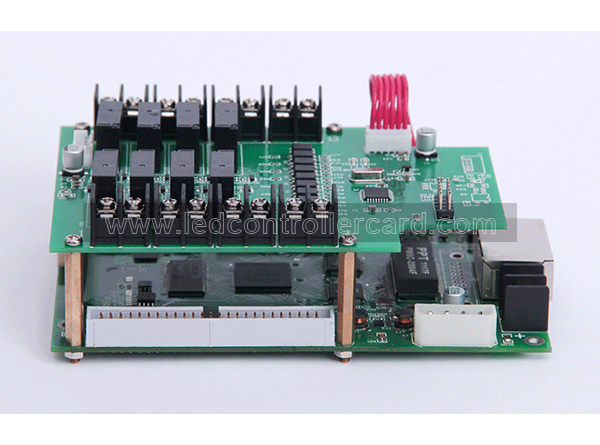

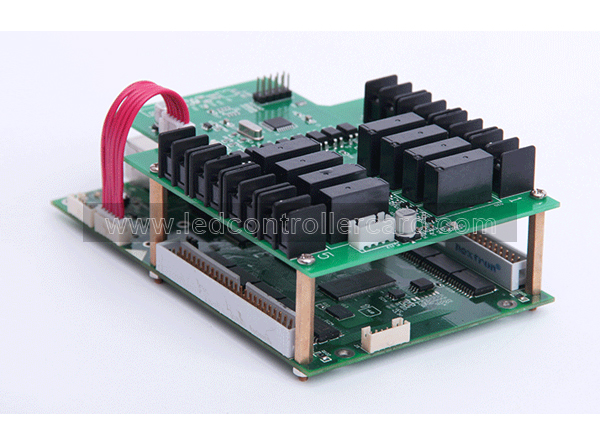

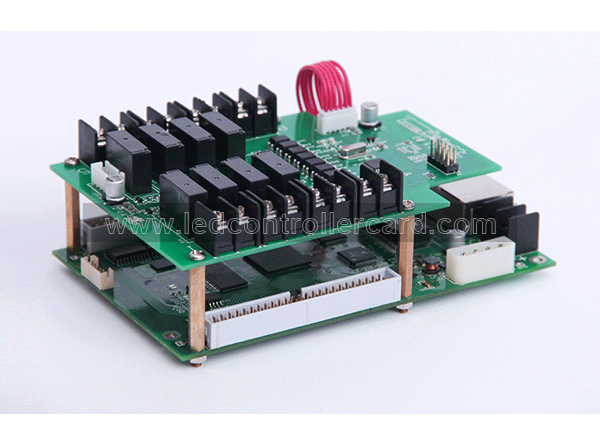

Original PC10 product photos
