| Model | Specification |
| MRV360－1 | Standard model, male connector on top |
| MRV360－2 | Male connector on bottom |
| MRV360－3 | Female connector on top |
| MRV360－4 | Female connector on bottom |

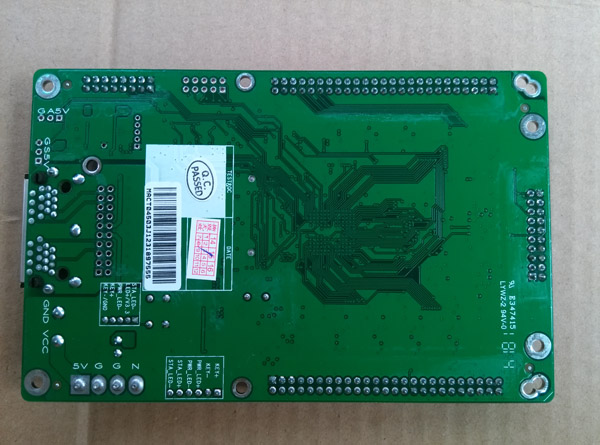

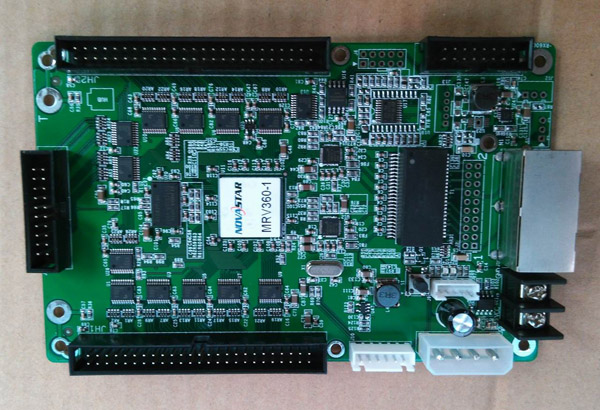

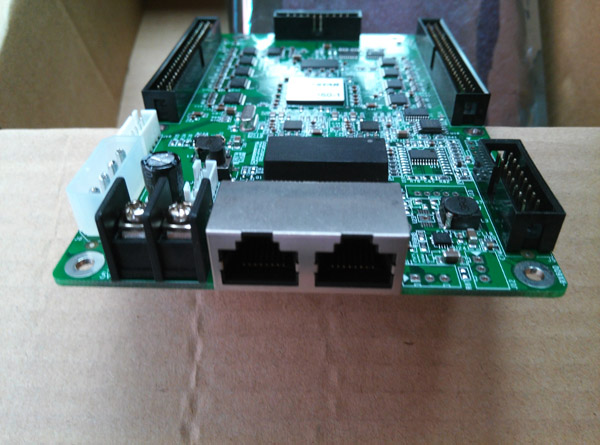

Features of NOVASTAR MRV360-1 LED Full Color Receiving Card:
NOVASTAR MRV360 is one model of Novastar full color receiving cards. It has the functions of MOM(Memory On Module),
Its functions are as follows:
1) Single card outputs 16-group of RGBR ‘data;
2) Single card outputs 20-group of RGB data;
3) Single card outputs 64-group of serial data;
4) MOM can store calibration coefficient and the led module information;
5) Single card support resolution 256×226；
6) Support configuration file readback;
7) Support program copy;
8) Support temperature monitoring.
9) Support Ethernet cable communication status detection;
10) Support power supply voltage detection;
11) Support high gray scale and high refresh rate;
12) Support pixel by pixel brightness and chromaticity calibration.
Brightness and chromaticity calibration coefficients for each LED;
13) Support pre-store picture setting;
14) Comply with EU RoHs standard;
15) Comply with EU CE-EMC standard;
