NovaStar TB20 Plus LED multimedia player
Use the NovaStar TB20 Plus to run scheduled signage or switch to a live HDMI feed. Its Gigabit LED output drives up to 650,000 pixels. The separate Fast Ethernet port is for managing the player.
Check the incoming signal and the LED canvas separately. The HDMI 1.3 input accepts up to 2048 × 1024 at 60 Hz, while an ultra-wide LED canvas can reach 8,192 pixels across within the 650,000-pixel limit. Files played from storage have their own decoding limits.
NovaStar TB20 Plus Specifications at a Glance
| Product type | LED multimedia player with playback and sending functions |
|---|---|
| LED load | 650,000 pixels |
| Canvas size | Maximum width 8192 pixels or maximum height 2048 pixels, within the total loading capacity |
| Video input | 1 x HDMI 1.3 |
| LED output | 1 x Gigabit Ethernet port |
| Audio output | 1 x stereo audio connector |
| Control ports | 1 x USB 2.0 Type-A, 1 x USB Type-B, 1 x Fast Ethernet |
| Wi-Fi | Simultaneous Wi-Fi AP and Wi-Fi STA operation |
| Playback modes | Synchronous playback, asynchronous playback, USB playback, and multi-screen synchronization |
| 4G option | Supports an optional 4G module |
Key Features and Benefits
- Integrated playback and sending: Run content and drive an LED display without a separate media player and sending device.
- Flexible content delivery: Publish and control content with a computer, phone, or tablet, or play files locally from a USB drive.
- Live and scheduled playback: Use synchronous mode for a live HDMI source or asynchronous mode for stored and scheduled programs.
- Long-format display support: Configure ultra-wide or ultra-tall LED layouts with a maximum width of 8192 pixels or height of 2048 pixels, subject to the 650,000-pixel load limit.
- Reliable network access: Use Fast Ethernet, simultaneous Wi-Fi AP and STA, or the optional 4G configuration to match the installation environment.
- Multi-screen synchronization: Coordinate playback across multiple LED screens for chain stores, public information systems, and distributed advertising networks.
- Playback security: Terminal authentication and player verification help prevent unauthorized access and content changes.
How the TB20 Plus Works
For synchronous playback, connect a live source to the HDMI 1.3 input and send the processed signal to the LED display through the Gigabit Ethernet output. For asynchronous playback, publish programs over a network or load content through the USB Type-A port. The TB20 Plus then stores and plays the program according to the configured schedule. Its USB Type-B and Fast Ethernet interfaces provide additional options for setup and device management.
Recommended Applications
The NovaStar TB20 Plus is designed for commercial LED displays and smart-city installations that need dependable local or remote content control. Typical applications include:
- Retail stores, chain stores, and shopping centers
- Digital advertising players and information displays
- Storefront, door-head, and shelf LED displays
- Lamp-post and smart-city information screens
- Fixed indoor or outdoor LED displays
- Ultra-wide ticker, ribbon, and banner-style LED screens
Choose the Right Version
This product is available as the standard NovaStar TB20 Plus or as the NovaStar TB20 Plus with 4G module. Choose the standard version when Ethernet or Wi-Fi is available. Select the 4G version for remote sites that require cellular connectivity. Network service and SIM card availability depend on the installation country and mobile operator.

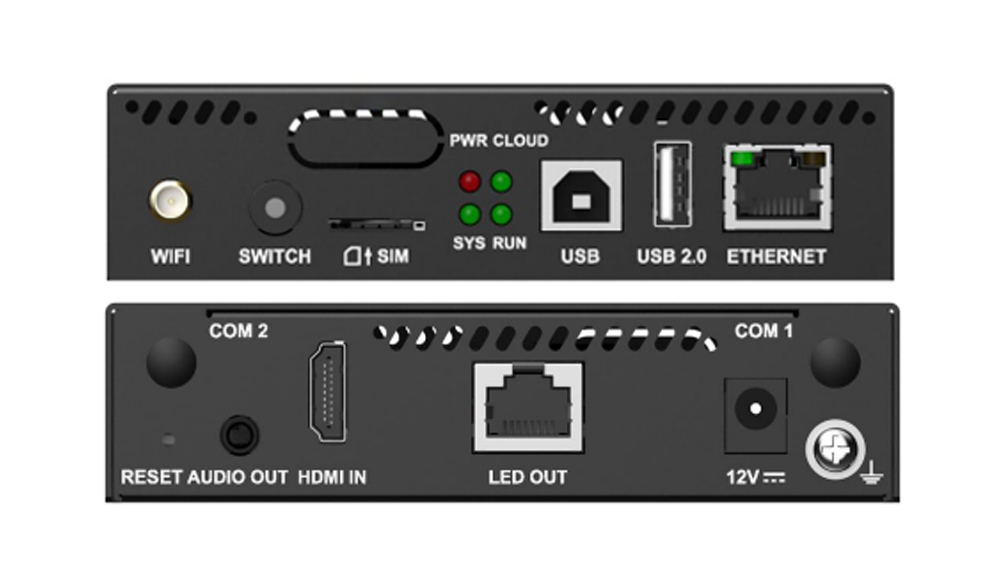

NovaStar TB20 Plus Product Views


Frequently Asked Questions
What is the NovaStar TB20 Plus?
The TB20 Plus is an LED display multimedia player that integrates content playback and sending functions. It can manage full-color LED screens in synchronous or asynchronous mode and supports up to 650,000 pixels.
What is the maximum resolution of the TB20 Plus?
The total loading capacity is up to 650,000 pixels. For ultra-long layouts, the maximum width is 8192 pixels and the maximum height is 2048 pixels. The final width and height combination must remain within the total pixel capacity.
Can the TB20 Plus play content without a live video source?
Yes. In asynchronous mode, the player can store and play published programs without a continuously connected video source. It also supports USB-drive playback for convenient local content updates.
Does the TB20 Plus support synchronous playback across multiple screens?
Yes. It supports synchronized playback across multiple LED screens, which is useful for chain stores, coordinated advertising networks, and multi-display public information systems.
Does the NovaStar TB20 Plus support 4G?
Yes. A version with a 4G module is available as a selectable option on this page. Choose the correct version before ordering; the standard unit and 4G-equipped unit are listed separately.
Where can I find the NovaStar TB20 Plus manual or specification?
Use the specification download below for the hardware functions and interface details. For compatible control software, firmware, or project-specific configuration guidance, contact our LED control specialists with your screen resolution and receiving-card information.
Download NovaStar TB20 Plus Specification
Download the NovaStar TB20 Plus LED Multimedia Player Specification (PDF)
