What Is the NovaStar TCC80?

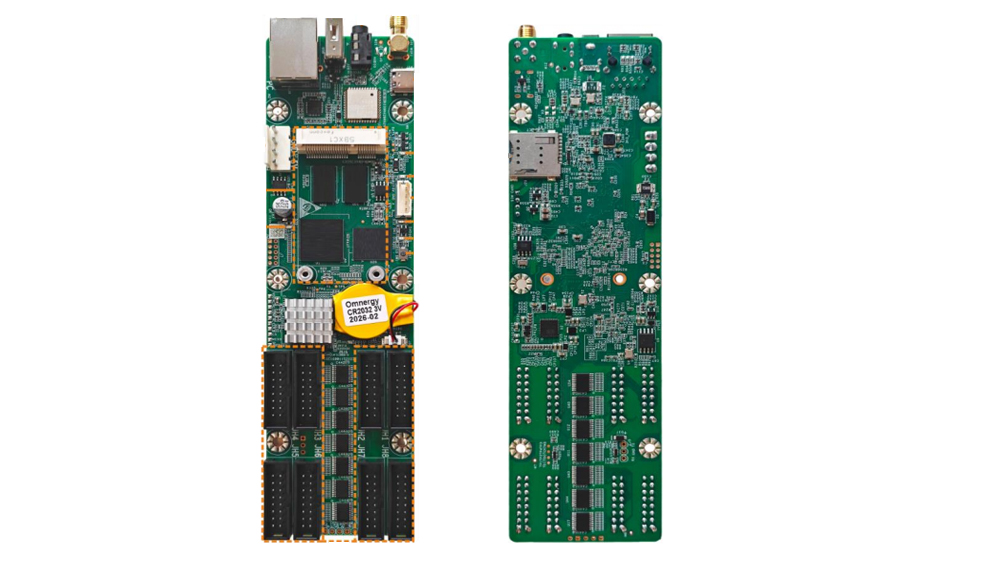

The NovaStar TCC80 is an asynchronous full-color LED display control card that combines sending and receiving functions on one compact board. It can publish and manage content from a computer, phone, or tablet through cloud-based platforms, making it suitable for remotely operated LED signs and small-format displays.
Each TCC80 supports up to 160,000 pixels. For PWM and general driver ICs, including ICN1065 and ICN1063, the maximum loading capacity is 512 x 320 pixels at 60 Hz with 8-bit color depth. Eight onboard HUB75E connectors simplify cabinet wiring and installation.
NovaStar TCC80 Key Specifications
| Product type | Asynchronous full-color LED display controller card |
|---|---|
| Maximum loading capacity | 160,000 pixels; up to 512 x 320 at 60 Hz with 8-bit depth for PWM and general driver ICs |
| Maximum width or height | Up to 2,048 pixels |
| LED module outputs | 8 standard HUB75E connectors |
| Memory and storage | 1 GB RAM + 32 GB internal storage |
| Video playback | 1080p hardware decoding and frame-synchronized playback |
| Network options | Fast Ethernet, Wi-Fi AP, Wi-Fi STA, and optional 4G module support |
| Control ports | 1 x USB 2.0 Type-A, 1 x USB 2.0 Type-C, and 1 x RS485 |
| Audio output | 1 x 3.5 mm audio output |
| Positioning and timing | Supports GPS positioning and time synchronization |
Core Features
Remote Content Publishing
Publish programs and control the LED display from an internet-connected computer, mobile phone, or tablet. Cloud-based management helps operators update dispersed screens without visiting each installation.
Flexible Network Connections
- Wi-Fi AP and Wi-Fi STA can operate at the same time for stable local and network access.
- Fast Ethernet provides a wired connection for configuration and content transfer.
- Optional 4G modules support installations where fixed internet access is unavailable.
- USB flash drives can be used for plug-and-play content and firmware upgrades.
Stable Playback and Display Control
- 1080p hardware video decoding for smooth high-definition playback.
- Frame-level synchronization across multiple screens.
- Color management, RGB gamma adjustment, and NovaStar 18bit+ support.
- 90-degree image rotation and Mapping 1.0.
- Temperature and voltage monitoring for easier maintenance.
- Firmware and configuration parameter readback.
- Dual backup for programs and configuration parameters.
Receiving Functions
The TCC80 supports up to 16 groups of parallel RGB data or 48 groups of serial data. Serial data expansion is not supported. This integrated design reduces the need for separate sending and receiving hardware in compatible small-load applications.
Recommended Applications
The TCC80 is designed for LED displays that need compact control hardware, local storage, and remote content management. Typical applications include:
- Storefront and retail LED signs
- Vehicle-mounted LED displays
- Community information screens
- Lamp-post LED displays
- Shelf and point-of-sale displays
- Cube and other compact creative LED displays
Why Choose the TCC80?
- Integrated design: Sending and receiving functions are combined on one controller card.
- Simplified cabling: Eight onboard HUB75E ports connect directly to compatible LED modules.
- Remote operation: Manage programs and screen status from connected devices through supported cloud platforms.
- Multiple connection methods: Use Wi-Fi, Ethernet, USB, or an optional 4G module according to the installation environment.
- Maintenance tools: Monitoring, readback, mapping, and backup functions help reduce service time.
Compatibility Notes
Confirm the LED module driver IC, scan configuration, required pixel capacity, and HUB75E pin mapping before ordering. The stated 512 x 320 at 60 Hz capacity applies to supported PWM and general driver ICs, including ICN1065 and ICN1063. Actual configurations depend on the LED module and screen design.
Frequently Asked Questions
What is the maximum loading capacity of the NovaStar TCC80?
The TCC80 supports up to 160,000 pixels. With supported PWM or general driver ICs, it can load up to 512 x 320 pixels at 60 Hz with 8-bit color depth.
Does the TCC80 work without a continuously connected computer?
Yes. It is an asynchronous controller with internal storage, so saved programs can play without a computer remaining connected. Content can be published through supported network or USB workflows.
Can the TCC80 connect through Wi-Fi and 4G?
Yes. It supports simultaneous Wi-Fi AP and Wi-Fi STA operation and can work with an optional 4G module. A Fast Ethernet port is also available for wired networking.
How many HUB75E ports does the TCC80 have?
The board has eight standard HUB75E output connectors for direct connection to compatible LED display modules.
Can multiple TCC80-controlled screens play in sync?
Yes. The TCC80 supports synchronized playback across multiple screens and GPS-based positioning or time synchronization for supported deployments.
Download the TCC80 Specification
Review the detailed product document before finalizing your LED screen configuration:
Download the NovaStar TCC80 asynchronous LED display control card specification (PDF)
Manufacturer reference: NovaStar TCC160/TCC80 product page.
