P3.91-7.82 1000×500 Transparent LED Screen Notice before order:
1) Parts included: waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
P3.91-7.82 1000×500 Transparent LED Screen Application:

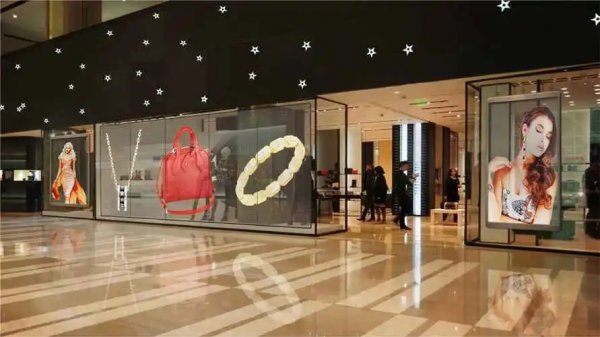

Features: Transparent Window LED Display is designed to meet the requirement that LED Display should be Transparent, so that people can watch the things behind the LED Display. And it also have all the feature that the normal LED Display has, that means it can display dynamic digital sources like commercial brand name, logo, slogon, and even advertisement film to catch the attention of the potential consumer. The Transparent LED Display is always installed inside the glass wall of the building or the street side shop/store. It can be a small size for 2sqm to a big one that reaches hundreds of sqm..
Video of P3.91-7.82 1000×500 High Brightness Transparent LED Screen :
P3.91-7.82 1000×500 High Brightness Transparent LED Screen Parameter:
| Module Parameter | |
| Pixel Pitch | 3.91mm(H);7.82mm(V) |
| Pixel Configuration | SMD1921 |
| Density | 32,768 pixels/㎡ |
| Module Resolution | 128pixel(L) *16pixel(H) |
| Module Dimension | 500mm(L) * 125mm(H) |
| Driving Mode | Constant current, 1/8 duty |
| LED Cabinet | |
| Module Quantity in a Cabinet | 2(L) *4(H) |
| Cabinet Dimension | 1000（L）*500（H）* 75(D)mm |
| Cabinet Resolution | 256 pixel(L) * 64 pixel(H) |
| Cabinet Material | Die-cast Aluminum |
| Cabinet Weight | ≈6KG |
| Maintenance Mode | Back Maintenance |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥4,500 cd/㎡ |
| Viewing Angle | 120°(Horizontal)； 120°(Vertical) |
| Best Viewing Distance | ≥4m |
| Gray Grade | 14 bits |
| Display Color | 4.4 trillion Colors |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Operation Power | AC100-240V 50-60Hz Switchable |
| Max. Power Consumption | 800 W/㎡ |
| Avg. Power Consumption | 220W/㎡ |
| Control System | |
| Frame Frequency | ≥60Hz |
| Refresh Frequency | ≥3,000Hz |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100m(Ethernet cable); |
| 20KM(optical fiber cable) | |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
| Reliability | |
| Working Temperature | -20～+60 ºC |
| Storage Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Operating Time | ≥72 hours |
| Protection Grade | IP33 |
| Out-of-Control Pixel Rate | ≤0.01% |
EA1000TiR Series Indoor Rental Transparent LED Display
EA1000TiR series transparent rental LED display for rental application with quick set-up, super high permeability,
ultra-thin Ultra-light structure design, high precision,modularized design, more than 70% transparency, easy installation and disassamble.
500*1000mm Lightweight cabinet
Die-cast aluminum cabinet, transparent structure, the weight is only 7.5kg/pcs, Cabinet size：1000 x500mm
70% High Transparency
70% transparency, greatly reduce wind resistance, better cooling effect, without affecting the indoor vision
Perfect Structure
Stable and reliable screen body with good heat dissipation effect.
The screen can be hung or mounted on the window. Multi-screen interaction.
Easy to Install
Stacking, hanging and fixed installations are supported.
Download Specification:
P3.91-7.82 1000×500 High Brightness Transparent LED Screen Specification
