P6 Outdoor SMD High Definition Rental LED Display 576X576 Notice before order:
1) Parts included: waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tarrif: Our price does not include any tarrif or duties at the destination, you should do import customs clearance and pay all tarrif or duties locally.

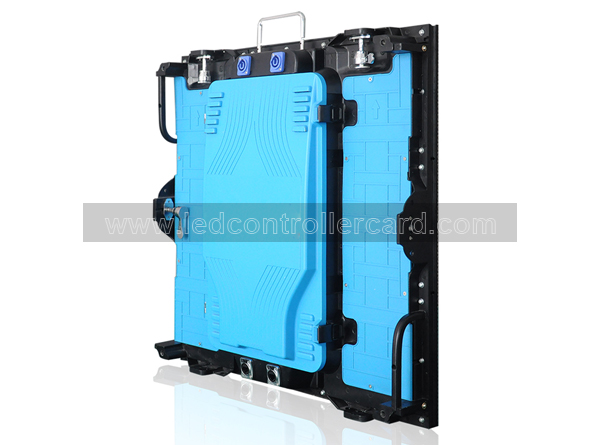

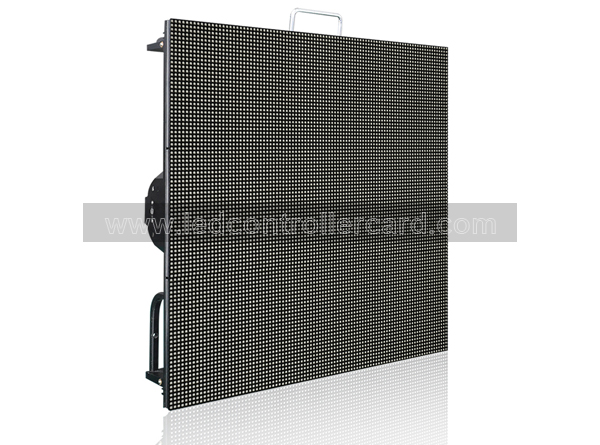

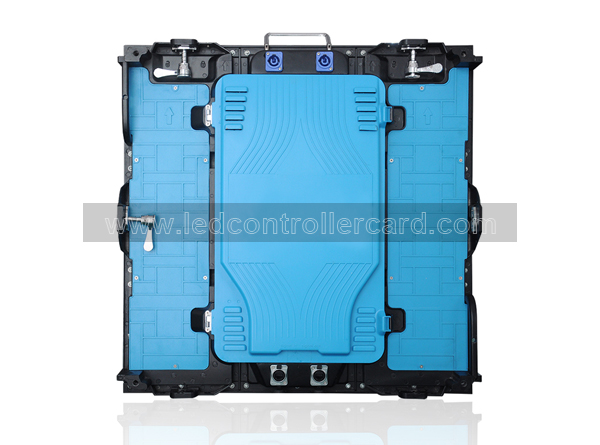

Features of P6 SMD Outdoor Die-cast Aluminum Cabinet:
1) Slim cabinet, only 92mm thick.
2) Light weight, only 10KG per pcs of 576x576mm outdoor cabinet.
3) Non-gaps between cabinets, due to accurate-made die-cast aluminum cabinet.
4) Fast lock design, good for rental hanging use.
5) IP65 for front side and IP54 for rear side, it’s fit for outdoor rental application .
Applications of P6 SMD Outdoor Die-cast Aluminum Cabinet:
Outdoor rental LED panel
Outdoor fixed installation LED panel requires slim cabinet and perfect screen flatness
Parameters of P6 SMD Outdoor Die-cast Aluminum Cabinet:

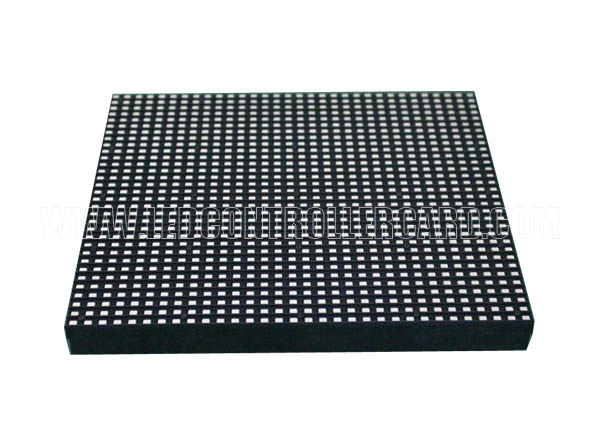

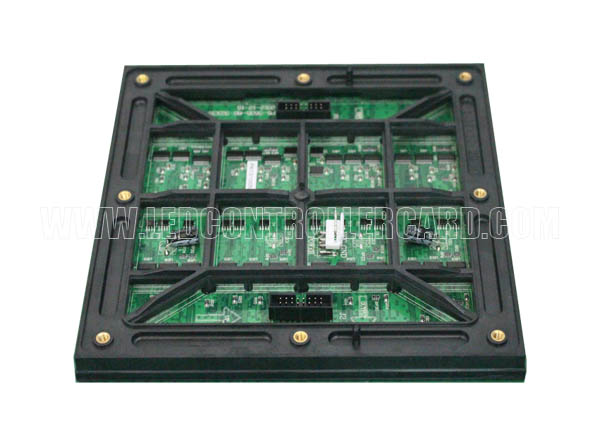

| LED Module | |
| Pixel Pitch | 6 |
| Pixel configuration | SMD3535 1R1G1B |
| Density | 27,778 pixels/㎡(real pixel) |
| Module Resolution | 32(L) * 32(H) |
| Module Dimension | 192(L) * 192(H) * 20(D) |
| Driving Mode | Constant current, 1/8duty |
| Module Mask | Pure Black Mask -High Contrast Screen |
| LED Cabinet | |
| Module Quantity in a Cabinet | 3(L) *3(H) |
| Cabinet Dimension | 576（L）* 576（H）* 92(D)mm |
| Cabinet Resolution | 96(L) *96(H) |
| Cabinet Material | Die-Cast Magnesium |
| Cabinet Weight | ≈10KG |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥6,500 cd/㎡ |
| Viewing Angle | 120° |
| Best Viewing Distance | ≥2.5m |
| Gray Grade | 16,384 levels for each color |
| Display Color | 4,398,046,511,104 |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Power Supply | |
| Operation Power | AC100-240V 50-60Hz Switchable |
| Max. Power Consumption | 950W/㎡ |
| Average Power Consumption | ≈350W/㎡ |
| Control System | |
| Correction Scale Level | 16bits |
| Frame Frequency | ≥60Hz |
| Screen Refresh Frequency | ≥1920Hz |
| Gamma Correction | -5.0～5.0 |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100m(Ethernet cable); 10KM(optical fiber cable) |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
| Reliability | |
| Working Temperature | -20～+60 ºC |
| Stored Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥72 hours |
| Protection Grade | IP65(Front Side); IP54(Rear Side) |
| Out of Control Pixel Rate | ≤0.01% |
Download:
P6 Outdoor Rental LED Display Die-Cast Magnesium 576X576mm Rental LED Screen Panel Specification
