P8 Outdoor 1/4Scan 32X16dot 256x128mm LED Display Screen Module
P8 Outdoor 1/4Scan 32X16dot 256x128mm LED Display Screen Module Features:
1) Small pixel pitch 8mm for SMD outdoor LED display, good solution for outdoor rental LED display and outdoor fixed installation LED display.
2) Kinglight SMD3535 LED lamps, high reliability.
3) High cost-effective LED module for outdoor LED display.
4) Reasonable PCB design with good heat radiation and achieve long life span.
5) Good constant current driver IC, ensuring the consistency and stability of the whole screen.
P8 Outdoor 1/4Scan 32X16dot 256x128mm LED Display Screen Module Parameters:
|
LED Lamp Specification |
||||||
| Color | Package | Intensity | Viewing angle | Wavelength | Testing condition | |
| Red |
SMD3535 |
800-1100mcd |
120 |
620-625nm |
25℃,20mA |
|
| Green |
1600-2250mcd |
120 |
515-530nm |
25℃,20mA |
||
| Blue |
350-500mcd |
120 |
465-475nm |
25℃,20mA |
||
|
Module Parameter |
||||||
| Pixel Pitch | 8mm | |||||
| Pixel configuration | SMD3535 | |||||
| Density | 15,625 pixels/㎡(real pixel) | |||||
| Module Resolution | 32pixel(L) * 16pixel(H) | |||||
| Module Dimension | 256mm(L) * 128mm(H) * 25mm(D) | |||||
| Driving Mode | Constant current, 1/4 duty | |||||
| Module Mask | Pure black mask—high contrast screen | |||||
|
Electricity Parameter |
||||||
| Optical Ratings | ||||||
| Brightness | ≥6,500 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
| Best Viewing Distance | ≥8m | |||||
| Gray Grade | 16,384 levels for each color | |||||
| Display Color | 4.4 Trillion Colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Max. Power Consumption | 25 W | |||||
| Control System | ||||||
| Correction Scale Level | 12bits | |||||
| Frame Frequency | ≥60Hz | |||||
| Screen Refresh Frequency | ≥1,920Hz | |||||
| Gamma Correction | -5.0～5.0 | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable);
20KM(optical fiber cable) |
|||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Stored Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Working Time | ≥72 hours | |||||
| Protection Grade | IP65 | |||||
| Out of Control Pixel Rate | ≤0.01% | |||||

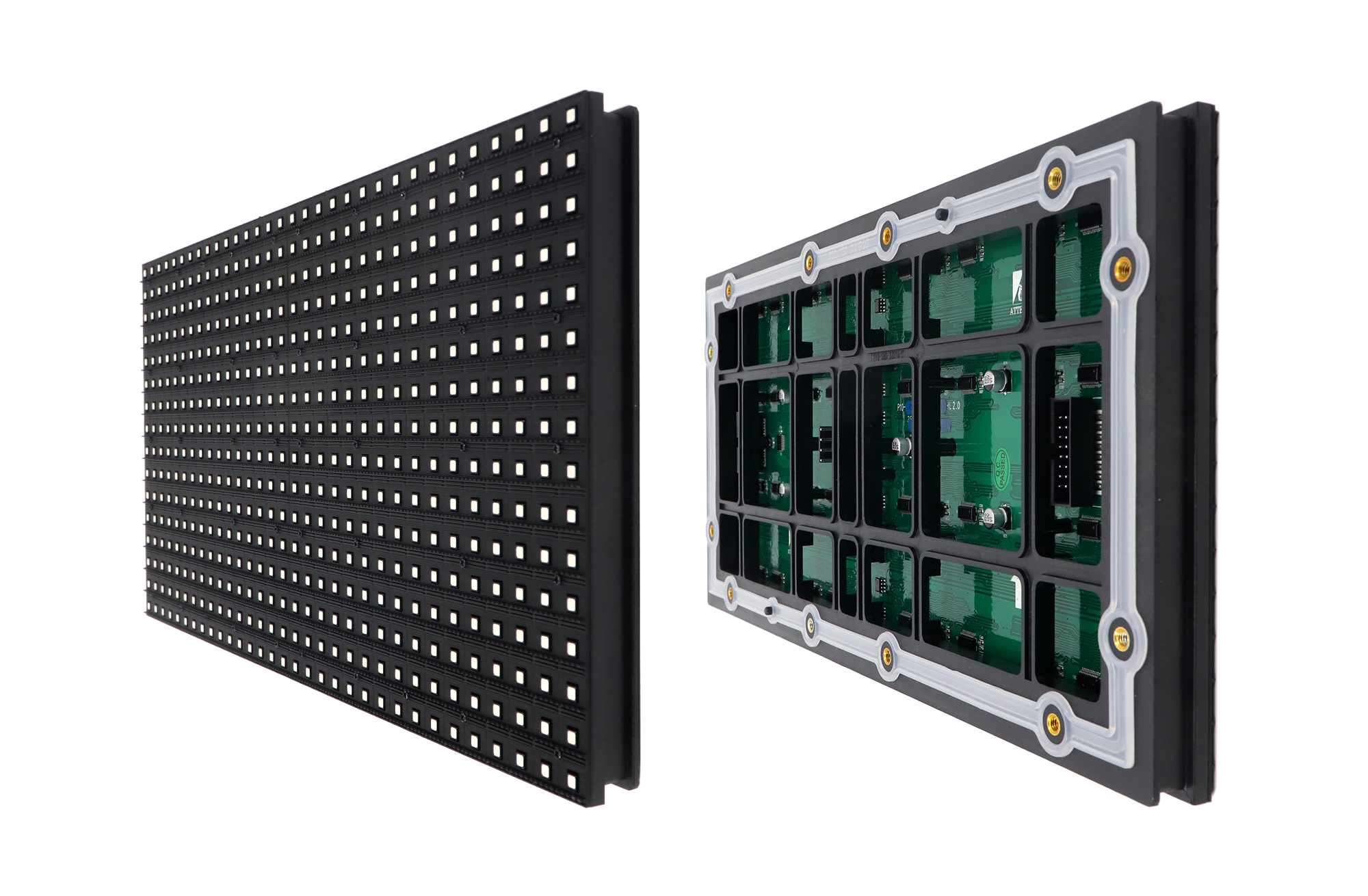

More Pictures of P8 Outdoor SMD3535 256x128mm LED Display Screen Module
