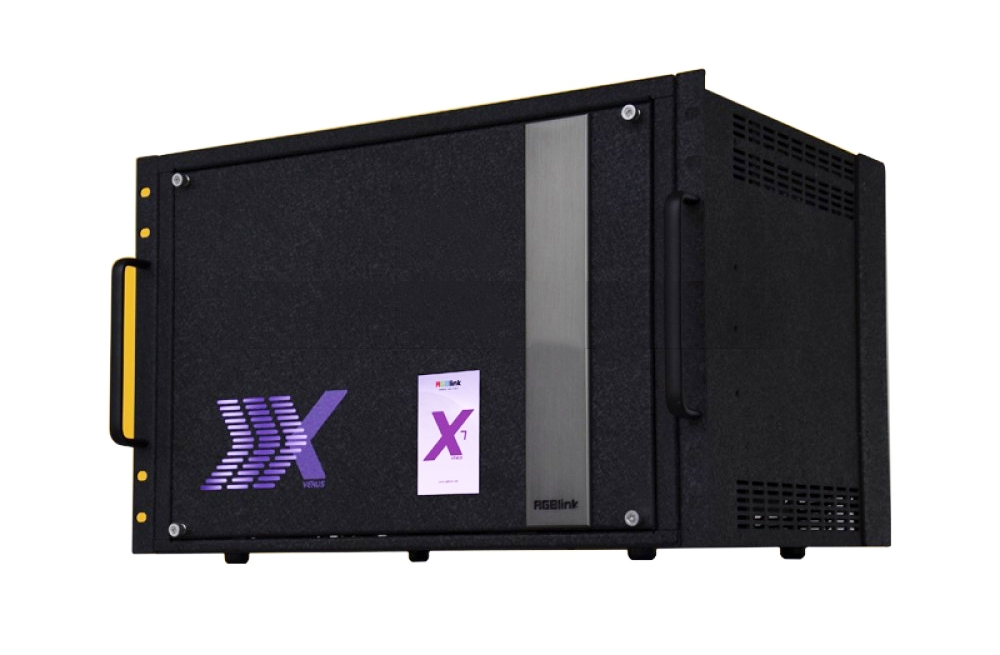

RGBlink VENUS X7 LED video splicing
The VENUS X7 supports seamless matrix switching and configurable video wall outputs. SmartSlot modules provide signal choices for 2K and 4K sources, while DSK, chroma key and OSD support subtitles and messages. Redundant hot-swap power is an option.
Configuration and specification references
| Parameter | Specification |
|---|---|
| Matrix / router | Up to 32 × 32 |
| Input slots | 8; up to 32 inputs depending on modules |
| Output slots | 8; up to 32 outputs depending on modules |
| Output splicing | Up to 64 megapixels |
| Layers — original listing | Up to 128 |
| Layers — attached X7 V1.6 and X7e V1.3 PDFs | Up to 64; confirm the applicable model and configuration |
| Processing | 12-bit; 4:4:4 color space |
| Functions | DSK/chroma key; OSD; automatic temperature control; scheduled power and remote activation |
| Communication | LAN, RS232 and USB; Genlock/Sync |
| Power slots | 2; original table states one PSU fitted as standard |
| Power input | AC 100–240V, 50/60Hz |
| Maximum power — original table | 400W |
| Maximum power — attached X7 V1.6 PDF | 1200W; confirm the supplied unit rating |
| Operating temperature / humidity | 0–55°C / 10–90% RH |
Model and revision check: This listing includes separate X7 and X7e specification PDFs. Their supported module sets are not identical. The original page also differs from the attached documents on layer count and from the X7 PDF on maximum power. Both source values are shown above so they are not mistaken for confirmed interchangeable ratings. Contact us for the exact module configuration and quotation.
Frequently asked questions
Is VENUS X7 the same configuration as X7e?
Do not treat them as interchangeable. Separate X7 and X7e PDFs are provided, and their available module sets differ. Confirm the model being supplied.
How many layers does this X7 support?
The original listing states 128 layers, but the attached X7 V1.6 and X7e V1.3 specifications state up to 64. Confirm the applicable hardware and operating mode before designing the layout.
Are 32 inputs and 32 outputs always included?
No. Those are maximum capacities across eight input and eight output slots. Actual port counts depend on the modules selected.
Which power rating should I use?
The original table states 400W, while the attached X7 V1.6 PDF lists 1200W maximum power. Verify the supplied unit rating; do not use the lower figure without confirmation.
