SheenColor W1 for Local Wireless LED Sign Management
The SheenColor W1 lets an operator manage LED sign programs from a phone, tablet or computer connected to its WiFi hotspot. Its browser/server architecture provides a local browser interface without requiring a separate server, internet access or software installation for that workflow.
SheenColor W1 Specifications
| Parameter | Specification |
|---|---|
| Controller type | WiFi asynchronous LED control card |
| Wireless module | Integrated WiFi |
| User interface | Browser-based; interface follows LedCloud |
| Communication listed | Network access, USB flash drive and WiFi |
| Grayscale | 65,536 levels |
| Operating terminals | Windows, Android and iOS |
| Supported display functions | Automatic brightness adjustment and real-time temperature/humidity display |
Planning a W1 Installation
Use the local hotspot connection when updating the sign from a nearby operating device. Check the exact controller revision, module wiring and supported screen dimensions when replacing an existing card. The available W1 description does not specify a maximum pixel capacity or input voltage.
Confirm which sensors are needed for brightness adjustment and temperature or humidity display, and whether they are included in the selected configuration.

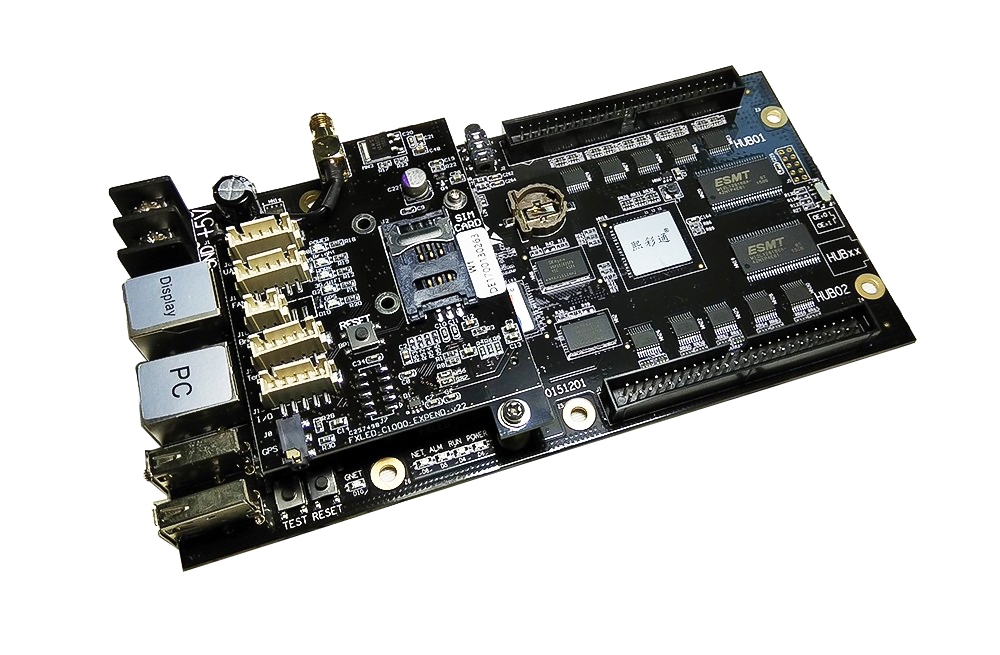

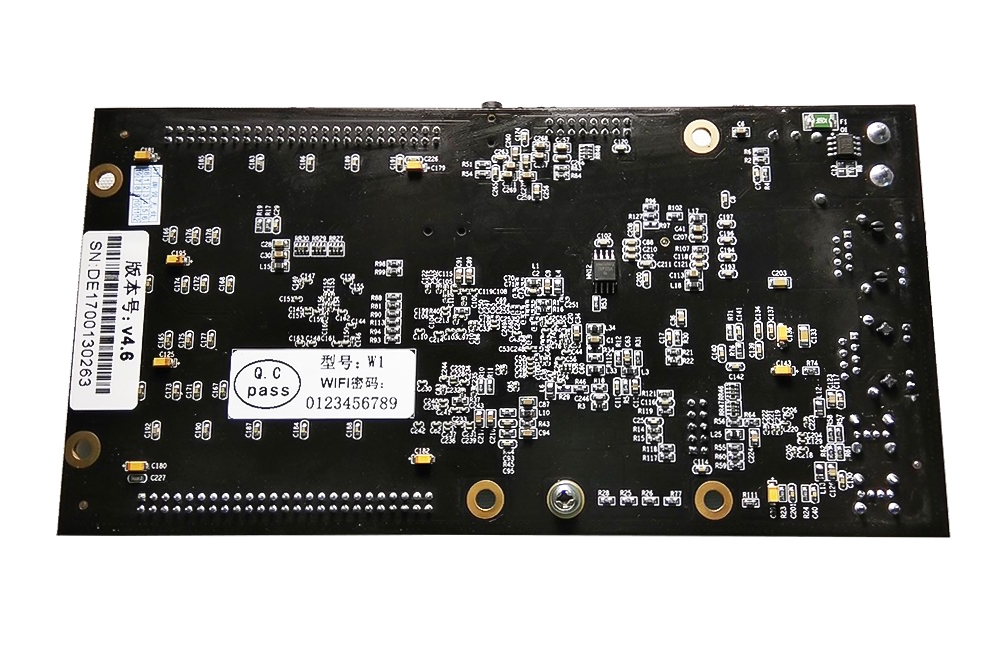

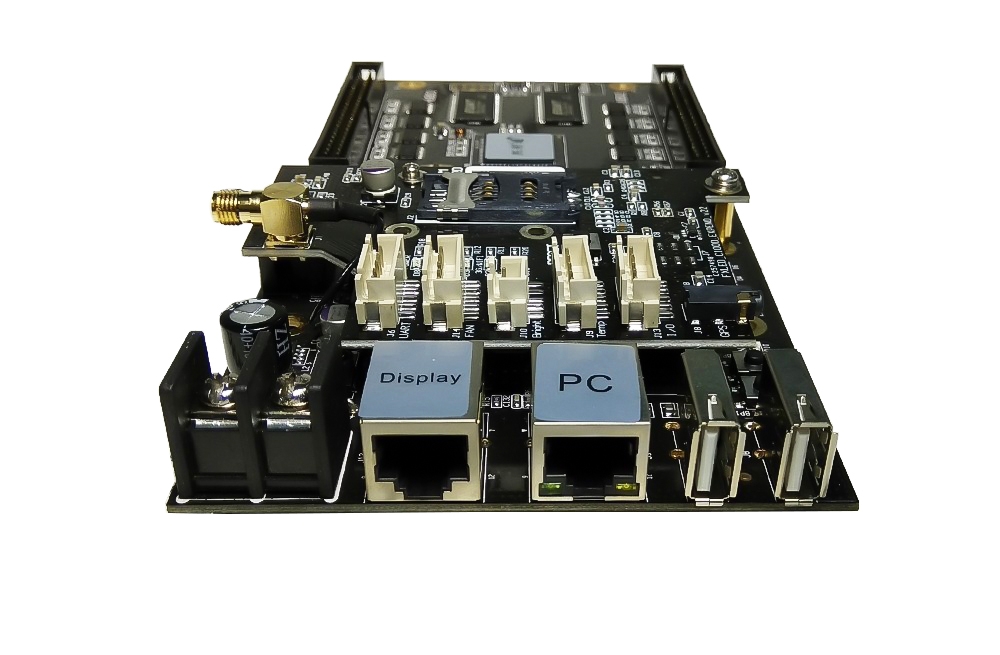

W1 Product Photos
Frequently Asked Questions
How do I access the W1 program-management interface?
Connect a supported phone, tablet or computer to the W1 WiFi hotspot, then use its browser-based interface. Obtain the connection details supplied with the controller.
Does local W1 management require a cloud server?
The described hotspot workflow does not require a separate server or internet connection.
Which operating systems are listed for the W1?
Windows, Android and iOS terminals are listed for control and program management.
Is 65,536 the W1 pixel capacity?
No. In the available W1 description, 65,536 refers to grayscale levels. Maximum pixel capacity is not specified there.
Can I update the W1 using a USB flash drive?
Yes. USB flash drive communication is listed in addition to WiFi and network access.
