NDA200PS5 5V Power Supply with Active PFC
The South Creative NDA200PS5 is a single-channel +5.0V power supply module for LED displays. The V1.0 specification identifies 5V/40A output and a maximum output power of 200W. Its 100–240VAC input range supports installations using different nominal mains voltages.
Product Specifications
| Parameter | Specification |
|---|---|
| Document | V1.0, dated 2020-09-05 |
| Output channels | Single output |
| Nominal DC output | +5.0V / 40A |
| Maximum output power | 200W |
| AC input | 100–240VAC |
| Power factor correction | Active PFC (APFC) |
| Listed power factor | ≥0.95 |
| Cooling | Natural air cooling |
| Protection functions | Input undervoltage, output overcurrent, short circuit and IC over-temperature |
| Storage temperature | −40 to +80°C |
| Operating relative humidity | 10–90%, non-condensing |
Choosing a Replacement
Confirm the full NDA200PS5 model code, the LED module voltage and the cabinet current demand. Compare mounting positions and the AC/DC terminal layout before ordering. For help matching an existing supply, contact us with a clear label photograph.
The document overview lists −30 to +70°C operation, while the environment table gives −30 to +50°C and a separate high-temperature derating note. Confirm the permissible load at your cabinet temperature; do not treat the overview upper limit as an unconditional full-load rating.
Frequently Asked Questions
What is the output rating of the NDA200PS5?
The model-specific document lists a single +5.0V output, 40A current and maximum output power of 200W.
Does it support 110V and 230V AC supplies?
Yes. Both nominal voltages fall within the listed 100–240VAC input range.
Does this supply include active PFC?
Yes. Its features specify an APFC power factor correction circuit and a power factor of at least 0.95.
What protection functions does it have?
The listed functions are input undervoltage, output overcurrent, short circuit and IC over-temperature protection.
How do I check whether it fits my LED cabinet?
Compare the existing model label, module voltage, required current, mounting points and terminal layout. The original PDF below provides model-specific reference information; contact us if you need a replacement match.

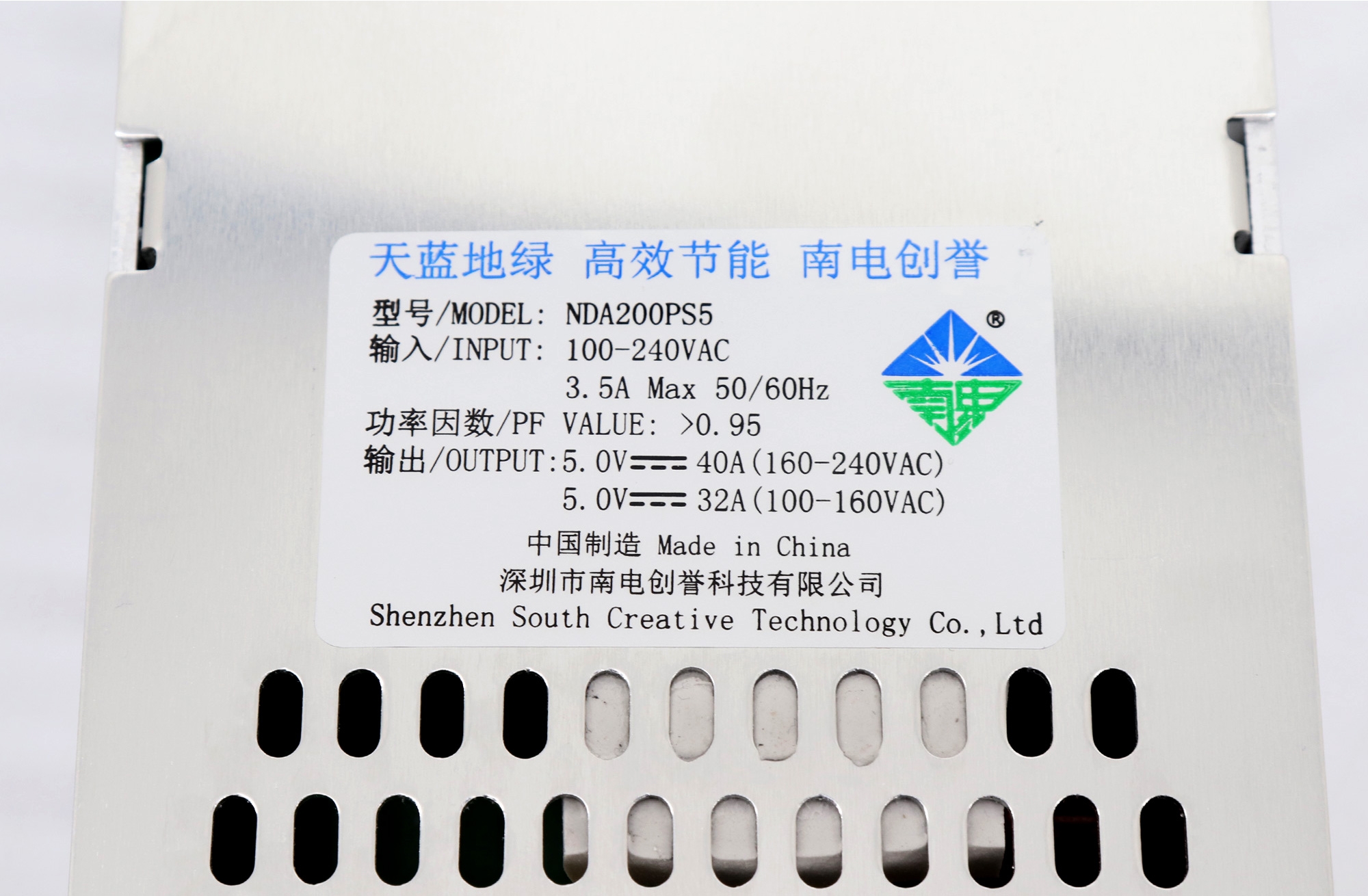

Product Photo and Specification PDF
Download Specification
South Creative NDA200PS5 LED Power Supply with 100-240V Specification（Chinese）
