The XingXiu DHP500H-5 is a 5V DC, 500W LED display power supply for nominal 200–240VAC mains. The specified operating input range is 180–264VAC.
Choosing the DHP500H-5 for a cabinet
This model combines LLC conversion and input-to-output isolation in a 220 × 46 × 26 mm enclosure. It uses ventilation cooling. When replacing a unit, match the full model number and AC input range as well as the 5V output requirement.
Specifications
| Parameter | Specification |
|---|---|
| Model | DHP500H-5 |
| DC output voltage | 5V |
| Input voltage range | 180Vac to 264Vac |
| Normal voltage range | 200Vac to 240Vac |
| Frequency range | 47Hz—63Hz |
| Max input ac current | 4.7Amax@180Vac |
| Inrush current (cold state) | <60A@230V |
| Efficiency (full load) | ≧88%@230Vac |
| Leakage Current | ≦1 mA,@ 230Vac input |
| Normal output power | 500W |
| Input Fuse | T6.3AL/250Vac |
| Power Factor | PF>0.95@230Vac，Full Load |
| Cooling Method | Ventilation cooling |
| Dimension | 220mm X 46mm X 26mm |
Frequently Asked Questions
Can the DHP500H-5 run from 110V AC?
No. Its specified input range is 180–264VAC, so 110V AC is outside the supported range.
What output voltage and power does it provide?
The output is 5V DC, with a rated output power of 500W.
How large is the DHP500H-5?
It measures 220 × 46 × 26 mm. Compare the mounting drawing and connector positions with the cabinet before replacement.
What is the stated efficiency?
Full-load efficiency is at least 88% at 230VAC input.
Where can I download its datasheet?
The DHP500H-5 specification PDF is linked below the product photographs and provides the model-specific installation reference.

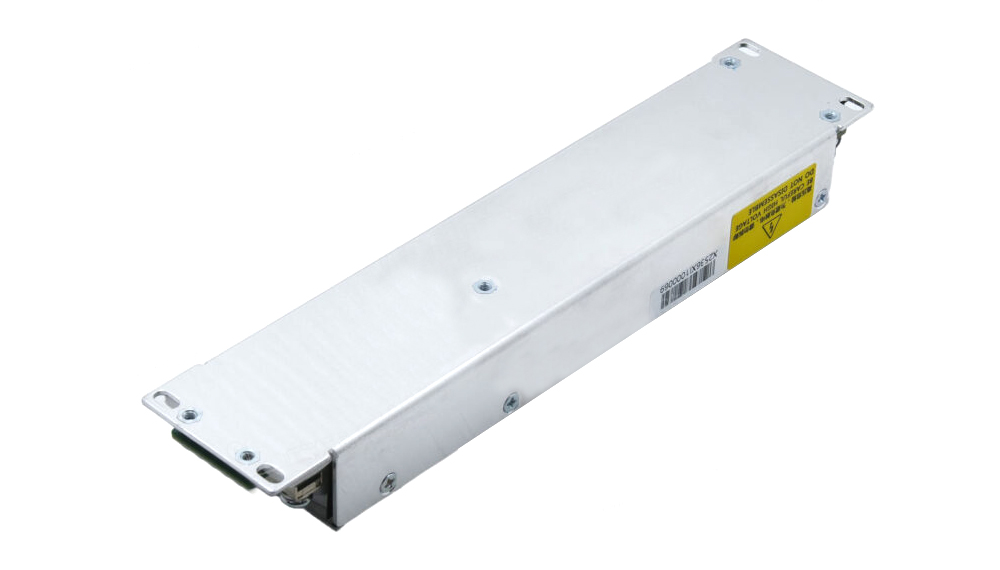

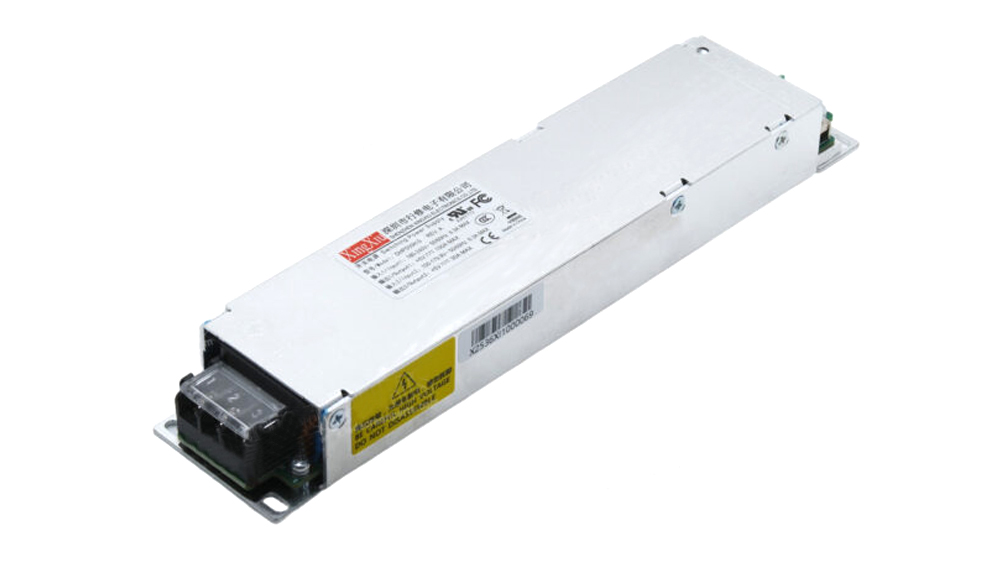

Product photographs and specification PDF
Download Specification:
XingXiu DHP500H-5 LED Power Supply Specification
