The XingXiu DSP200V-5 is a 5V DC LED display power supply rated at 200W. It accepts 90–264VAC and uses LLC conversion with input-to-output isolation.
200W power supply selection
The nominal AC input range is 100–240VAC. The enclosure measures 208 × 60 × 30 mm and uses ventilation cooling. Check both the electrical rating and mounting drawing when selecting a replacement for an existing LED display.
Specifications
| Parameter | Specification |
|---|---|
| Model | DSP200V-5 |
| DC output voltage | 5V |
| Input voltage range | 90Vac to 264Vac |
| Normal voltage range | 100Vac to 240Vac |
| Frequency range | 47Hz—63Hz |
| Max input ac current | 4Amax. at full load condition |
| Inrush current (cold state) | ＜120A@230VAC |
| Efficiency (full load) | 87%min.@230Vac, FULL LOAD |
| Leakage Current | Less Than 0.5 mA, @ 230Vac input |
| Normal output power | 200W |
| Input Fuse | T5AL/250Vac |
| Power Factor | PF>0.95@230Vac，Full Load |
| Cooling Method | Ventilation cooling |
| Dimension | 208mm X 60mm X 30mm |
Frequently Asked Questions
What is the DSP200V-5 rated output?
It supplies 5V DC with a rated output power of 200W.
Is it suitable for 110V AC mains?
Yes. Its specified input range is 90–264VAC, with 100–240VAC nominal input.
What efficiency is specified?
The minimum full-load efficiency is 87% at 230VAC input.
What are the cabinet space requirements?
The power supply itself measures 208 × 60 × 30 mm. Check mounting positions, cable access and ventilation space in the installation layout.
Where can I find the DSP200V-5 datasheet?
The specification PDF is linked below the product photographs. Refer to that exact-model document for installation details.

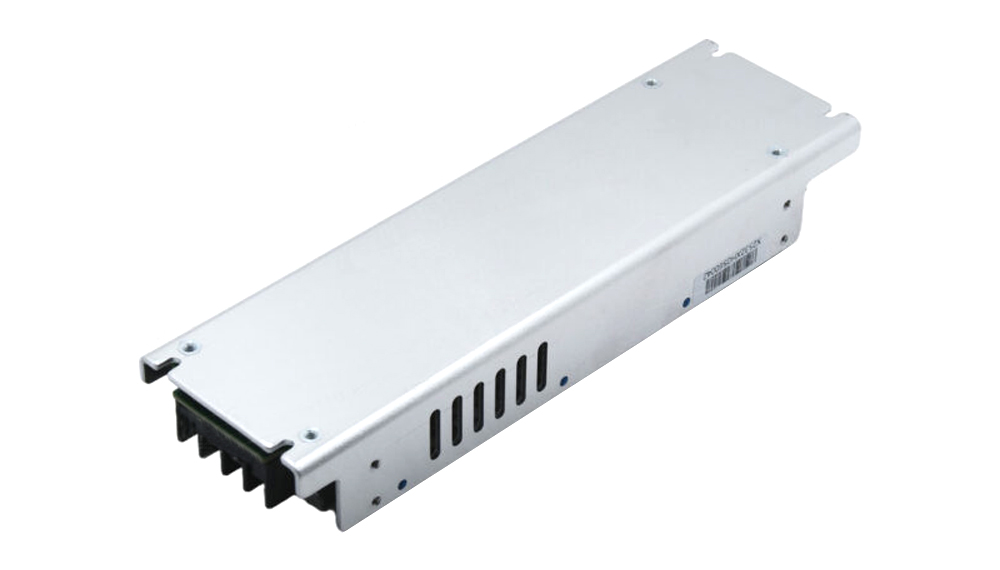

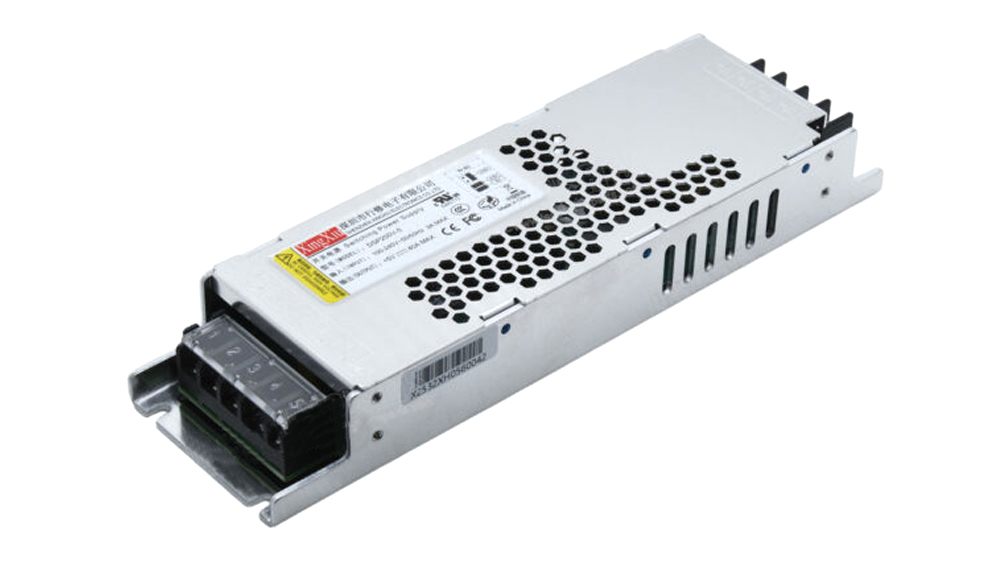

Product photographs and specification PDF
Download Specification:
XingXiu DSP200V-5 LED Power Supply Specification
