Overview

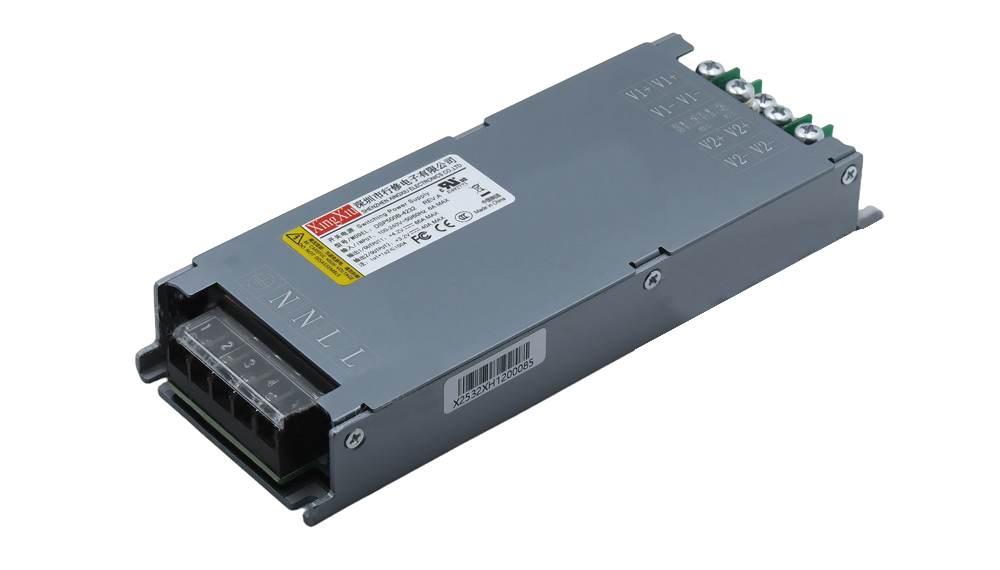

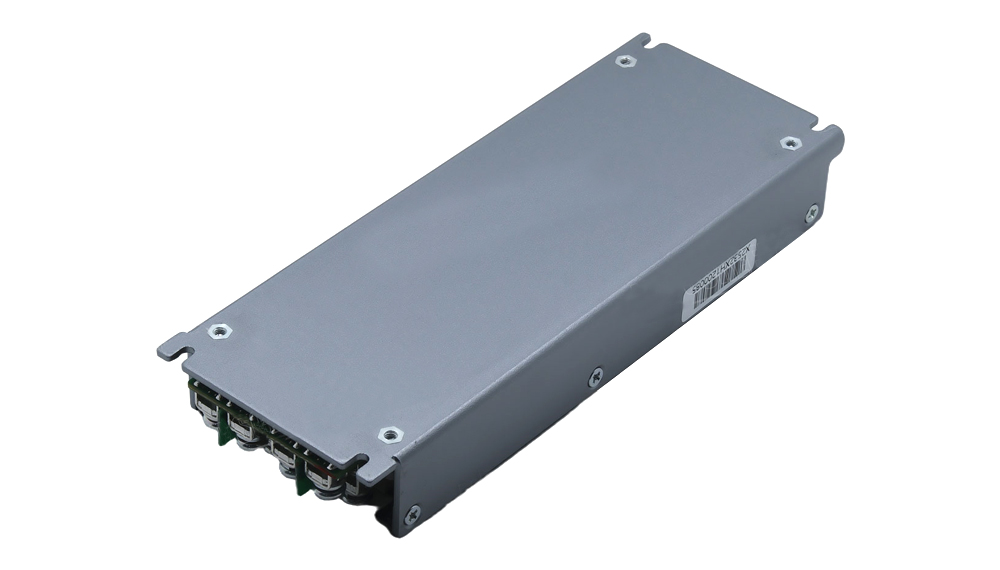

DSP500B-4232 is a conversion device which converts 100VAC-240VAC power to 4.2V and 3.2VDC Dual channel power. It takes advanced LLC Control technology, with precise control, input and output isolation, makes the device safe and efficient, and of good reliability. In addition, The conversion device mainly applies to the field of electronics, LED display, security monitoring, military-industry, communications, electricity, lighting display, industrial equipment etc.
Features:
Input voltage range：90Vac to 264Vac
Normal voltage range：100Vac to 240Vac
Frequency range：47Hz—63Hz
Max input ac current：6Amax@100Vac
Inrush current (cold state)：<60A@230V
Efficiency (full load)：90%TYP@230Vac，FULL LOAD
Leakage Current：Less Than 1 mA, @ 230Vac input
Normal output power：385W
Input Fuse：T6.3AL/250Vac
Power Factor：PF>0.95@230Vac
Cooling Method：Ventilation cooling
Dimension：180mm X 68mm X 26mm
Download Specification:
XingXiu DSP500B-4232 LED Power Supply Specification
