The XingXiu DSP500H-5 LED power supply converts nominal 100–240VAC mains to 5V DC, with a rated output power of 500W. The full specified input range is 90–264VAC.
Wide-input 5V supply for LED displays
The DSP500H-5 uses LLC control technology with input-to-output isolation. Its 220 × 46 × 26 mm enclosure is designed for ventilation cooling. Check the full model designation when replacing a supply: models with similar names may have different input ranges.
Specifications
| Parameter | Specification |
|---|---|
| Model | DSP500H-5 |
| DC output voltage | 5V |
| Input voltage range | 90Vac to 264Vac |
| Normal voltage range | 100Vac to 240Vac |
| Frequency range | 47Hz—63Hz |
| Max input ac current | 4.7Amax@100Vac |
| Inrush current (cold state) | <60A@230V |
| Efficiency (full load) | ≧88%@230Vac,Full load |
| Leakage Current | ≦1 mA,@ 230Vac input |
| Normal output power | 500W |
| Input Fuse | T6.3AL/250Vac |
| Power Factor | PF>0.95@230Vac，Full Load |
| Cooling Method | Ventilation cooling |
| Dimension | 220mm X 46mm X 26mm |
Frequently Asked Questions
Does the DSP500H-5 accept 110V and 230V AC?
Yes. Both fall within its specified 90–264VAC input range.
What output does it provide?
The listed DC output is 5V, with a rated output power of 500W.
How does its input range differ from the DHP500H-5?
The DSP500H-5 is listed for 90–264VAC. The DHP500H-5 is listed for 180–264VAC. Match the exact model to the available mains supply.
What cooling method and size are specified?
It uses ventilation cooling and measures 220 × 46 × 26 mm. Allow for ventilation and connector access in the cabinet.
Where can I check the terminal layout?
Use the DSP500H-5 specification PDF below the photographs and compare it with the labels on the actual unit.

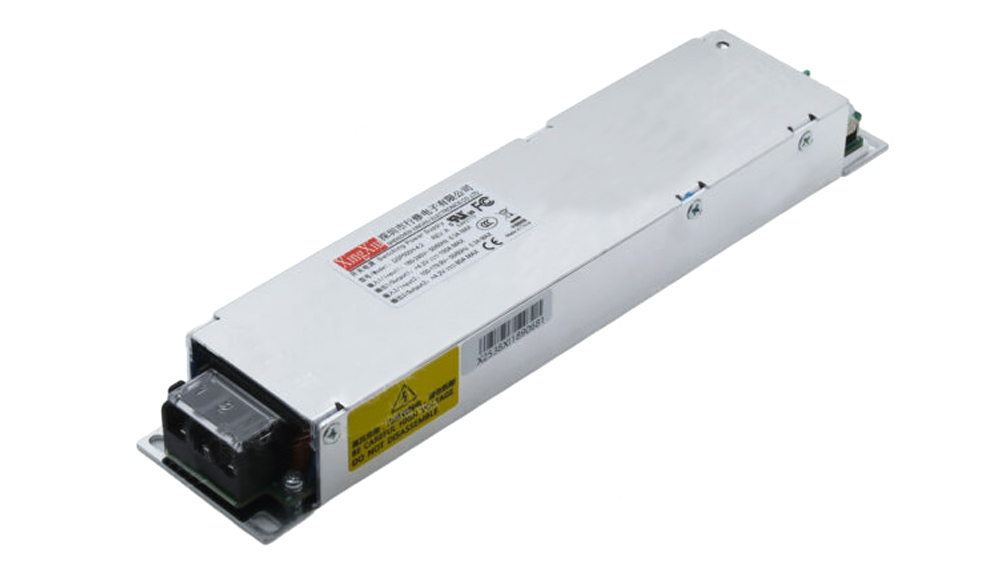

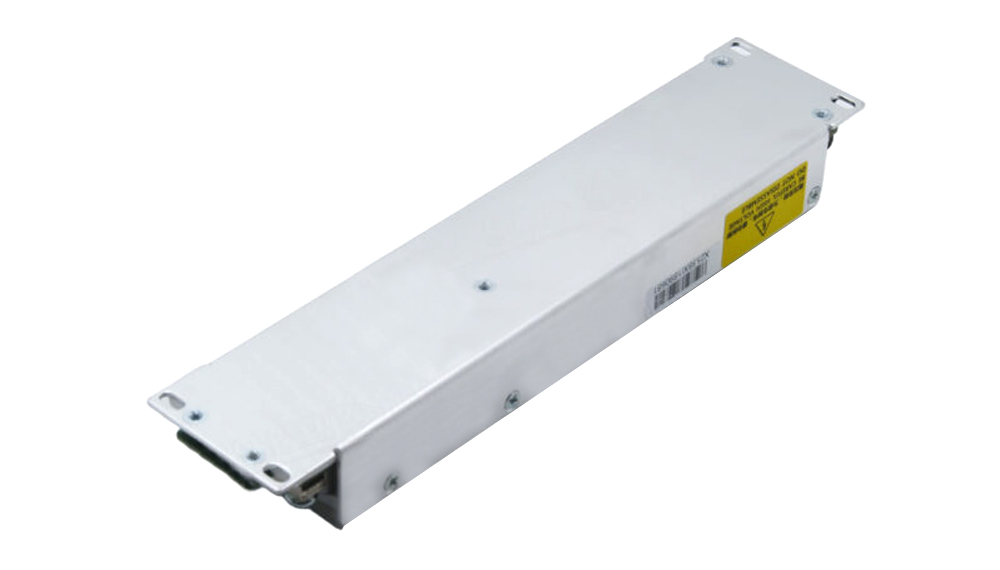

Product photographs and specification PDF
Download Specification:
XingXiu DSP500H-5 LED Power Supply Specification
