Mini Receiver for LED Display Modules

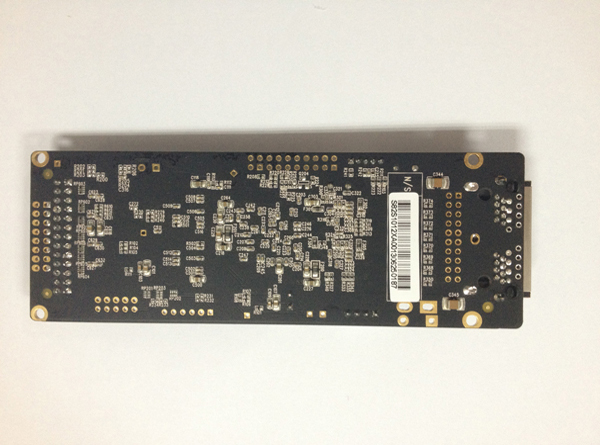

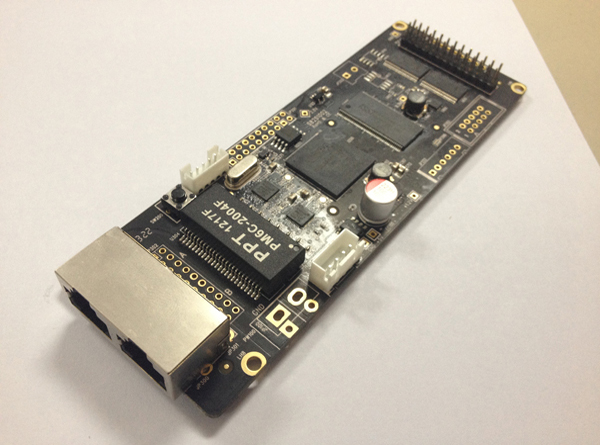

The ZDEC V82RV02 S82S1012 is a mini LED receiving card with gigabit communication. It offers 2, 4 or 5-pair parallel data output and 16-pair serial output with extension support. Supported display types include mono, dual-color, and full-color real and virtual displays.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model identifiers | V82RV02 / S82S1012 |
| Card type | Mini LED receiving card |
| Communication | Gigabit transmission |
| Parallel data output | 2, 4 or 5 pairs |
| Serial data output | 16 pairs; extension supported |
| Scan support | 1 to 32 arbitrary scan |
| Decoding | 74HC138 or 74HC595 |
| Ghost-canceling output | Supported |
| Brightness correction | 8 bit |
| Color correction | 16 bit |
| Monitoring and indicators | Cabinet detection and indicator-light interface |
Load Capacity
| Display type / mode | Maximum height (pixels) | Maximum width (pixels) |
|---|---|---|
| Mono or dual-color | 128 | 512 |
| Full color — Normal | 160 | 512 |
| Full color — Port Bisection | 160 | 512 |
| Full color — Port Extension | 320 | 512 |
The largest load capacity depends on module resolution. Match the display mode and module layout to the relevant row; the maximum dimensions are not a universal capacity guarantee.
Planning a Replacement
Use the V82RV02 / S82S1012 identifiers to compare the replacement with the installed card. Check the module wiring, scan mode and available mounting space. The loading limits above belong to this mini receiver; use its own mode-specific values when planning the cabinet layout.
Frequently Asked Questions
What are the V82RV02 parallel output options?
The card supports 2, 4 or 5 pairs of parallel data output.
Does the mini receiver support serial output extension?
Yes. The listed serial output is 16 pairs with extension support. The description does not specify a numeric extension limit.
What is the full-color loading limit?
Normal and Port Bisection modes list 160 pixels high by 512 wide. Port Extension lists 320 high by 512 wide. Maximum loading depends on module resolution.
Can it drive mono or dual-color displays?
Yes. The mono or dual-color loading row lists a maximum height of 128 pixels and width of 512 pixels, subject to module resolution.
Does the S82S1012 support brightness and color correction?
Yes. The V82RV02 S82S1012 supports 8-bit brightness correction and 16-bit color correction, plus cabinet detection and an indicator-light interface.
