Features of Colorlight C4 Cloud Server LED Player
1.Breakthroughs
· Professional BS structure, can connect to Internet through LAN/WiFi/4G and achieve cloud services cluster management;
·Maximum loading capacity: 655360 pixels; Maximum width: 4096 pixels, maximum height: 1536 pixels, and the size can be set flexibly;
·Build-in storage of 8G, 5G available for users, support play through USB;
·Fully compatible with program management and setup mode under conventional synchronized control system.
2.Security and Stability
·Made all from industrial electronic elements, quality and stability assured;
·Authorized certification, encrypted data channel;
·Multi-level authorization management, programs are published after review;
·Real-time broadcast contents monitoring, immediate feedback on operating status.
3.Intelligent Control & Easy Management
·Support U disc plug and play
·Can be set as AP Mode, support management with smart terminals such as PC, smartphone, tablet, etc.;
·Support monitoring of working temperature, humidity and brightness, and automatic adjustment of screen brightness.
4.Easy Program Management
·Edit program through LEDVISION, which is fully functional and easy to operation;
·Support multiple play windows, of which size and location can be freely set, and windows overlap supported;
·Support abundant media formats such as picture, video, text, clock, etc.;
·Support multiple programs play.
Parameters of Colorlight C4 Cloud Server LED Player
|
Basic Parameters |
|
| Core Chips | 1.6GHz quad-core CPU; 600Mhz quad-core GPU; 1GB DDR3
1080P HD hardware decoding |
| Loading Capacity | Maximum loading capacity: 650000 pixels;
Maximum width: 4096 pixels, maximum height: 1536 pixels |
| Receiving Card Supported | All Colorlight’s receiving cards |
|
Interfaces |
|
| Audio Output | 1/8″ (3.5mm)TRS |
| USB Ports | USB2.0*2, support external storage (U disc) or communication equipment |
| Gigabit Ethernet | Output signal to receiving cards |
| 100M LAN | Access network |
| WiFi | 2.4G/5G dual-band; support AP mode and station mode |
| 4G (Option) | Access internet |
| GPS (Option) | Precise positioning, precise timing, synchronization of multiple screens |
|
Physical Parameters |
|
| Dimension | 205.4*107.5*23mm |
| Working Voltage | DC 12V |
| Rated Power | 10W |
| Weight | 0.5kg |
| Working Temperature | -25℃~80℃ |
| Environmental Humidity | 0-95% without condensation |
|
File Format |
|
| Program Split | Support flexible program windows split, support flexible windows overlapping, support multiple programs play |
| Video Formats | Common formats such as AVI, WMV, MPG, RM/RMVB, MOV, DAT, VOB, MP4, FLV and etc.; support multiple videos play at the same time |
| Audio Formats | MPEG-1 Layer III，AAC etc. |
| Image Formats | bmp, jpg, png, etc. |
| Text Formats | txt, rtf, word, ppt, excel etc. |
| Text Display | Single line text, static text, multiple line text, etc. |
| Screen Split | 4 video windows, multiple picture/text windows, scrolling text, Logo, date/time/week. Flexible screen split can be achieved and different contents display in different area |
| OSD Supported | Support video/picture/text mixture or overlap with fully transparent, opaque, translucent effects |
| RTC | Support real time clock |
|
Terminal Management & Control |
|
| Communication | LAN/WiFi/4G |
| Program Update | Update program through USB or network |
| Management Devices | Smart terminals like PC, Android, iOS and etc. |
| Automatic Brightness Adjustment | Timing automatic adjustment;
Environmental automatic adjustment |
| Timing Play | Play according to scheduled programs |
| Software | LEDVISION 5.0 or higher vision |

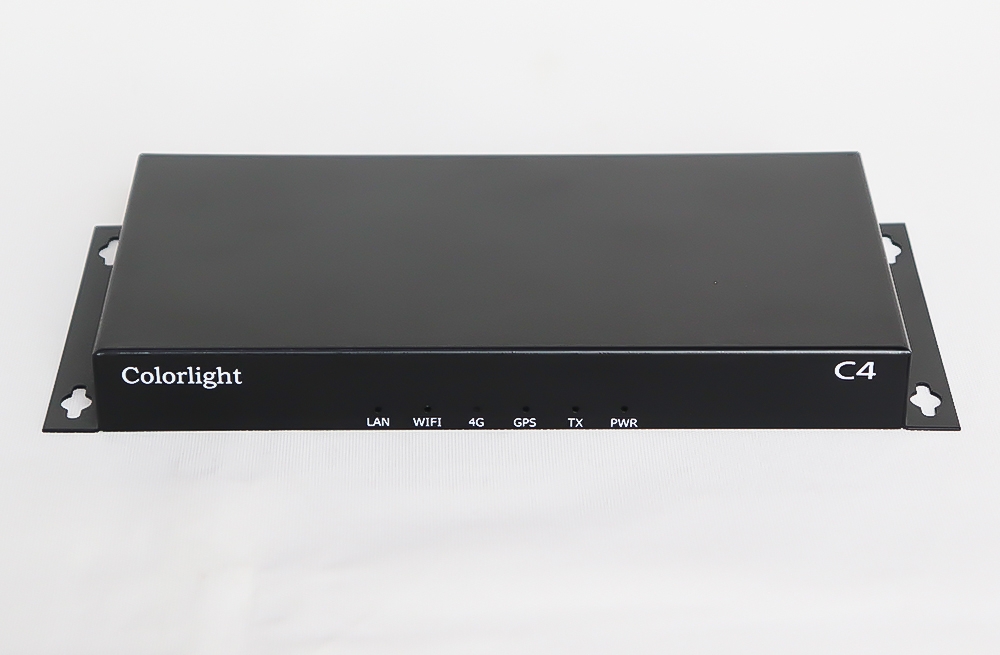

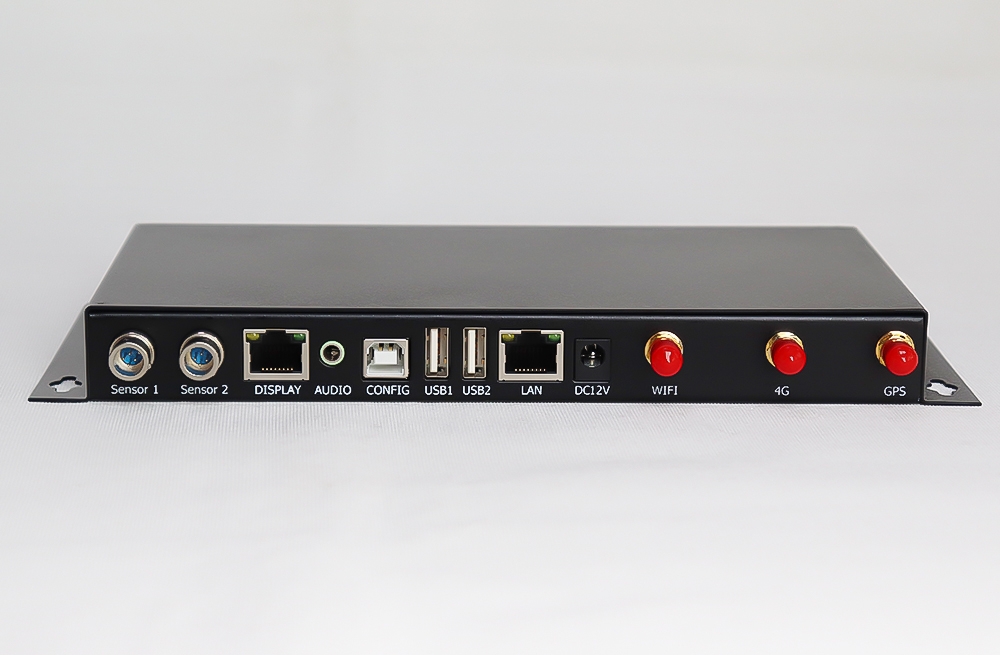

More Pictures of Colorlight C4 Cloud Server LED Player：
Download Specification and User Manual of Colorlight C4 Cloud Server LED Player
Click here to download Colorlight C4 Cloud Server LED Player Specification
Click here to download Colorlight C4 Cloud Server LED Player User Manual
Terms&Conditions of Colorlight C4 Cloud Server LED Player:
Delivery time: within 8 working days upon receiving payment..
Payment method: Paypal and credit card are preferred.
Packaging strong cardboard carton.
Warranty: two years.
Shipping method: DHL express is the default method. Others like EMS, UPS, FedEX and TNT will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us for details
Remark : Full technical support will be provided only when you order both LED modules(LED display) and controller system from our company.
