DBS-HRV09FR Fiber Receiving Card
The DBStar DBS-HRV09FR uses optical fiber transmission for a synchronous full-color LED control system. Its single-optical-module mode reduces the number of optical modules required, with a specific limitation on receiving-card data return.
Specifications
| Parameter | Specification |
|---|---|
| Application | Synchronous full-color LED display receiving |
| Transmission | Optical fiber in place of Gigabit Ethernet transmission |
| Optical module mode | Single-optical-module operation supported |
| Data return in single-module mode | Receiving-card data return is not supported |
| Brightness calibration | 16-bit |
| Chromatic calibration | Supported |
Choosing the Optical Configuration
Use the single-module arrangement only when receiving-card data return is not required. Confirm the optical module, fiber type and sending equipment for the installation; the available description does not state a transmission distance or fiber wavelength.
Frequently Asked Questions
What type of LED system uses the DBS-HRV09FR?
It is listed for a synchronous full-color LED display control system using optical fiber transmission.
Does single-optical-module mode support receiving-card data return?
No. The product description explicitly states that receiving-card data return is unavailable in this mode.
Does it support brightness and color calibration?
Yes. It supports 16-bit brightness calibration and chromatic calibration. The listing does not state a separate chromatic-calibration bit depth.
What should I confirm before selecting fiber hardware?
Confirm the supplied optical module, fiber type, transmission distance and compatible sending equipment. Single-optical-module operation alone does not specify these requirements.

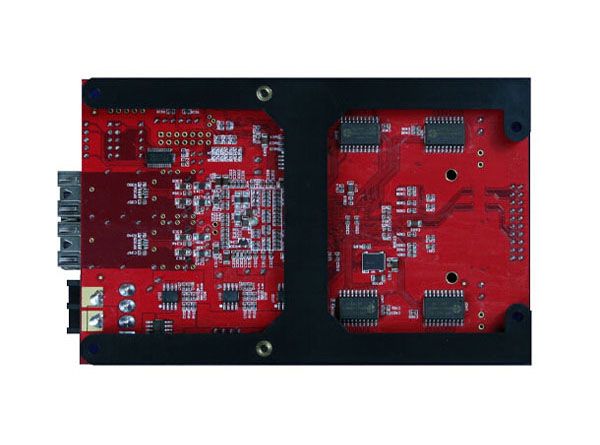

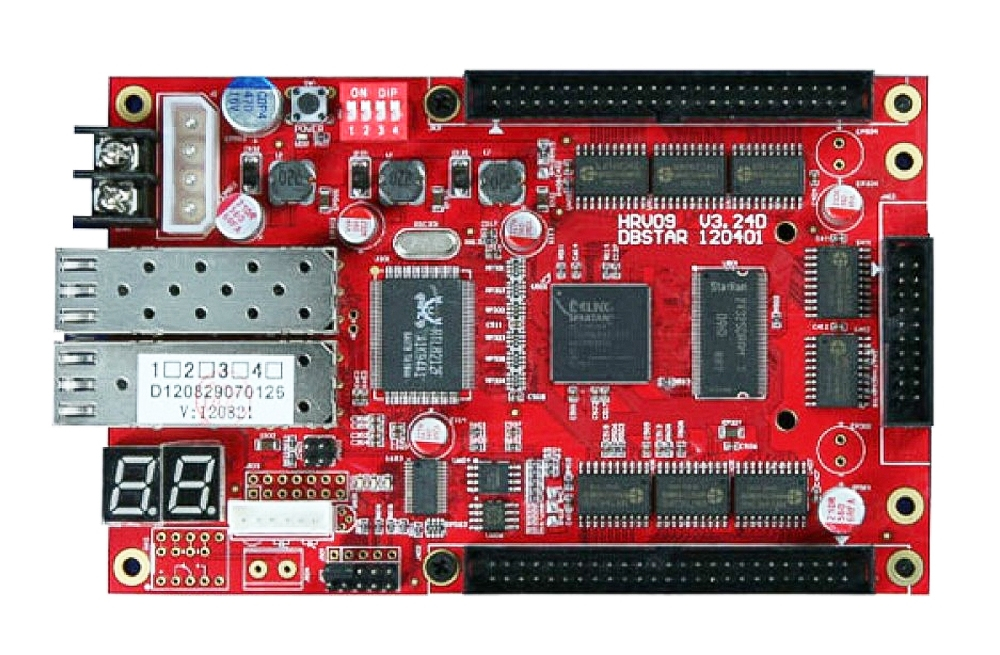

Product Photos
