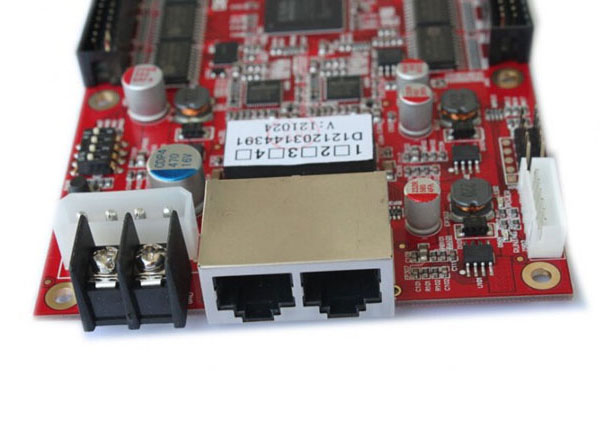

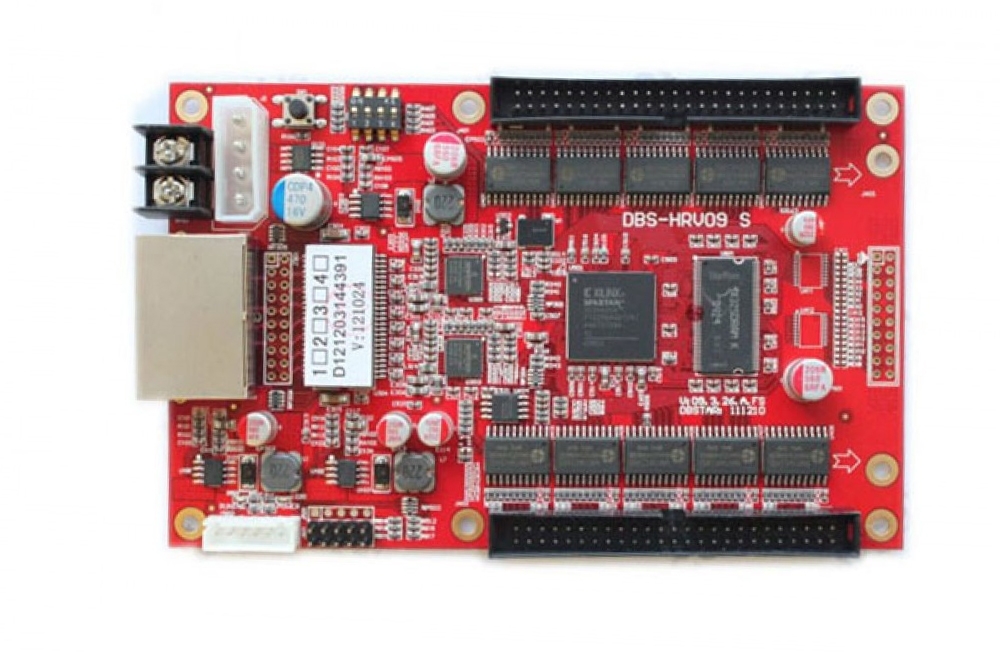

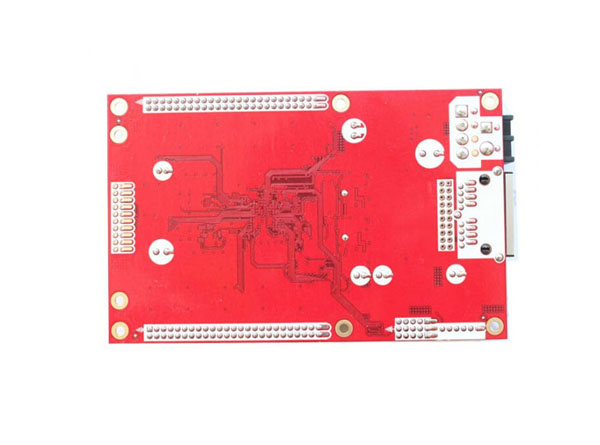

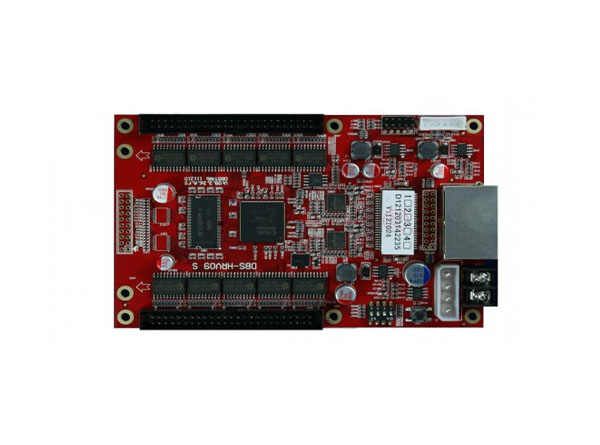

DBS-HRV09S Full-Color Receiver Card
The DBStar DBS-HRV09S provides LED receiving functions with a grayscale engine, PWM-driver support and automatic collection of error information. It also supports power-on gradual protection and OE polarity switching.
Specifications
| Parameter | Specification |
|---|---|
| Working voltage | 2.5–12 V DC |
| Control technology | V-PWM3 |
| Brightness calibration | 16-bit |
| Chromatic calibration | Supported |
| PC image sending | 1000M/Gigabit network-card sending without a dedicated sending card |
| Split connection | 16 data-output groups listed for split-connection use |
Detailed System Parameters
The table below retains the original typical and maximum values. Sending-card load and fiber distances describe system configurations, not additional built-in ports on the HRV09S. Driver-dependent refresh rates and receiving-card capacities must be checked for the intended setup.
| Type | Typical value | Max value |
|---|---|---|
| Supported screen type | single color, dual-color,full-color, real pixel,virtual pixel. | |
| Supported LED drivers | MBI5026/MBI5030/MBI5036/ | |
| MBI5039/MBI5042/MBI5050/ MBI6024/ | ||
| LPD6803/DM413/DMX512/ ZQL9726 | ||
| TCD62D722/TC62D766/ MBI5050/MBI6024 | ||
| Pixels by single sending card | 1280×1024(dual ports) | |
| Number of receiving cards connected by cable | <100 | 256 |
| Pixels by single receiving cards | 256 x192（full color） | 512×384（full color） |
| 1024 x512（dual color） | 1280 x512（dual color） | |
| RGB data groups by single receiving card | 16-24 | 24 |
| Lines by one group RGB | 1/2/4/8/16/32 | 32 |
| Grey grades | 4096(4k) | 65536(64k) |
| Data CLK frequency | 15.62MHz | 31.25MHz |
| Refresh rate | 180Hz | >3600Hz(for example, MBI5042) |
| Brightness wastage | 15~20% | <5% |
| PWM brightness adjust degree | 256(may automatically adjust by brightness sensor) | |
| Electronic current plus brightness adjustment grade | 64/256(according to led drivers) | |
| Dot by dot revise pixels by PWM brightness | 64×64 | 256×256 |
| Pixels on open circuit and short circuit error detection | static：2048×16；1/2：1024×16； | |
| 1/4：2048×16；1/8：4096×16； 1/16：8192×16 | ||
| Fiber transmission distance | Multi-mode fiber ：500meters； single-mode fiber：10KMs | |
| Other functions | Power on gradual protection | |
| OE Polarity switch protect screen scan tubes, led screen self-detecting | ||
| No sending card function | Sending images by 1000M network card PC |
The legacy description contains conflicting 10-bit and 16-bit video-source claims. Source bit-depth compatibility should be confirmed for the supplied firmware; it is separate from the stated 16-bit brightness calibration.
Frequently Asked Questions
Can the HRV09S receive images without a dedicated sending card?
The listing supports image sending from a PC with a 1000M/Gigabit network card. Confirm the required DBStar software and system configuration before using this mode.
What supply voltage is listed?
The working voltage range is 2.5–12 V DC.
Does it support brightness and chromatic calibration?
Yes. It supports 16-bit brightness calibration and chromatic calibration.
Is the maximum refresh rate available in every configuration?
No. Refresh rate depends on the LED driver and display setup. The original table gives MBI5042 as an example for its higher refresh-rate figure.
Where can I check the current price and availability?
The current product price and available stock are shown above the description. Check them when placing your order.
