Huidu HD-VP12 all-in-one LED controller
The HD-VP12 combines a video processor with 12 Gigabit Ethernet sending outputs for synchronous LED displays. Its rated screen load is up to 7.8 million pixels, with a maximum width of 16,000 pixels or maximum height of 8,000 pixels, subject to the total pixel limit. It is designed for installations such as conference rooms, exhibition displays, studios and commercial LED walls.
HD-VP12 at a glance
| Specification | HD-VP12 |
|---|---|
| LED output | 12 Gigabit Ethernet ports for receiving cards |
| Maximum LED screen load | 7.8 million pixels total; up to 16,000 pixels wide or 8,000 pixels high |
| Video inputs | DP 1.2, HDMI 2.0 and HDMI 1.4; 3G-SDI input/loop is optional |
| Media input | USB playback of video and image files |
| Layers and presets | Two windows and 256 scene presets |
| Control | USB-B, Wi-Fi, LAN and RS-232/RS-485; infrared remote control is optional |
Inputs, processing and display control
Connect sources through DP 1.2, HDMI 2.0 or HDMI 1.4 and switch between them at the venue. The controller supports 4K-class input signals, while its LED canvas capacity remains 7.8 million pixels in total. USB playback lets operators show a mix of images and video without a separate live source. An optional 3G-SDI interface should be confirmed before ordering.
Two display windows, source cropping and scaling, output preview, non-rectangular loading and Ethernet-port backup help configure complex screen layouts. Image controls include brightness, color temperature, contrast, saturation, hue and sharpness. Save and recall up to 256 scenes for repeat setups.

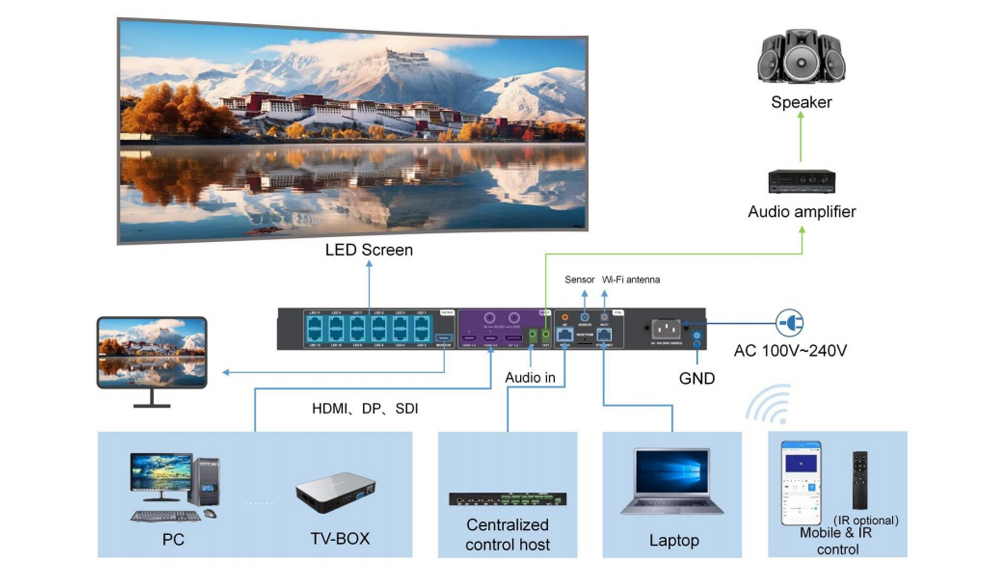

Planning an HD-VP12 installation
Calculate the total LED pixel count from the actual screen width and height, then map the cabinet layout across the 12 Ethernet outputs. The 16,000-pixel width and 8,000-pixel height figures are directional limits, not a claim that both can be reached at once. Confirm the receiving cards, source format and optional SDI or infrared hardware for the specific project before purchase.
Frequently asked questions
How many Ethernet outputs does the HD-VP12 have?
It has 12 Gigabit Ethernet outputs that connect to the LED receiving-card system.
Does a 4K input mean a full 4K LED screen can be driven?
Input resolution and LED screen load are separate specifications. The HD-VP12 supports 4K-class input sources, while its LED screen load is rated at up to 7.8 million pixels.
Is 3G-SDI included?
3G-SDI is an optional interface. Confirm the supplied configuration when requesting a quotation.
Conclusion
Choose the HD-VP12 when a project needs integrated video processing, 12 Ethernet outputs and up to 7.8 million LED pixels. Check the real screen pixel count and optional interfaces against the project design before ordering.

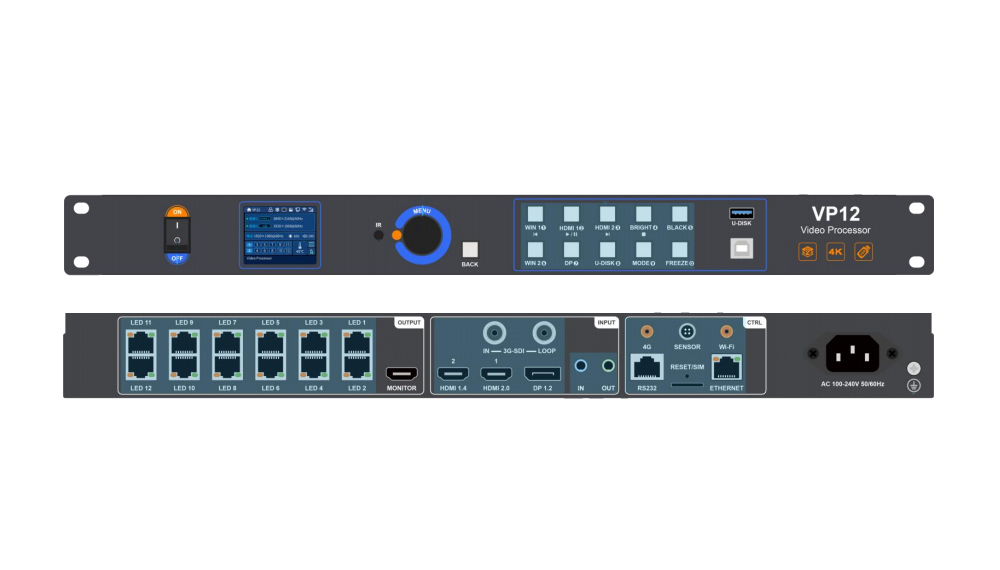

Product images and specification
Download specification: Huidu HD-VP12 All-in-one LED Controller Specification (PDF). See also the manufacturer’s HD-VP12 product information.
