Sysolution Y08 Android LED Display Controller
The Sysolution Y08 drives LED modules through eight HUB75 outputs and supports remote content management through a cloud platform. Its onboard Wi-Fi supports both AP hotspot and Station modes, allowing local wireless access or connection to an existing wireless network.
Connectivity and Optional Accessories
An optional 4G module provides cellular communication. Specify the country of installation when selecting the module because regional versions differ. External GPS positioning and timing modules support synchronized playback across multiple screens.
The RS485 connection supports an external R68 eight-element environmental sensor for displaying environmental information without secondary development. The listed functions also include two remote switching controls: one for the LED screen and one for a street light. Check the installation wiring and compatible switching equipment before connection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Y08 |
| Controller platform | Android |
| LED module outputs | 8 × HUB75 |
| Parallel data | Up to 16 RGB groups |
| Wi-Fi | Onboard; AP hotspot and Station modes |
| Cellular communication | Optional 4G module; region-dependent selection |
| Environmental sensor | External R68 via RS485 |
| GPS functions | External positioning and timing modules supported |
| Remote switching | Two controls: screen and street light |
| Remote management | Cloud-platform cluster control |
| Secondary development | Supported |
Selecting a Y08 Configuration
Match the card to the LED module interface, screen layout and communication requirements. Confirm the pixel capacity and operating-temperature specification for the exact supplied revision before designing the enclosure or display; this page does not infer those values from a product image or another Y-series card.
Frequently Asked Questions
Does the Y08 connect directly to HUB75 LED modules?
Yes. The card provides eight HUB75 outputs and supports up to 16 groups of parallel RGB data. Confirm the module scan configuration and screen layout for the installation.
Does the Y08 include Wi-Fi and 4G?
Wi-Fi is onboard. The 4G module is optional, and its version must match the country of use.
Can the Y08 display environmental sensor readings?
Yes. An external R68 environmental sensor can connect through RS485 to display environmental information without secondary development.
Can multiple Y08 screens play content in sync?
The listed features support external GPS positioning and timing modules for synchronized multi-screen playback. The modules and system configuration must be selected for the installation.
How much does the Y08 control card cost?
Use the current price and available options shown on this product page. Confirm whether the order includes the optional 4G module, GPS equipment or sensor accessories before purchasing.

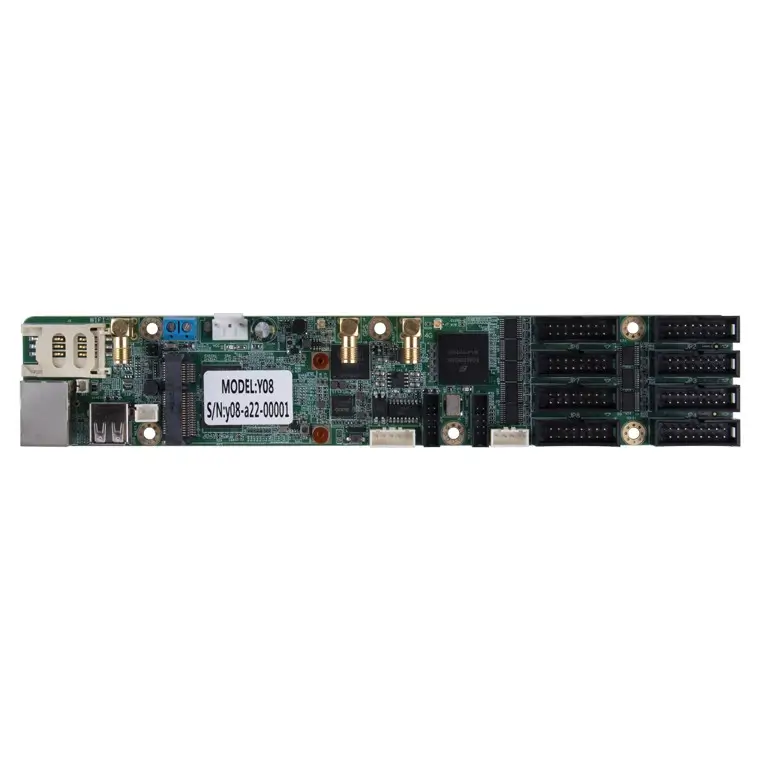

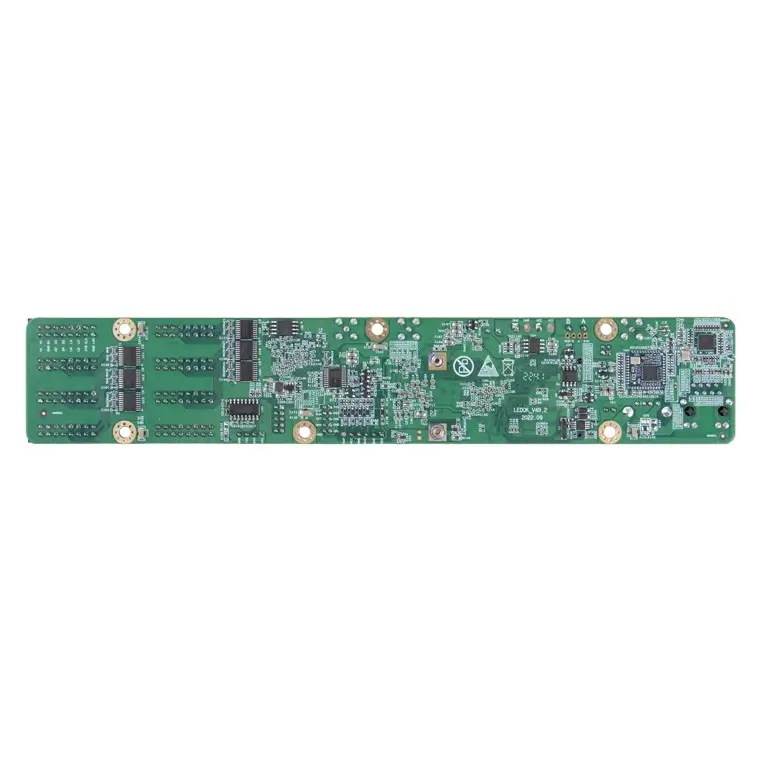

Product Images
Specification Download
Download the Sysolution Y08 control card specification (PDF)
