Huidu HD-VP6 LED Video Processor Overview
The Huidu HD-VP6 is an all-in-one LED video processor and controller for synchronous LED displays. It combines video processing with six Gigabit Ethernet outputs that connect to compatible Huidu receiving cards. Its total loading capacity is up to 3.9 million pixels. The maximum width is 16,000 pixels or the maximum height is 8,000 pixels, subject to the total pixel limit and the chosen display layout.
For event screens, conference rooms, retail displays, and other live-source installations, the HD-VP6 offers DP 1.2, HDMI 2.0, and HDMI 1.4 inputs, plus optional 3G-SDI. It also supports USB playback of images and video. A 4K input signal does not mean the LED canvas can exceed the 3.9-million-pixel output capacity.
HD-VP6 Key Specifications
| Item | HD-VP6 |
|---|---|
| LED output | 6 Gigabit Ethernet ports |
| Total loading capacity | Up to 3.9 million pixels |
| Maximum dimensions | Up to 16,000 pixels wide or 8,000 pixels high, within the total capacity |
| Video inputs | 1 × DP 1.2, 1 × HDMI 2.0, 1 × HDMI 1.4; optional 3G-SDI |
| Media input | USB image and video playback |
| Display windows | 2 |
| Scene presets | 256 |
| Control | USB-B, Wi-Fi, LAN, RS-232 and RS-485; infrared remote control optional |
What the HD-VP6 Does
- Integrates processing and sending: six Ethernet outputs feed the receiving-card system without a separate sending box.
- Handles mixed sources: switch between live DP/HDMI inputs and USB media; 3G-SDI is an optional configuration.
- Supports flexible screen layouts: use two windows and non-rectangular Ethernet-port loading where the display design requires it.
- Helps on-site setup: preview the LED output, save scene presets, and adjust image settings such as brightness and color temperature.
Choosing and Connecting the Controller
Check the total pixel count, screen width and height, input format, receiving-card compatibility, and whether the optional SDI or infrared feature is required before ordering. For a larger LED canvas, compare other LED video controllers or contact us with your screen resolution and source list.
HD-VP6 FAQ
How many pixels can the HD-VP6 control?
Up to 3.9 million LED pixels in total across its six Gigabit Ethernet outputs. The maximum width or height does not increase that total capacity.
Does 4K input mean 4K LED output?
No. The controller can accept a 4K-class source, while the connected LED display remains limited by the HD-VP6’s 3.9-million-pixel loading capacity.
Is 3G-SDI included?
3G-SDI is optional. Confirm the installed input configuration before purchase.

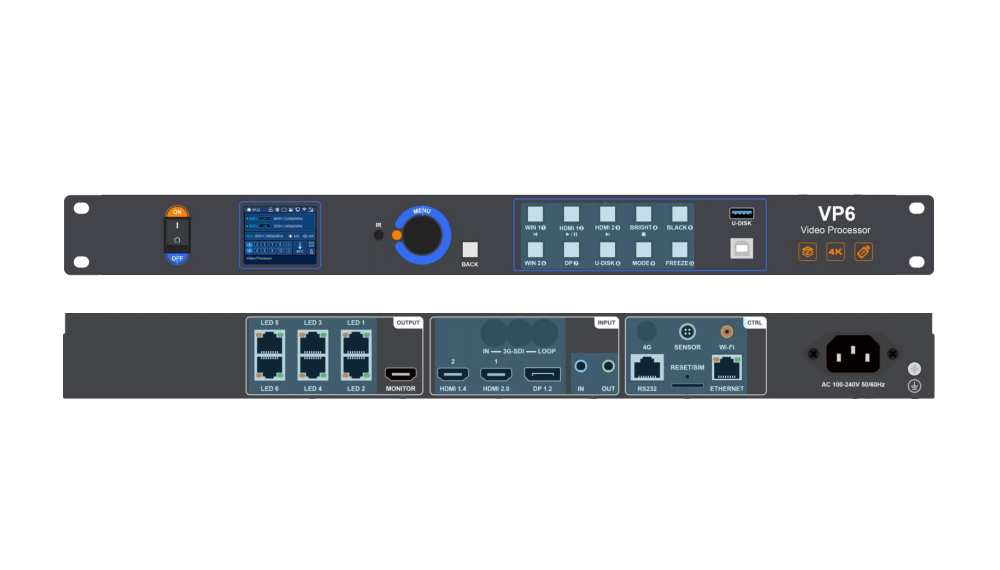

Product Image and Documentation
Specifications are based on the Huidu HD-VP12/10/8/6 product information. Refer to the downloadable HD-VP6 specification for detailed installation planning.
Download Specification:
Huidu HD-VP6 All-in-one LED Controller Specification
