Huidu HD-VP8 overview
The Huidu HD-VP8 is an all-in-one LED video processor and controller. It combines video processing with eight Gigabit Ethernet outputs that connect to LED receiving cards. The total loading capacity is up to 5.2 million pixels; maximum supported canvas dimensions are 16,000 pixels wide and 8,000 pixels high, subject to the total pixel limit. It is designed for synchronous LED display applications such as conference rooms, exhibitions, retail spaces and studios.
HD-VP8 specifications at a glance
| Item | HD-VP8 |
|---|---|
| LED output | 8 × Gigabit Ethernet ports for receiving cards |
| Total loading capacity | Up to 5.2 million pixels |
| Maximum canvas dimensions | Up to 16,000 pixels wide or 8,000 pixels high, within the total capacity |
| Video inputs | 1 × DP 1.2, 1 × HDMI 2.0, 1 × HDMI 1.4; 3G-SDI input/loop optional |
| Other connections | USB 3.0 media playback, audio input/output, light-sensor input and HDMI preview output |
| Display layout | Two video windows; 256 scene presets |
Inputs, playback and LED output
4K-capable video input and source switching
The HD-VP8 accepts synchronized input signals up to 4096 × 2160 at 60 Hz through supported inputs. DP 1.2, HDMI 2.0 and HDMI 1.4 give installers source choices; 3G-SDI input and loop output are optional. USB 3.0 supports mixed image and video playback. The 4K input specification describes the incoming signal, while the LED screen canvas remains limited by the 5.2 million-pixel output capacity.
Eight-port LED control
Eight Gigabit Ethernet ports feed receiving cards directly. The controller supports non-rectangular loading and network-port backup, helping installers assign output capacity to irregular screen layouts. An HDMI preview output shows the monitor feed during setup. Two-window composition, scaling, cropping and switching support common presentation layouts.
Control and on-site operation
Operators can adjust brightness, color temperature, contrast, saturation, hue and sharpness. The HD-VP8 supports 256 scene presets, EDID import/export, LAN communication, RS232/RS485 control, Wi-Fi station/AP modes and mobile-app control. OSD features include scrolling text, a clock and weather display. Optional equipment or configurations may be needed for SDI, 4G connectivity and infrared remote control; confirm the supplied configuration before ordering.
Frequently asked questions
Does 4K input mean the LED screen can display a full 4K canvas?
No. Input resolution and LED output capacity are different specifications. The HD-VP8 accepts up to 4096 × 2160 at 60 Hz as an input signal, while the connected LED canvas is limited to 5.2 million pixels in total.
How many network outputs does the HD-VP8 have?
It has eight Gigabit Ethernet outputs for LED receiving cards. Plan the screen mapping and port loads within the total 5.2 million-pixel capacity.
Is 3G-SDI included?
3G-SDI input and loop output are optional. Confirm the exact hardware configuration when ordering.

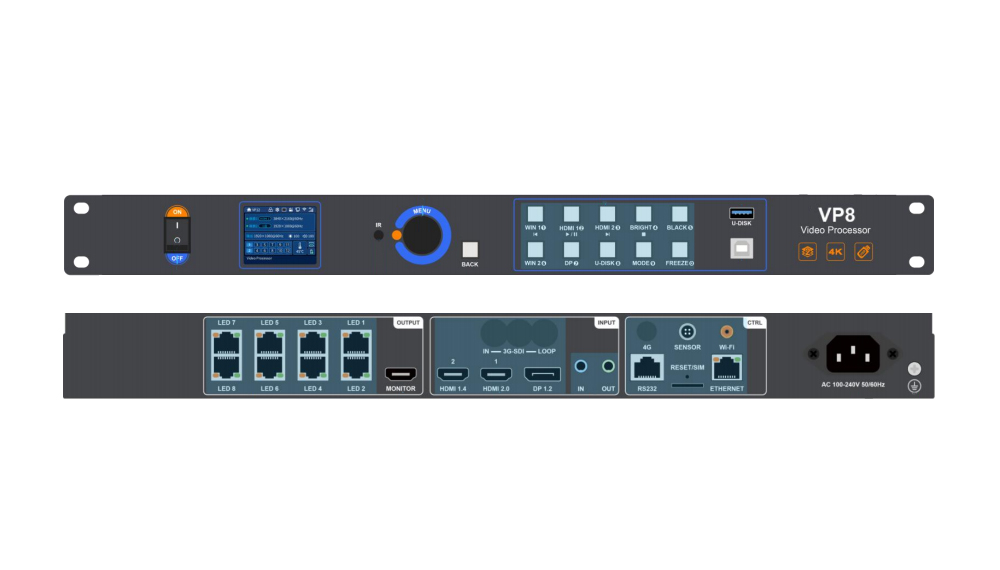

Product image and specification
Download specification: Huidu HD-VP8 All-in-one LED Controller Specification (PDF). See also the manufacturer’s HD-VP8 product information.
Conclusion
The HD-VP8 is suited to LED projects that need video processing and eight Gigabit outputs in one device. Match the screen’s total pixel count, dimensions, receiving-card layout and optional interface requirements to the specification before purchase. Contact us if you need help checking a configuration.
