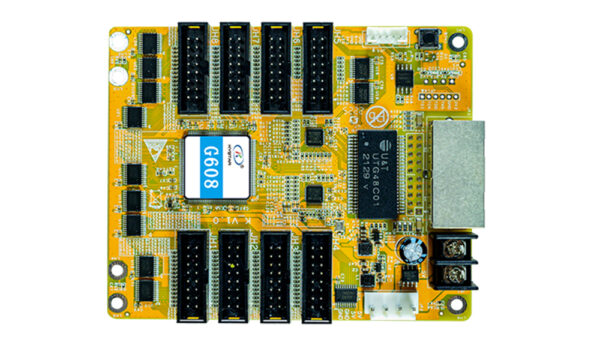

Kystar G608 for eight-interface LED cabinet receiving
The Kystar G608 receives data from a compatible sending controller and converts it into control signals for LED modules. It provides eight module interfaces and 16 RGB data groups. The retained v2.0 model document describes pixel calibration, image adjustment and configuration-maintenance functions.
Use the G608 at the receiving side of an LED control system. Choose it by the actual module wiring, driver IC, scan mode and card revision, then size the receiving-card area and network chain for that configuration.
Verified interface and feature specifications
| Specification | Details |
|---|---|
| Module outputs | 8 × 16-pin interfaces, JH1–JH8 |
| RGB data groups | 16 |
| Calibration | Point-by-point brightness and chromaticity correction; low-grayscale compensation |
| Driver categories | PWM, point-detection and general-purpose chips; confirm exact IC support |
| Configuration maintenance | Readback of configuration information and repair workflow |
| Diagnostics | Network communication status and cable connection-sequence detection |
| Image functions | Color reproduction, frequency-doubling and low-brightness grayscale |
| Creative layouts | Irregular-screen point mapping |
| Electrical reference | DC 3.5–6V; verify supply and current requirements for the actual revision |
| Pixel-load discrepancy | Retained v2.0 feature page: 98K pixels; its specification table: 512 × 512 pixels. Confirm the applicable value before ordering. |
Pixel-load figures require a revision check
The preserved G608 document contains two different capacity statements. Its feature section lists a maximum of “98K pixels,” while the machine-specification table lists 512 × 512 pixels, which equals 262,144 pixels. These statements are not equivalent, and the document does not explain the difference.
For a new cabinet or replacement card, confirm the exact board marking, hardware revision, firmware, module dimensions, driver IC, scan ratio and desired refresh settings with the applicable manufacturer documentation. Do not select the larger number merely because it appears in a table, and do not substitute G608P or another receiving-card model’s capacity.
Calibration and maintenance benefits
- Tune module output: use supported brightness/color calibration and low-grayscale compensation.
- Recover cabinet settings: read back configuration and use the repair workflow with the correct parameters.
- Inspect cable layout: check communication status and network connection sequence.
- Handle irregular areas: configure supported point mapping for the actual screen design.
Compatibility checks
Match the 16-pin signal definitions to the module cables before connecting them. The connector count alone does not establish compatibility. The sending controller’s per-output and total budgets also apply to the full LED network.
Image-tuning and frequency-doubling functions depend on the driver and display settings. Camera shutter settings affect recorded images, so scan-line-free photography is not guaranteed in every setup. Use stable power and the correct firmware procedure during maintenance.
For a receiver with different module connections, compare the Kystar R12 using its own documented corrected load and pinout. This comparison does not establish interchangeability.
Frequently asked questions
How many data groups does G608 provide?
The retained model document lists 16 RGB data groups across eight module interfaces.
What is the confirmed maximum pixel load?
The retained v2.0 document is inconsistent. Confirm whether its 98K statement or 512 × 512 table applies to the exact supplied revision before sizing the cabinet.
Is G608 the same as G608P?
Use the full model marking and matching specification. A similarly named board should not be treated as an automatic replacement.
Conclusion
G608 provides eight module interfaces, calibration and maintenance functions. Resolve the document’s pixel-load discrepancy for the actual card before ordering or replacement, and confirm its module configuration. Refer to the official Kystar Gx receiving-card series and the preserved G608 document below.
Download Specification:
Kystar G608 LED Display Screen Receiver Card Specification
