Kystar KP1 Pandora LED media player
The Kystar KP1 integrates multimedia playback with an LED sending function. Its single Gigabit Ethernet display output supports up to 650,000 pixels through compatible receiving cards. Stored programs can play locally, so the editing computer does not need to remain connected during normal playback.
It is intended for advertising screens such as shop-front signs, light-pole displays and LED mirror screens that fit the single-output pixel budget.
KP1 specifications
| Specification | Details |
|---|---|
| LED display output | 1 × Gigabit Ethernet to compatible receiving cards |
| Maximum total LED load | 650,000 pixels |
| Canvas dimensions | Maximum width 3840 pixels or height 2000 pixels, within the 650,000-pixel budget |
| Video decoding | 1080p at 60 fps hardware decoding in the retained specification |
| Program storage | 8GB installed; approximately 5GB available for users in the documented version |
| Update methods | WiFi, wired-network communication and USB storage |
| Audio | 3.5mm audio output |
| Content types | Supported video, pictures, text and audio; multi-window programs |
| Dimensions | 153 × 104 × 27 mm (L × W × H) |
| Power | DC input; documented operating voltage 3.8–5.5V; use a matched adapter |
Plan a single-output screen
A 1280 × 480 LED canvas contains 614,400 pixels, below the specified total. This calculation provides a starting point; receiving-card support, refresh rate, cabinet mapping and module configuration must also match the installation.
The width and height maxima are individual limits. They do not mean a 3840 × 2000 rectangle is supported. A 1920 × 1080 native LED canvas contains 2,073,600 pixels and exceeds KP1’s load, even though the device can decode supported 1080p video files.
Kystar PE editing and playback workflow
Prepare the program for the actual LED canvas using compatible Kystar PE software. Combine supported videos, pictures, text and audio, then update the player by a supported network or USB method. The compatible Pandora app provides mobile editing, screen configuration and management functions.
- WiFi: provides supported wireless configuration from a phone or computer.
- Wired network: supports communication and program-management access.
- USB storage: provides an alternative program-update and storage-expansion method.

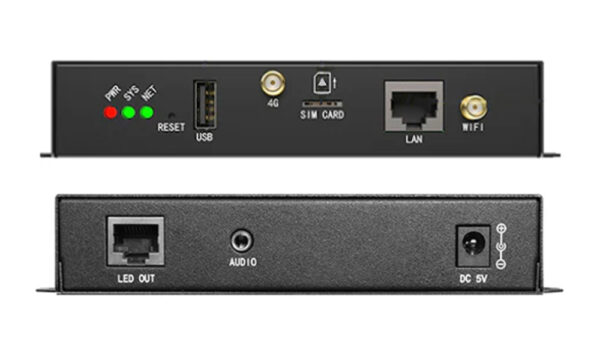

The network-management connection and the Gigabit LED output serve different roles. Connect the LED output to the receiving-card chain, then connect the receiving cards to the display modules.
Choose the correct model before ordering
Confirm that the requested device is KP1 and that its 650,000-pixel load fits the screen. The separately specified Kystar KP2 has two Gigabit display outputs and a 1.3-million-pixel load. Select by the exact model and complete wiring plan.
For a purchasing or shipping quotation, provide the screen’s pixel dimensions, receiving-card model, required quantity and delivery destination. Confirm the supplied adapter, software compatibility, availability and lead time for that order.
Frequently asked questions
What does the Kystar KP1 do?
It stores and plays multimedia programs, then sends LED display data through one Gigabit output to compatible receiving cards.
Is a permanently connected playback computer required?
Stored local programs can play independently. Use a compatible computer or mobile app when configuring the screen, editing content or sending updates.
Does the 1080p decoding specification change the 650,000-pixel load?
No. Video decoding and native LED canvas size are separate limits. Configure the output layout within the stated pixel budget and receiving-card capabilities.
How much storage is available for programs?
The device has 8GB installed storage. The retained specification lists approximately 5GB for user programs; confirm free space in the supplied software version before transferring content.
Conclusion
KP1 suits compact LED advertising displays that need single-output stored-media playback. Check the screen pixel total, receiving cards, program format and update method against the KP1-specific specification.
The original manufacturer document and image are retained below. Use the Kystar website for compatible software resources.

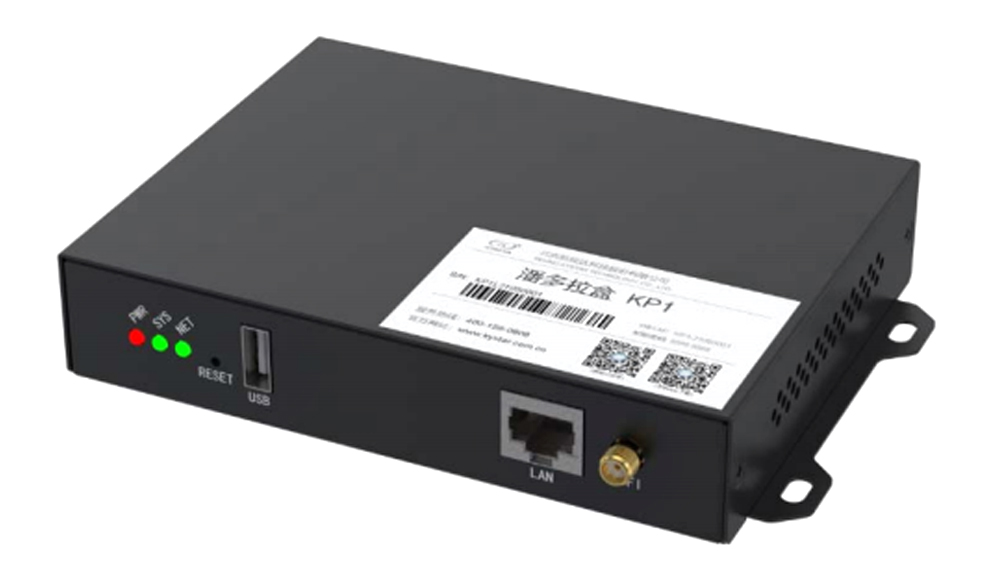

Product image and specification download
Download Specification:
Kystar Pandora KP1 LED Display Multimedia Player Specification
