Overview

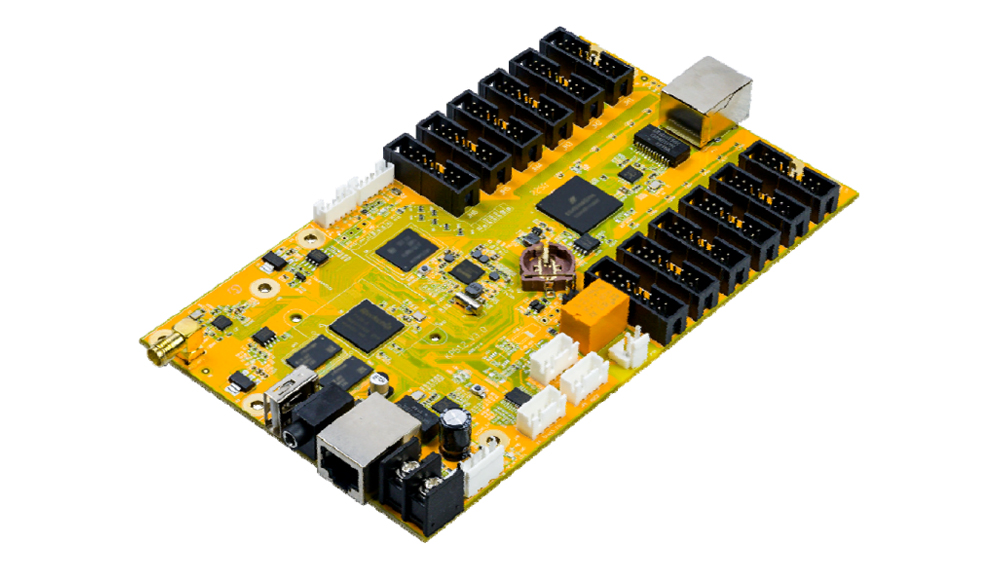

KYSTAR Pandora KPB12 is a new generation of LED multimedia playback card that integrates sending card, receiving card and playback terminal; compared with the traditional synchronous playback solution, it can reduce the need for a computer playback terminal, and it is easy to control at any time. A receiving card can be directly connected to the screen; support functions such as 60Hz frame rate output, stable word movement and remote control of power supply. Widely used in advertising display fields such as light pole screen, door head screen, car screen and so on.
Features
It comes with 12 pcs HUB75E ports, the single card carries 200000 pixels, supports level-connected card receiving, and the maximum load is 600000 pixels
Support discounted playback，the maximum width is 16384 pixel, and the maximum is 8192 pixel
WIFI, Ethernet port, U disk multiple communication methods
Built-in 8GB (users can use 4G), support U disk expansion
3.5mm audio output, audio and video synchronization output
Support high-definition video hard decoding, 60Hz frame rate output is stable
upport multiple windows and multiple materials to play on the screen at the same time
One group of relay controllers is standard, which can remotely control the power supply.
Support 4G access to the Internet (optional)，support Kares cloud publishing system
Onboard brightness sensor interface, automatically adjust screen brightness according to ambient brightness
Support secondary development and can meet the needs of various scenarios
The new Kommander PE program editor, drag and drop operation, do what you want
The concise APP fully controls screen adjustment, editing, and management, and you can play with the big screen at your fingertips.
Download Specification:
Kystar KPB12 LED Display Control Card Specification
