Linsn RV201 receiver for LED cabinets with 20 RGB groups, 32 serial groups, brightness calibration and a documented layout of up to 1024 × 256 pixels.
Selection and setup
Choose the output mode that matches the module interface. The maximum dimensions are conditional on the LED screen design; check the cabinet wiring before transferring a configuration.
Technical specifications
| Parameter | Specification |
|---|---|
| Maximum card layout | Up to 1024 × 256 pixels |
| RGBR′ data | 16 groups |
| RGB data | 20 groups |
| Serial data | 32 groups |
| Diagnostics | Network cable bit-error test |
Product images and resources

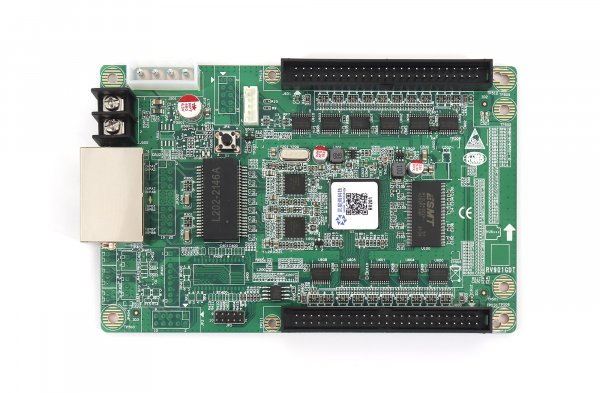

LINSN RV201 LED Receiving Card Specification
Frequently asked questions
1. How many parallel RGB groups does the RV201 provide?
It supports 20 groups in RGB mode and 16 in RGBR′ mode. These are different wiring modes.
2. Can it drive serial-data modules?
Yes. Up to 32 serial groups are listed. Check the module pinout against the card configuration.
3. How can I check the cabinet data link?
The card supports a network cable bit-error test. Use it when diagnosing intermittent data between the sender and cabinet.
