LINSN RV998 LED Screen Receiver Control Card

$15.30

RV998 is a product specially designed for standardization manufacturers, free transfer board design, fully compatible with RV908 function, the same size, equivalent to RV901 plus HUB75 (support 32 scan) adapter plate.

228 in stock

Features of LINSN RV998 LED Screen Receiver Control Card:

1) On-board 8 HUB75 (supports 32 scans) 16P interface;

2) The single card can support 256X1024 or 512X512 pixels.

3) A single card supports a maximum of 16 groups of RGB data;

4) Support 138 decoding, 595 serial decoding and other decoding methods;

5) Supports single-card color space conversion, chroma-by-point correction, and brightness-by-point correction;

6) Support high refresh and high grayscale display;

7) Support universal driver chip, most PWM driver chip;

8) Support configuration file readback;

9) Support network cable error test;

10) Meet EU RoHs standards;

11) Conform to the EU CE-EMC Class B standard;

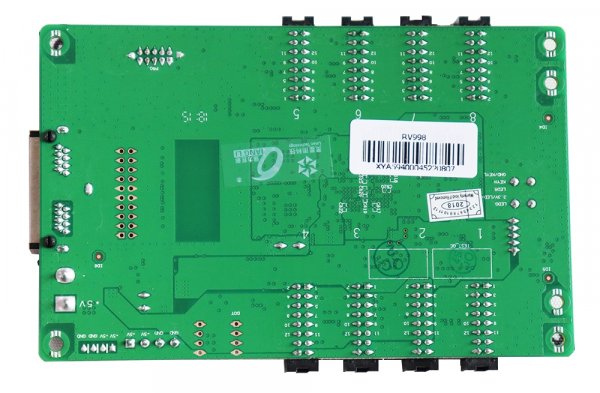

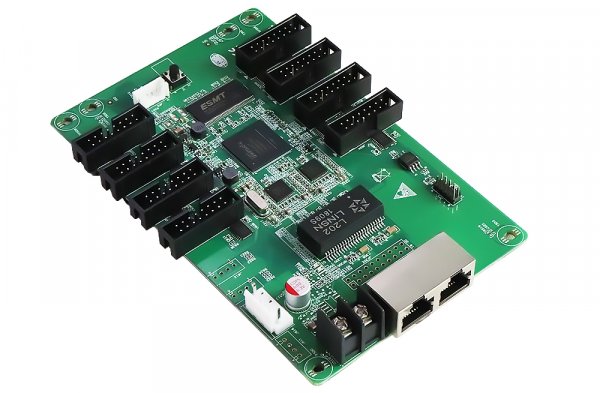

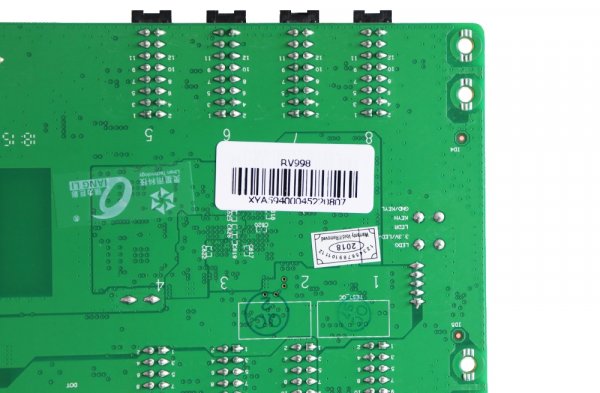

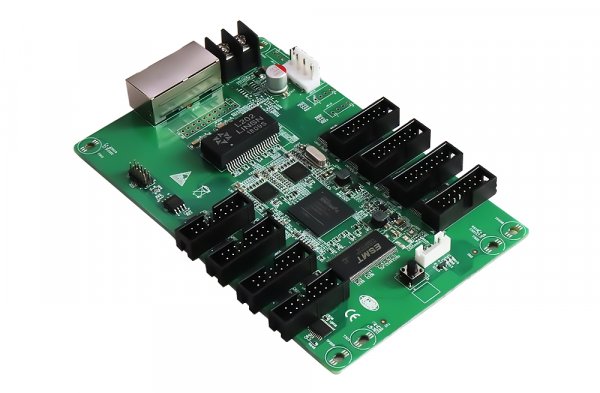

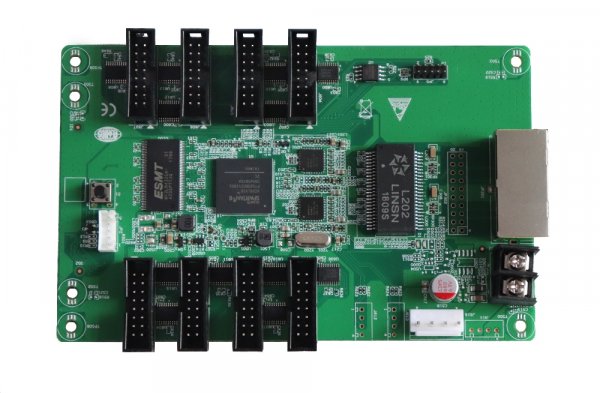

Most pictures of LINSN RV998 LED Screen Receiver Control Card：

LINSN RV998 LED Screen Receiver Control Card

Download Specification

LINSN RV998 LED Screen Receiver Control Card Specification

Weight	0.35 kg
