Overview

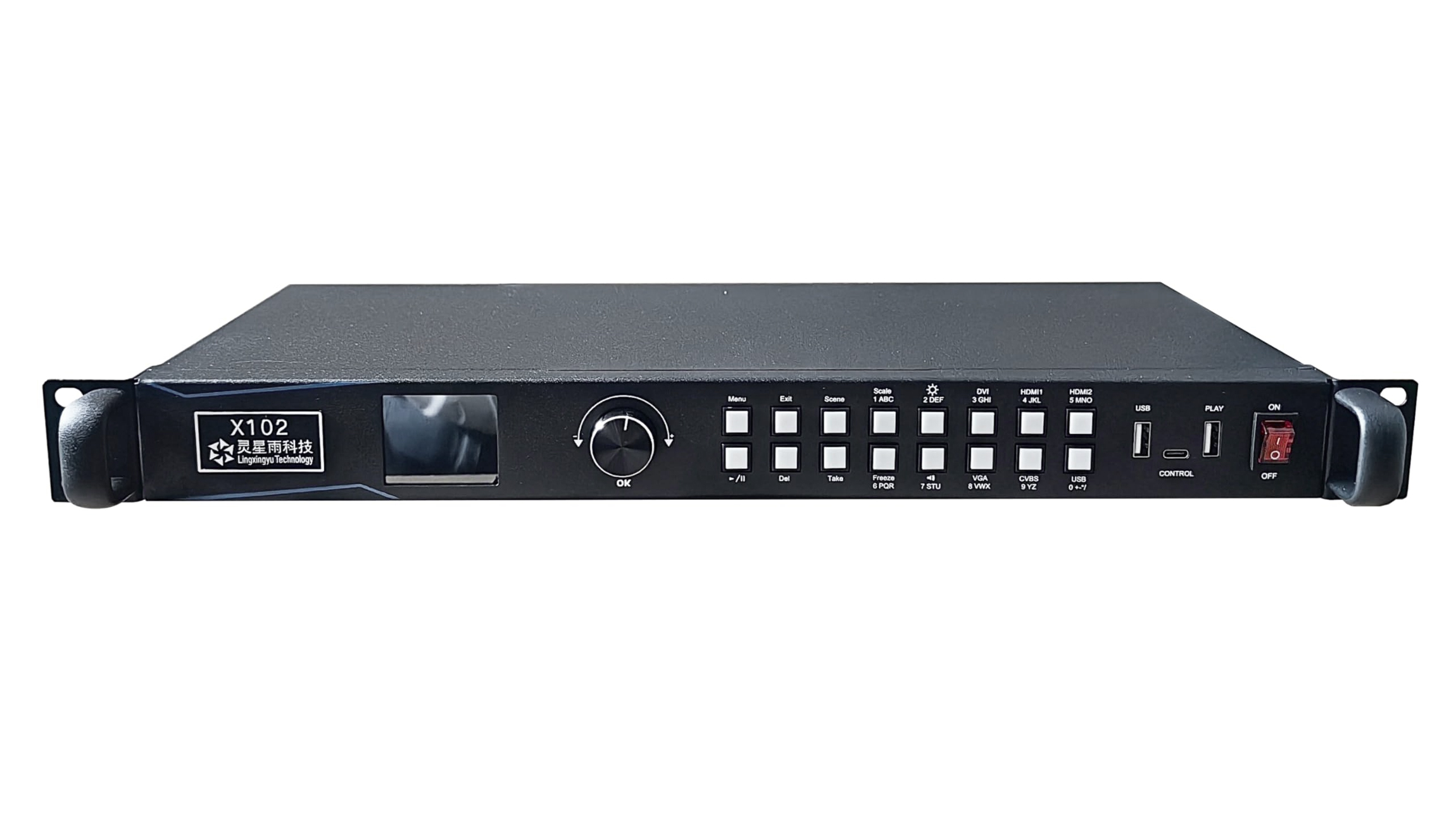

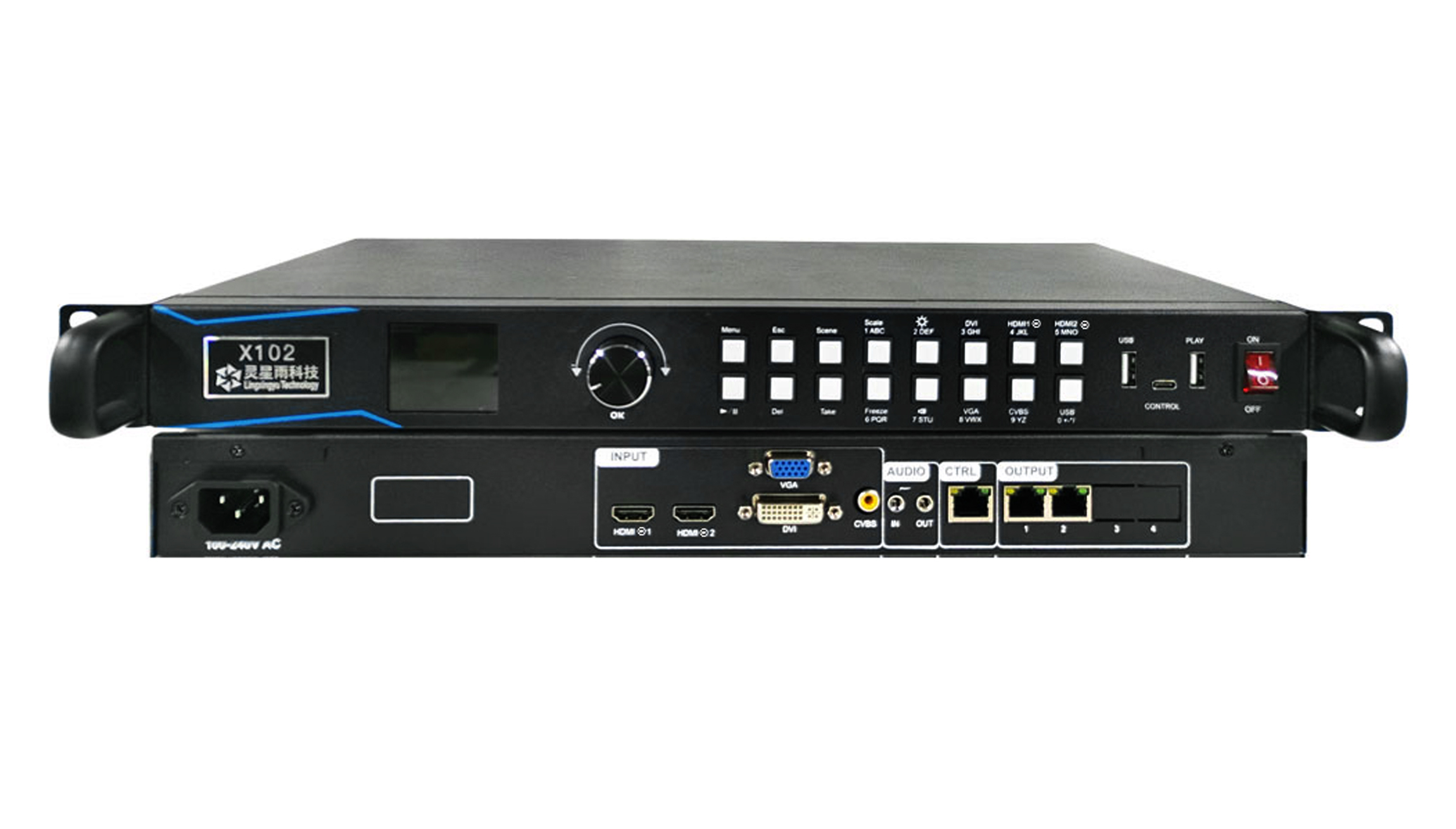

X102 designed for small fixed installation LED screen, which is a cost-effective all-in-one video processor. It integrates sender, video processor and supports USB-flash-drive plug and play. It supports up to 1.3 million pixels: up to 3840 pixels horizontally or 1920 pixels vertically.
Functions and features
1. With two outputs, supports up to 1.3 million pixels;
2. Supports up to 3840 pixels horizontally or 1920 pixels vertically;
3. Up to 100 scene can be saved, and 10 quick paths for calling scenes;
4. Supports USB-flash-drive plug and play;
5. Supports video source hot-backup;
6. Supports switching signal; switching scene instantly; switching audio and video simultaneously;
7. Support audio in/out;
8. Supports brightness adjustment;
9. Supports freeze function;
10. Supports both cable and USB upgrade;

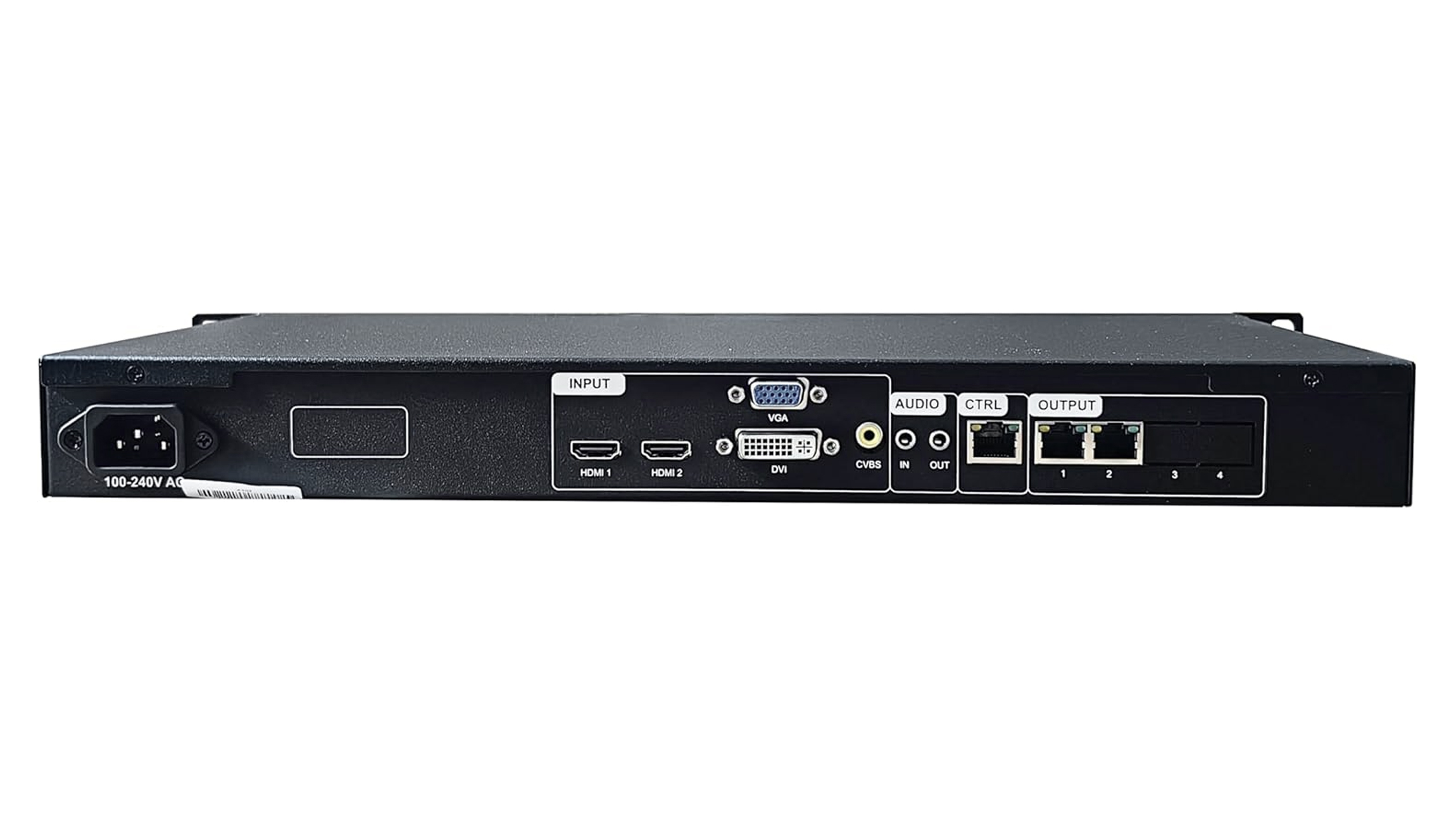

11. Various input: 2HDMI1.3, 1 DVI, 1 VGA, 1 CVBS;
12. Can be set up by network cable and typc-C cable;
13. Supports schedule table;
14. Settings can be backed up by USB flash drive and cloud;
15. Settings can be restored by USB flash drive and cloud ;
16. Supports issuing license;
17. Supports testing and displaying network output connection.
Download Specification:
Linsn X102 video processor Specification
