Overview

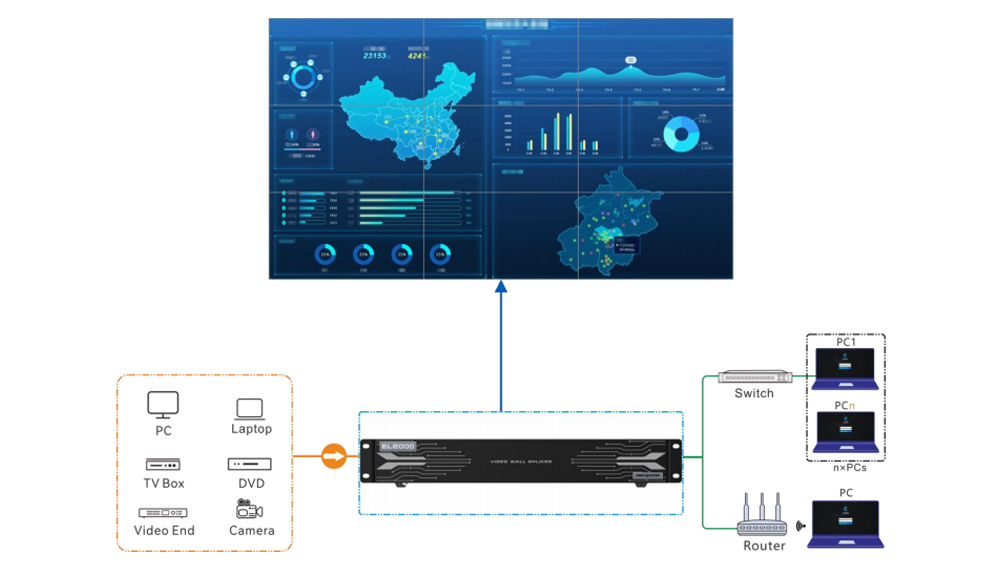

The EL2000 is a high-performance video wall splicer with a pure hardware architecture. Based on the powerful hardware FPGA system architecture and modular design, the EL2000 features a stable and highly efficient pure hardware architecture, and supports the access of multiple input sources.
The EL2000 supports 4K ultra HD inputs and outputs, multi-screen and multi-layer management, input and output EDID management and high-definition scrolling OSD text and more, meeting various visual scene requirements in conference rooms.
In addition, the EL2000 adopts the B/S architecture and can be accessed and controlled via tablets, kiosks, and PCs and more, without the need to install an application program. Moreover, online collaboration of multiple users is supported and the Web page response speed is very fast, which greatly improves on-site setup efficiency
Features
Multi-screen management for centralized control
—Each screen can have its output resolution.
—Output mosaic
—Simple screen configuration using a single card and connector or using multiple connectors on different cards
—LCD bezel compensation
Diverse display possibilities for flexible configuration
—Multi-layer display
—High-definition scrolling text
—OSD settings on a single screen
—Channel logo management
—Input source cropping and renaming after cropping
—Auto decryption of HDCP-encrypted sources
—Decimal frame rates supported
—Input source grouping management
—Up to 2,000 presets
—Scheduled playback of preset playlist
Web-page control, easy, friendly and convenient
—Web control
—Firmware update on Web page
—Self-test for fault detection
—Auto monitoring and alarms
Download Specification:
NovaStar EL2000 Video Wall Splicer Specification
