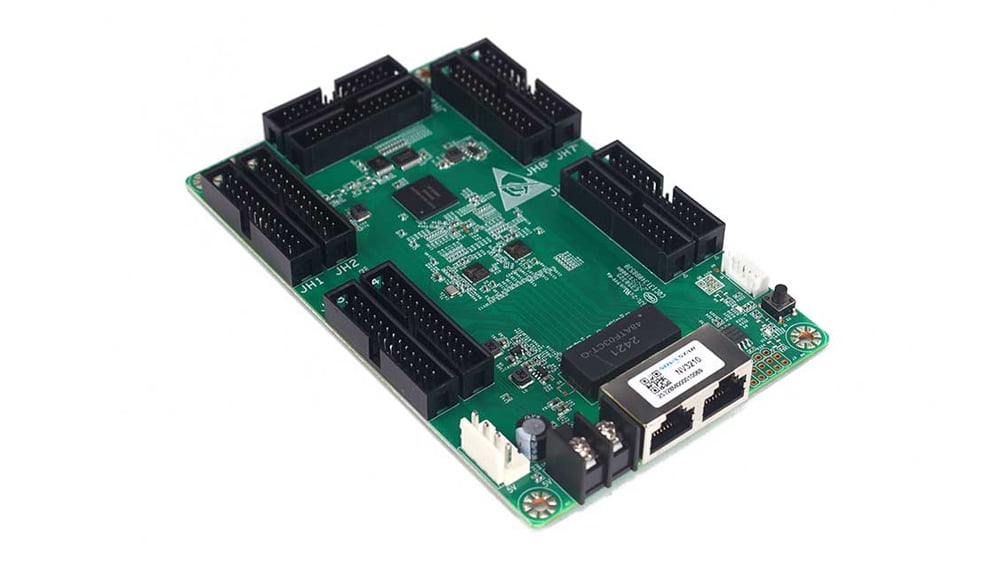

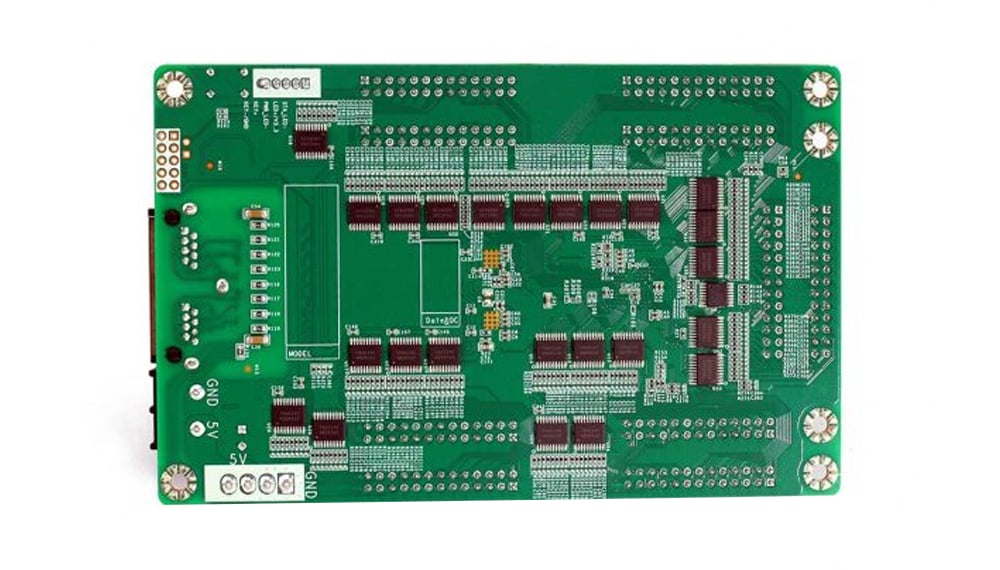

NovaStar NV3210 LED Display Receiving Card Overview
The NovaStar NV3210 is a receiving card for LED display cabinets. It combines 10 standard HUB320F connectors with display-processing, calibration, monitoring, and redundancy tools in a single card.
For buyers comparing LED receiving cards, the NV3210 brings together low latency, HDR, accurate color control, flexible pixel data output, and service-friendly diagnostics. Check the compatibility notes and official specification below before ordering.
Key Specifications
| Item | NV3210 Details |
|---|---|
| Product type | LED display receiving card |
| Manufacturer | Xi’an NovaStar Tech Co., Ltd. |
| Hub connectors | 10 standard HUB320F connectors |
| RGB real pixel data | Up to 40 groups |
| 3-LED sub-pixel data | Up to 40 groups |
| 4-LED sub-pixel data | Up to 30 groups |
| Core display functions | Color Management, 18bit+, HDR, calibration, low latency, 3D, RGB gamma adjustment, and 90-degree image rotation |
| Monitoring | Temperature, voltage, and bit error detection |
Display Performance Features
- Color control: Supports standard and custom color gamuts through Color Management.
- Image quality: Includes 18bit+, HDR, pixel-level brightness and chroma calibration.
- Uniformity: Provides quick adjustment of dark or bright lines and multi-batch adjustment.
- Responsive output: Supports low latency and 3D applications.
- Flexible correction: Offers individual gamma adjustment for red, green, and blue.
- Installation flexibility: Supports 90-degree image rotation.
Maintenance and Reliability
Maintenance Tools
- Automatic module calibration
- Module auto light-up with dedicated firmware
- Module Flash management
- One-click application of calibration coefficients stored in Module Flash
- Mapping 1.1 and receiving-card stored-image settings
- Temperature and voltage monitoring
- Bit error detection
- Firmware program and configuration parameter readback
Backup Protection
- Dual NCP backup
- Loop backup
- Dual backup of configuration parameters
- Dual program backup
Compatibility Checklist
Before replacing an existing LED screen receiving card or specifying the NV3210 for a new cabinet, confirm the cabinet HUB layout, connector pinout, firmware requirements, control-system compatibility, and required pixel-data groups. The official PDF below provides the detailed information needed for technical approval.
Browse more LED receiving cards or view other NovaStar products for system planning.
NovaStar NV3210 FAQ
What is the NovaStar NV3210?
The NV3210 is an LED display receiving card developed by NovaStar. It receives control data and drives compatible LED display modules through 10 standard HUB320F connectors.
Does the NV3210 support HDR and low latency?
Yes. Its display features include HDR, low latency, 18bit+, Color Management, 3D, calibration, and individual RGB gamma adjustment.
How many pixel-data groups does the NV3210 support?
It supports up to 40 groups of RGB real pixel data, 40 groups of 3-LED sub-pixel data, or 30 groups of 4-LED sub-pixel data.
How do I confirm whether the NV3210 fits my LED display?
Match the receiving card against the cabinet HUB layout, connector pinout, firmware, control system, and output requirements. Use the official specification PDF or contact the store with your cabinet and module details before ordering.
Download the Official Specification
Download the NovaStar NV3210 LED Display Receiving Card specification (PDF).
