P10 Outdoor Front Service LED Sign
1. P10 Outdoor Front Service LED Sign—1920*640mm size, 8000nits brightness, very reliable and high quality.
2. P10 Outdoor Front Service LED Sign Cabinet–1.2mm Steel Plate, High Waterproof grade and High Precision.

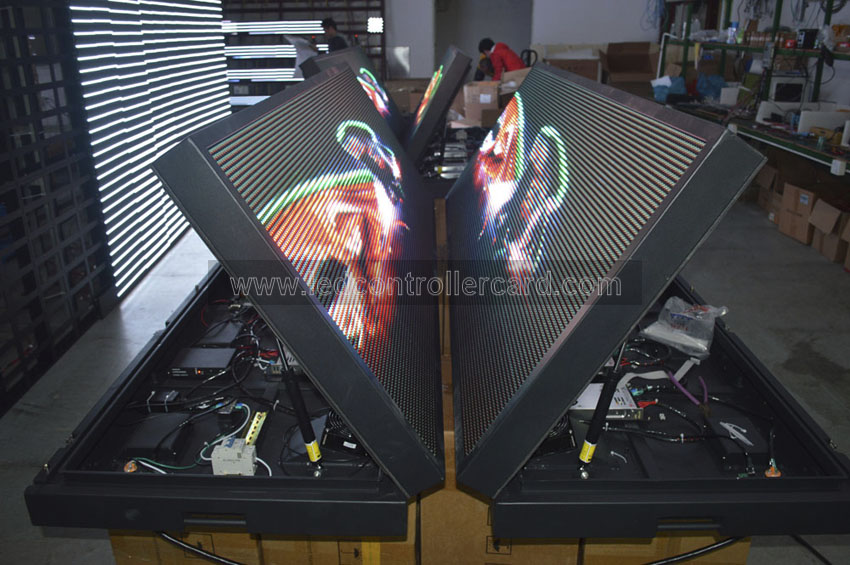

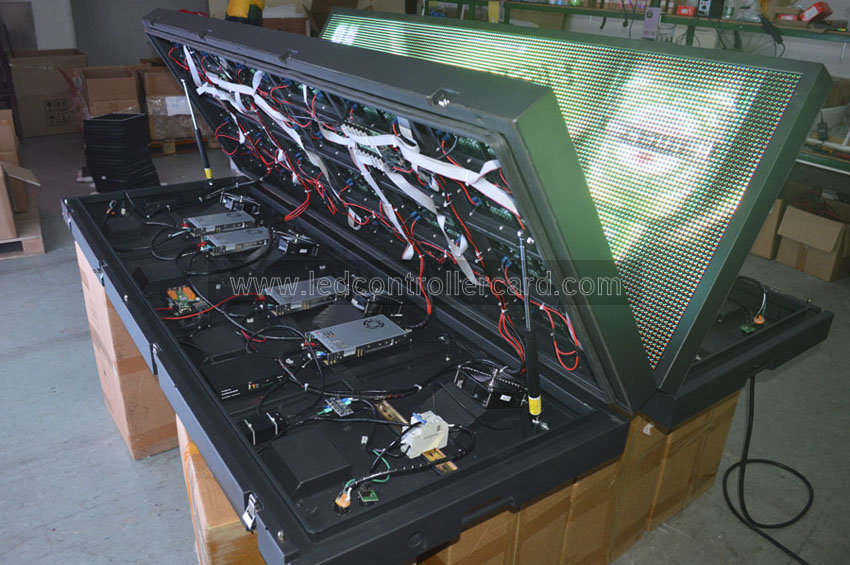

The P10 Front Service LED Sign Cabinet is well design and made with high precision CNC machine, which ensure its precision .The high quality Hydraulic pole make sure the cabinet is very easy to open for maintain work, as well the thick plastic sealing ring is ensure its high IP Grade.

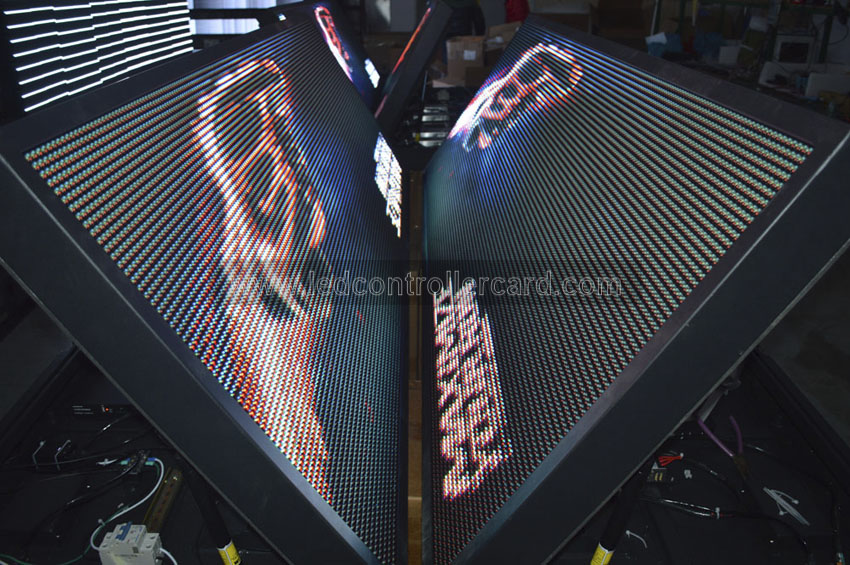

3. P10 Outdoor LED Sign Moduel DIP346 320*160mm 8000nits brightness, high Reliability. Pure Black Module Veil.
The P10 Outdoor LED Sign are used high standard DIP346 LED lamp, which will ensure the high brightnesss, high color and brightness uniformity as well as high reliability. High-grade module plastic shell and veil pure black plastic veil while diffuse ambient light ensure the high contrast rate. The sound Waterproof aprons ensured the waterproof grade.
4. Control System—- Novastar X65 Sync/Async Control Box work with MFN300 + MTH310 and NS048C
Novastar X65 is a dual mode Asynchronous Controller, its can store the source and also can display synchronously with the control PC. While the MFN300 Multi-Function card work with temperature sensor MTH310 and Ambient light sensor NS048C can endow the LED Display Screen with the function of auto control brightness and Cooling Fan Speed.
5. Power System—- Meanwell RSP-320-5 Power Supply + CE/UL Listed Power Cable + Connectors + Air Switcher.
The Front Service LED Sign needs high reliability, Meanwell power supply is well known for its high reliability and low failure rate as well as good warranty service. While the UL/CE listed Power cable is standard 3*4mm so its more safety and longer lifetime. Reduce the ratio of fire caused by overload. The Air Switcher enable switch off the power supply while repairing also take care of safety.
6. The PoE device— is useful and convinient for powering some extention device.
The PoE device is a very useful and convinient when adding some extention device, for example a monitor camera , it make the addon device don’t need to add seperate power supply.
7. Cooling System—High Speed and Reliable Cooling Fans.
8. P10 Outdoor Front Service LED Sign 1920*640mm Specification:
|
LED Module |
|
|
Module |
Retop-P10-OF4L-1R1G1B32x16 |
|
Pixel Pitch |
10 |
|
Pixel configuration |
DIP346 1R1G1B |
|
Density |
10,000 pixel/㎡(real pixel) |
|
Module Resolution |
32(L) * 16(H) |
|
Module Dimension |
320(L) * 160(H) * 34(D) |
|
Driving Mode |
Constant current, 1/4 Scan |
|
Module Mask |
Pure Black Mask -High Contrast Screen |
|
LED Cabinet |
|
|
Module Quantity in a Cabinet |
6(L) *4(H) |
|
Display Area Size |
1920（L）* 640（H） |
|
Cabinet Dimension |
1980（L）* 700（H）* 148(D)mm (30mm Protection Border) |
| Cabinet Resolution |
192(L) * 64(H) |
|
Cabinet Material |
Iron |
|
Cabinet Weight |
≈75kg/pc |
|
Gross Weight |
120kg |
|
Electricity Parameter |
|
|
Optical Ratings |
|
|
Brightness |
≥8,000 cd/㎡ |
|
Viewing Angle |
120° |
|
Best Viewing Distance |
≥8m |
|
Gray Grade |
16,384 levels for each color |
|
Display Color |
4,398,046,511,104 |
|
Brightness Adjustment |
100 grades by software or automatically by sensor |
|
Power Supply |
|
|
Operation Power |
AC100-240V 50-60Hz Switchable |
|
Max. Power Consumption |
900W/PC |
|
Average Power Consumption |
≈450W/PC |
|
Control System |
|
|
Correction Scale Level |
16bits |
|
Frame Frequency |
≥60Hz |
|
Screen Refresh Frequency |
≥3,600Hz |
|
Gamma Correction |
-5.0～5.0 |
|
Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
|
Control Distance |
100m(Ethernet cable); 10KM(optical fiber cable) |
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|
Color Temperature |
5000—9300 adjustable |
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|
Reliability |
|
|
Working Temperature |
-20～+60 ºC |
|
Stored Temperature |
-30～+70 ºC |
|
Working Humidity |
10%～90% RH |
|
Lifetime |
100,000 hours |
|
MTBF |
5000 hours |
|
Continuous Working Time |
≥72 hours |
|
Protection Grade |
IP65(Front Side); IP54(Rear Side) |
|
Out of Control Pixel Rate |
≤0.01% |
We offer some deep customized options on your requirements, So Please Contact our sales engineer online or email us at : [email protected], telling us your detailed requirement and you will get our corresponding Quoations.
