Notice before order:
1) Parts included: Die-Cast Aluminum Caibnet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
P3 Indoor Rental LED Display Video Demo

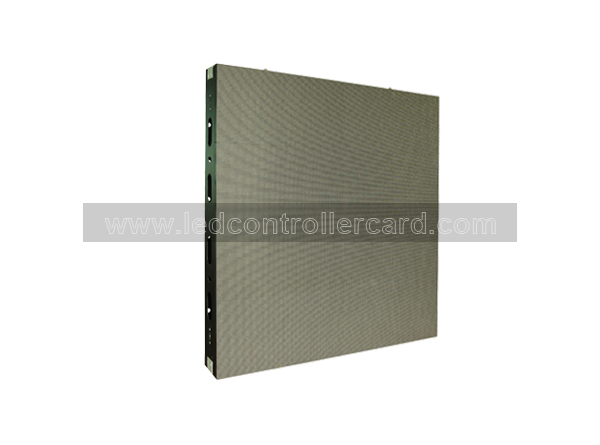

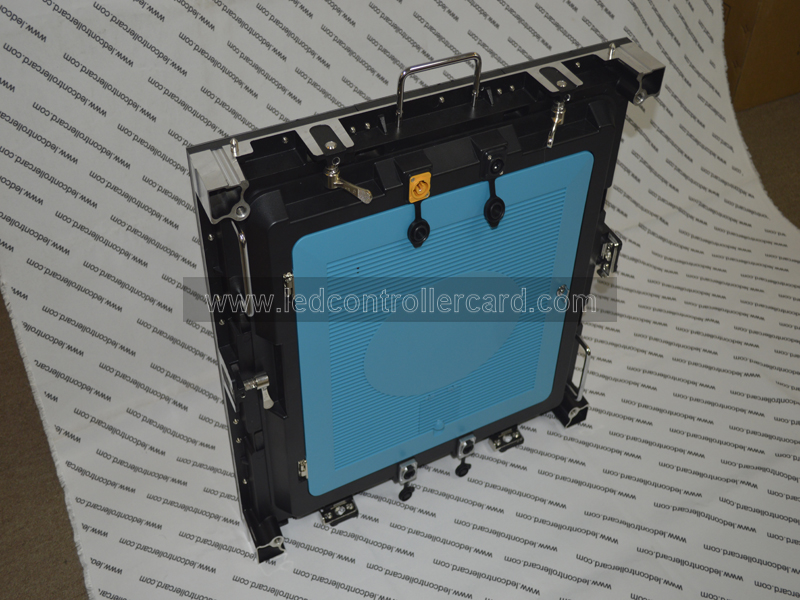

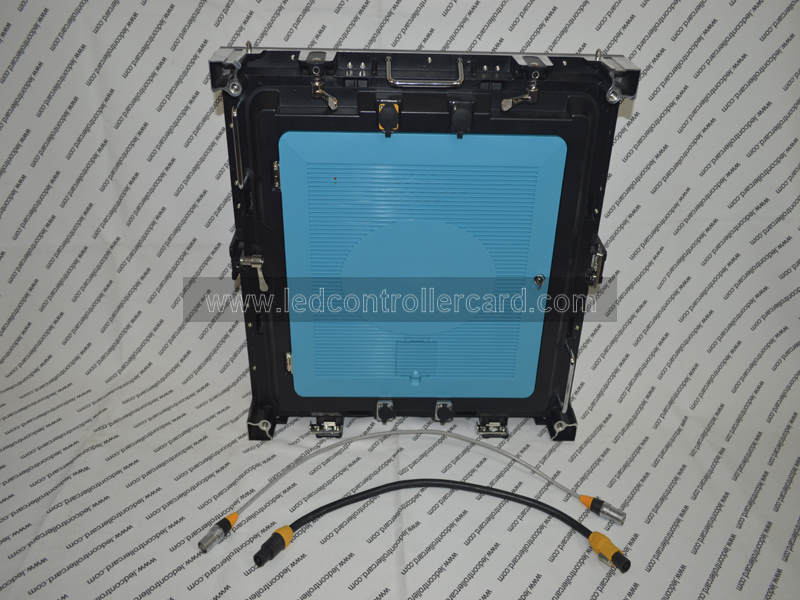

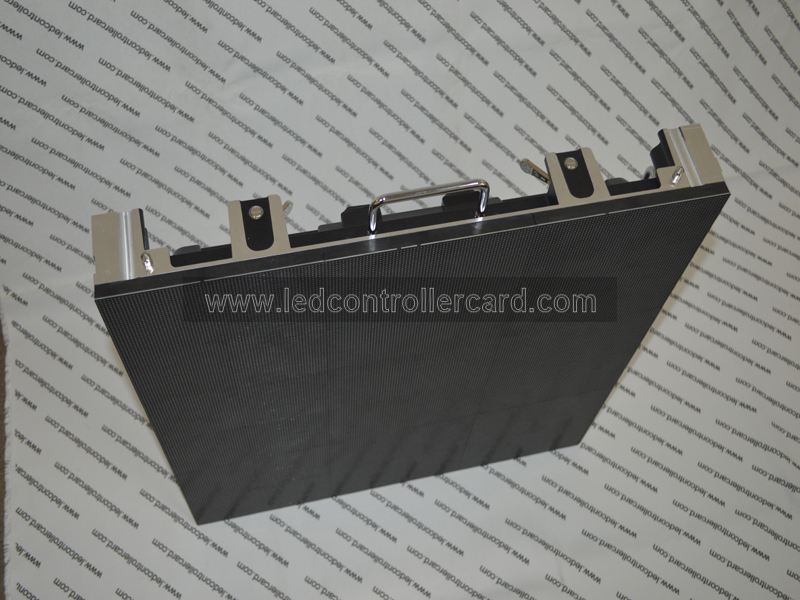

Features of P3 Indoor Front Service Rental LED Panel:
1)Magnetic front service, easy to assemble and disassemble the modules from front side.
2) Slim cabinet, only 85mm thick.
3) Light weight, only 8.5KG for 576x576mm cabinet.
4) Non-gaps between cabinets, due to accurate-made die-cast aluminum cabinet.

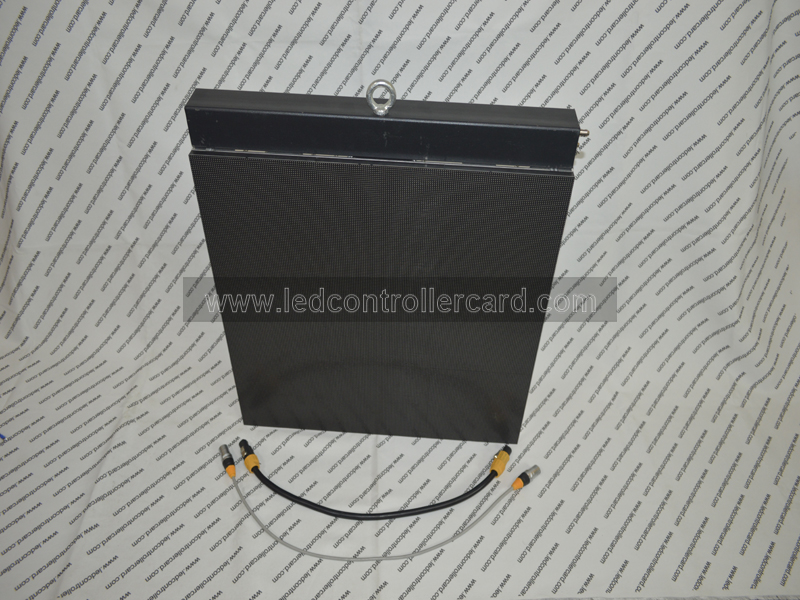

5) Fast lock design, good rental hanging solution.
Applications of P3 Indoor Front Service Rental LED Panel:
Indoor rental LED panel
Indoor fixed installation LED panel requires front service
Parameters of P3 Indoor Front Service Rental LED Panel:
|
Item |
Parameter |
Remark |
|
Pixel Pitch |
3mm |
|
|
Cabinet Material |
Die-cast aluminum |
|
|
Color |
Black |
|
|
Cabinet Size |
576*576 mm |
|
|
Cabinet Resolution |
192*192 pixels |
|
|

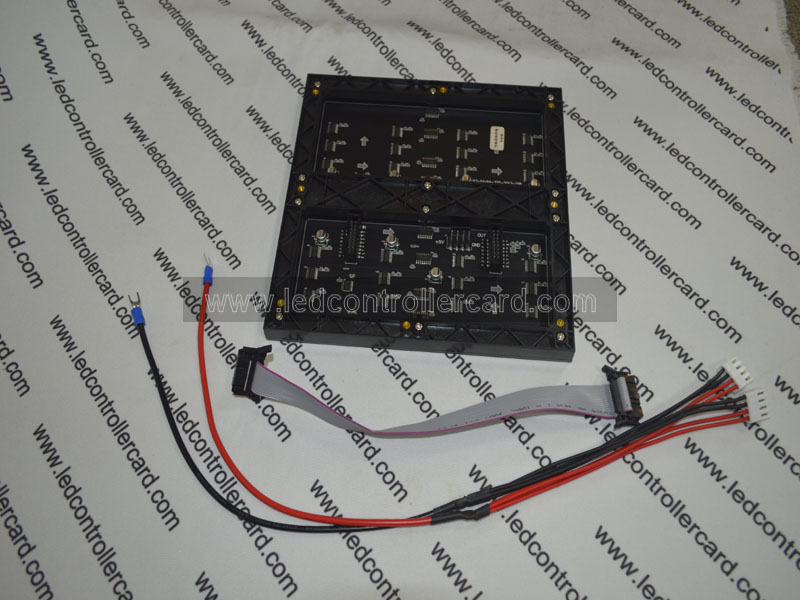

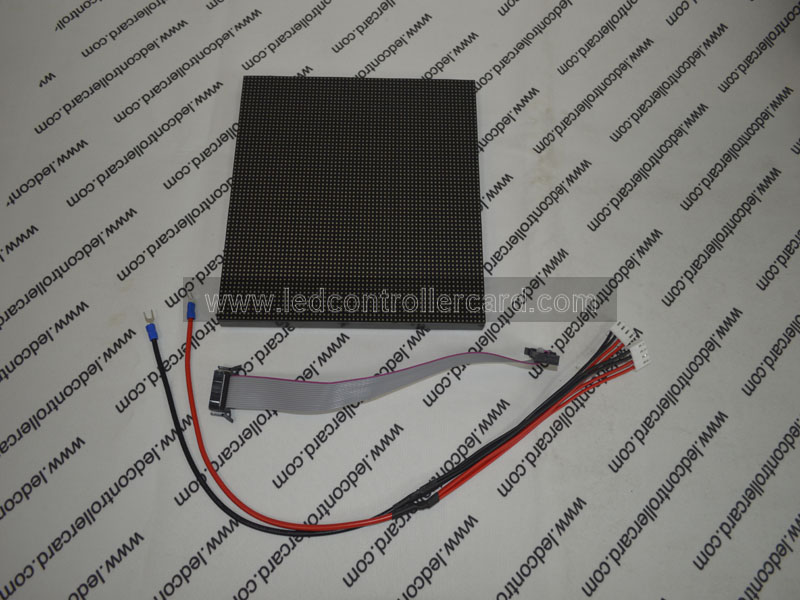

Module quantity |
3*3 |
|
|
Density |
111,111pixels/㎡ |
|
|
White balance brightness |
≥800CD/㎡ |
|
|
Color temperature |
6000K——8000K |
|
|
Viewing angle |
H:120;V:120 |
|
|
Protection grade |
Front/Rear:IP31/IP31 |
|
|
Non-Flatness |
＜0.2mm |
|
|
Module interval |
＜0.2mm |
|
|
Cabinet Weight |
8.5kg/Cabinet |
With power supply
|
|
Packaging Gross Weight(KG) |
89kg(Estimated data) |
6pcs / Case |
|
Packaging dimension |
645*630*740mm(6cabinet in one case) |
6pcs / Case |
|
Maximal power/㎡ |
330W/㎡ |
|
|
Average power/㎡ |
110W/㎡ |
|
|
Frame frequency |
≥60Hz |
|
|
Refresh frequency |
1920Hz |
Depending on the selected drive chipand control system |
|
Gray grade |
13bit |
|
|
Brightness adjusted |
256 grade by auto-optic/color &8 grade by hand |
|
|
Input signal |
RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
|
|
Control system |
Novastar / Linsn / Colorlight |
|
|
System supports |
Windows XP,WIN 7 |
|
|
MTBF |
>5000h |
|
|
Life-span |
>100000h |
|
|
Speckles rate
|
<0.0002 |
