P4.81 Outdoor HD Rental LED Display 500X500mm Die-cast Magnesium Cabinet Notice before order:
1) Parts included: waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

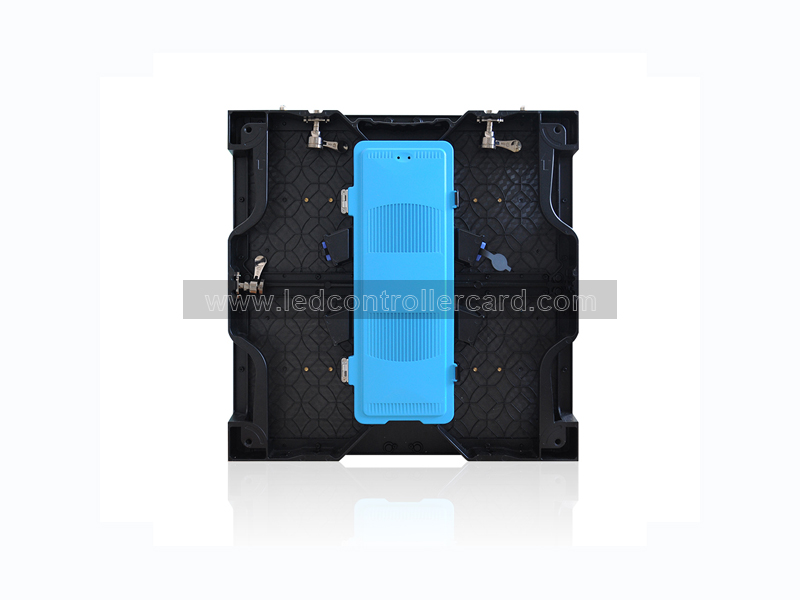

P4.81 Outdoor HD Rental LED Display 500X500mm Die-cast Magnesium Cabinet
4.81 Outdoor HD Rental LED Display 500X500mm Die-Cast Magnesium Cabinet Features:
1) Small pixel pitch 4.81mm for SMD outdoor LED screen, good solution for outdoor rental LED screen LED display.
2) 4.81mm is one of the pixel pitches of usual indoor LED screens. Therefore, it is a very good solution for rental LED screen for both outdoor and indoor use.

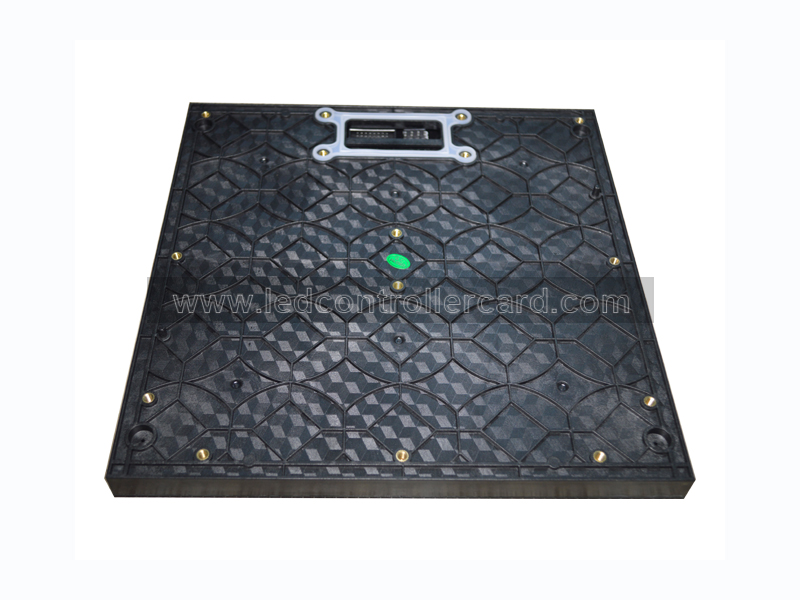

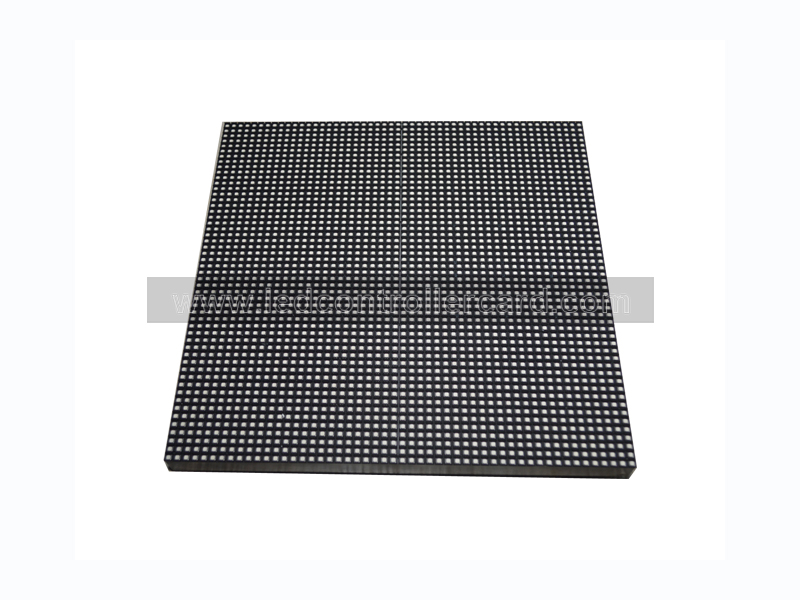

3) The module size is 250x250mm, which is of our universal module series. It is convenient for clients to promote it. What is more,users can update their old LED screen made of our universal modules easily.
4) Reasonable PCB design with good heat radiation and achieve long life span.
4.81 Outdoor HD Rental LED Display 500X500mm Die-Cast Magnesium Cabinet Parameters:
| LED Module | |
| Pixel Pitch | 4.81 |
| Pixel configuration | 1R1G1B |
| Density | 43,222 pixels/㎡(real pixel) |
| Module Resolution | 52(L) * 52(H) |
| Module Dimension | 250(L) * 250(H) * 20(D) |
| Driving Mode | Constant current, 1/13duty |
| Module Mask | Pure black mask—high contrast screen |
| LED Cabinet | |
| Module Quantity in a Cabinet | 2(L) * 2(H) |
| Cabinet Dimension | 500（L）* 500（H）* 80(D)mm |
| Cabinet Resolution | 104(L) * 104(H) |
| Cabinet Material | Dia-Cast Magnesium |
| Cabinet Weight | ≈9KG |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥5000 cd/㎡ |
| Viewing Angle | 120° |
| Best Viewing Distance | ≥5m |
| Gray Grade | 16,384 levels for each color |
| Display Color | 4,398,046,511,104 |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Power Supply | |
| Operation Power | AC100-240V 50-60Hz Switchable |
| Max. Power Consumption | 700W/㎡ |
| Average Power Consumption | ≈235 W/㎡ |
| Control System | |
| Correction Scale Level | 16bits |
| Frame Frequency | ≥60Hz |
| Screen Refresh Frequency | ≥960Hz |
| Gamma Correction | -5.0～5.0 |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100m(Ethernet cable); 10KM(optical fiber cable) |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
| Reliability | |
| Working Temperature | -20～+60 ºC |
| Stored Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥72 hours |
| Protection Grade | IP65(front side); IP54(rear side) |
| Out of Control Pixel Rate | ≤0.01% |
Download:
4.81 Outdoor HD Rental LED Display 500X500mm Die-Cast Magnesium Cabinet Specification
