P5 Indoor Die-cast Rental LED Display Screen Cabinet 640X640 Notice before order:
1) Parts included: Die-cast aluminum cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tarrif: Our price does not include any tarrif or duties at the destination, you should do import customs clearance and pay all tarrif or duties locally.
P5 Indoor Die-cast Rental LED Display Screen Cabinet 640X640 Features:
1)Die-cast Aluminum rental cabinet, light weight,easy to assemble and disassemble.
2) Slim cabinet, only 80mm thick.
3) Light weight, only 13KG for 640x640mm die-cast magnesium cabinet.
4) Non-gaps between cabinets, due to high accurate CNC processing technology.
5) Fast lock design, good rental hanging solution.
P5 Indoor Die-cast Rental LED Display Screen Cabinet 640X640 Applications:
Indoor rental LED panel
Indoor fixed installation LED panel
P5 Indoor Die-cast Rental LED Display Screen Cabinet 640X640 Parameters:

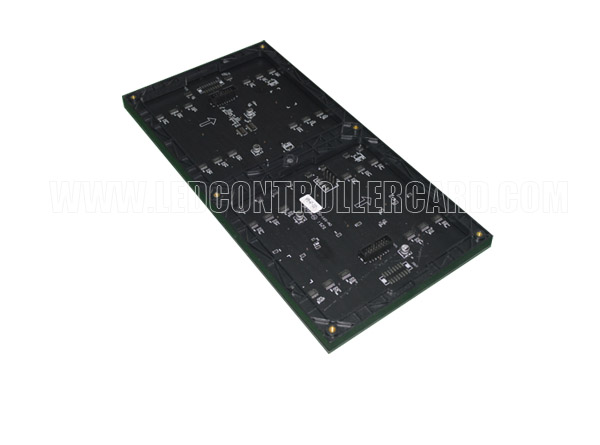

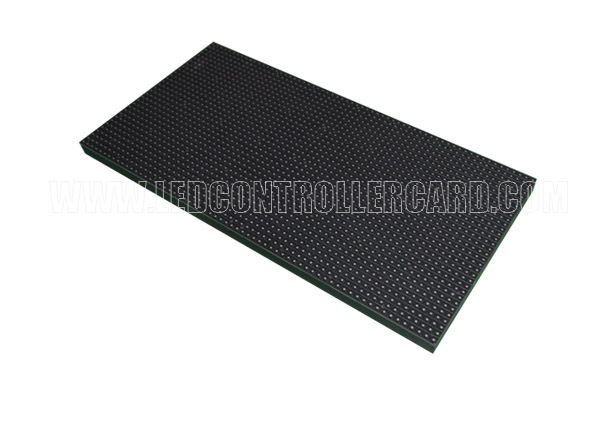

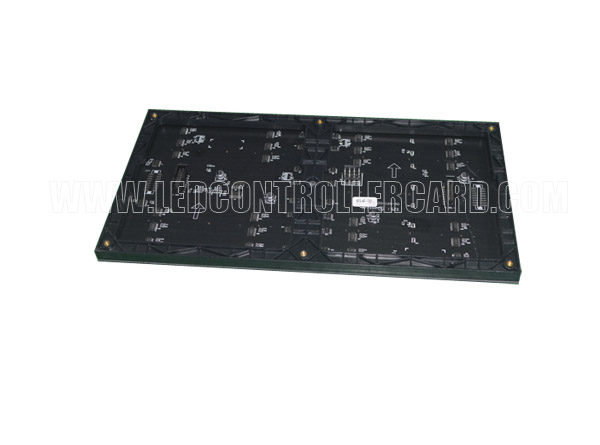

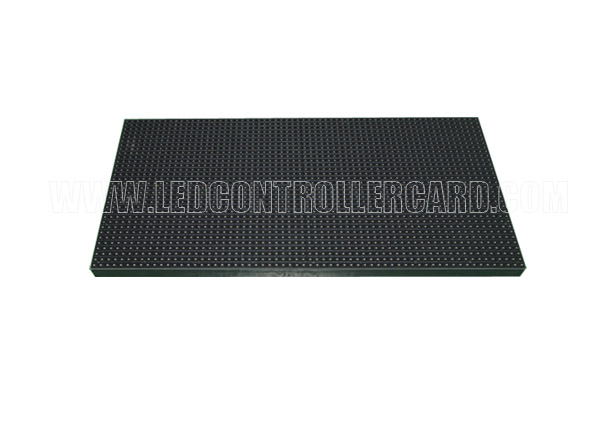

| LED Module | |
| Pixel Pitch | 5 |
| Pixel configuration | SMD2121 1R1G1B |
| Density | 40,000 pixels/㎡(real pixel) |
| Module Resolution | 64(L) * 32(H) |
| Module Dimension | 320(L) * 160(H) * 20(D) |
| Driving Mode | Constant current, 1/16duty |
| Module Mask | Pure Black Mask -High Contrast Screen |

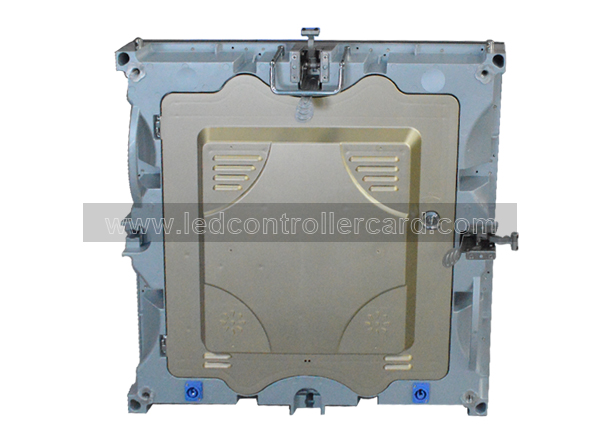

| LED Cabinet | |
| Module Quantity in a Cabinet | 2(L) *4(H) |
| Cabinet Dimension | 640（L）* 640（H）* 80(D)mm |
| Cabinet Resolution | 128(L) * 128(H) |
| Cabinet Material | Die-Casting Aluminum |
| Cabinet Weight | ≈13 |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥800 cd/㎡ |
| Viewing Angle | 120° |
| Best Viewing Distance | ≥5m |
| Gray Grade | 16,384 levels for each color |
| Display Color | 4,398,046,511,104 |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Power Supply | |
| Operation Power | AC100-240V 50-60Hz Switchable |
| Max. Power Consumption | 800W/㎡ |
| Average Power Consumption | ≈270W/㎡ |
| Control System | |
| Correction Scale Level | 13bits |
| Frame Frequency | ≥60Hz |
| Screen Refresh Frequency | ≥1920Hz |
| Gamma Correction | -5.0～5.0 |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100m(Ethernet cable); 10KM(optical fiber cable) |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
| Reliability | |
| Working Temperature | -20～+60 ºC |
| Stored Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥72 hours |
| Protection Grade | IP31 |
| Out of Control Pixel Rate | ≤0.01% |
