Notice before order:
1) Parts included: waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tarrif: Our price does not include any tarrif or duties at the destination, you should do import customs clearance and pay all tarrif or duties locally.

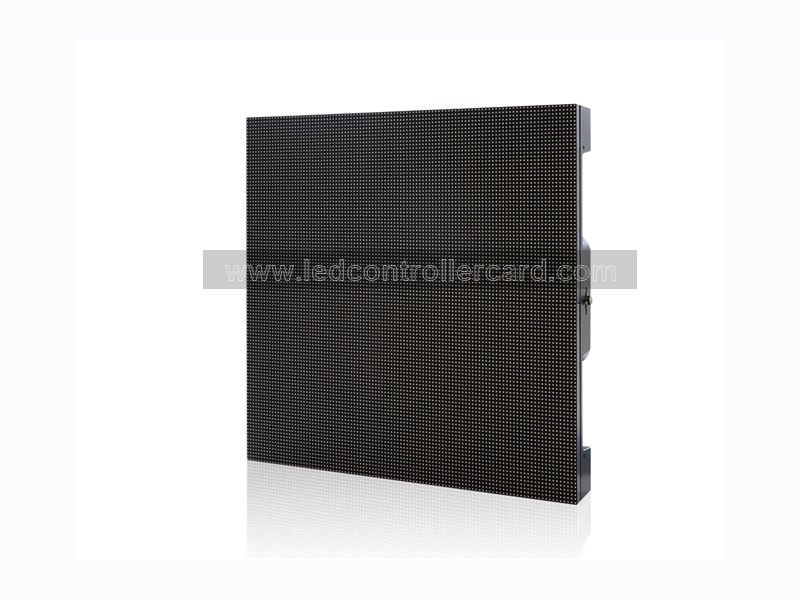

P5 Outdoor High Definition Advertising LED Display LED Sign Features:
1) Adopting SMD2525 LED from Nationstar, ensuring high quality for the whole LED screen.
2) Perfect design of PCB,good heat emission capability,hence,stability of the P5 SMD2525 LED module.
3) Brightness 6000CD/m2, IP65 cabinet design, can be used for permanent exterior LED display project.
4) 5mm pixel pitch is suitable for outside commercial LED display and rental LED display.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Customized cabinet design,support all kinds of control system,LINSN, NOVASTAR,Colorlight, XIXUN,etc.
P5 Outdoor High Definition Advertising LED Display LED Sign Applications:
outside advertising LED display, outside rental LED display
P5 Outdoor High Definition Advertising LED Display LED Sign Specification:
|
LED Lamp Specification |
||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Condition | |
| Red |
SMD2525 |
450-600mcd |
120° |
620-625nm |
25℃,20mA |
|
| Green |
SMD2525 |
1000-1400mcd |
120° |
516-530nm |
25℃,20mA |
|
| Blue |
SMD2525 |
200-400mcd |
120° |
465-475nm |
25℃,20mA |
|
|
Module Parameter |
||||||
| Pixel Pitch | 5mm | |||||
| Pixel Configuration | SMD2525 | |||||
| Density | 40,000 pixels/㎡ | |||||
| Module Resolution | 64pixel(L) * 32pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm(H) * 25mm(D) | |||||
| Driving Mode | Constant current, 1/8 duty | |||||
| Module Mask | Pure black mask—high contrast screen | |||||
|
LED Cabinet |
||||||
| Module Quantity in a Cabinet | 2(L) * 4(H) | |||||
| Cabinet Dimension | 640（L）*640（H）* 150(D)mm | |||||
| Cabinet Resolution | 128(L) * 128(H) | |||||
| Cabinet Material | Steel | |||||
| Cabinet Weight | ≈16.5KG | |||||
|
Electricity Parameter |
||||||
| Optical Ratings | ||||||
| Brightness | ≥6,000 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal)； 120°(Vertical) | |||||
| Best Viewing Distance | ≥5m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion Colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Operation Power | AC100-240V 50-60Hz Switchable | |||||
| Max. Power Consumption | 980 W/㎡ | |||||
| Avg. Power Consumption | 330W/㎡ | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥960Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable);
20KM(optical fiber cable) |
|||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP65(front), IP54(rear) | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
Download:
P5 Outdoor High Definition Advertising LED Display LED Sign 640×640
