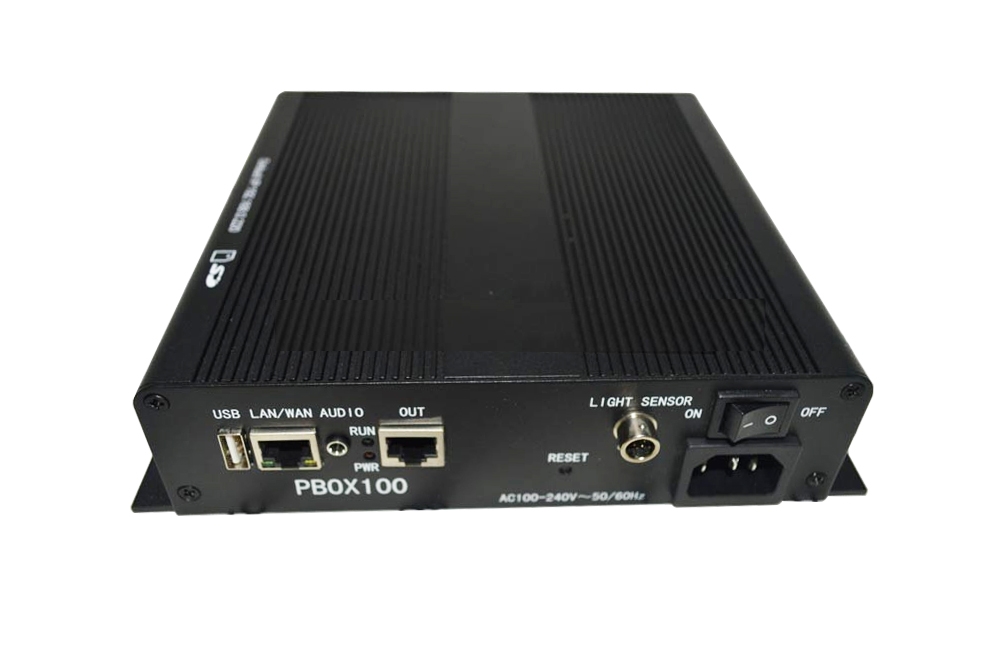

Features of PBOX100 NOVASTAR Asynchronous LED DisplaySender Box:
1) Maximum Resolution:800×600, 512×1024, 1024×512, 2048×256, 1536×384;
2) Drive IC supported: MBI5041/5042/5045, MY9262, MY9221, MBI505X, MBI515X, MY9266/9268/9269, SUM2030, TLC59282/ 59283,
MY9868, SUM2016/ 2017, MBI5020/ 5024/ 5034/ 5035 and many more;
3) Media Format Video: picture, text, weather, clock, countdown, Word, Excel, Txt, etc;
4) Video Format : MPEG4, H.264, MV, VC1, MPEG1;
5) LED Displays Supported: Full color LED display from static to 1/32 scan, with real pixel;
6) Grayscale Levels: 65536 maximum, configurable;
7) Refresh Rate: 6000Hz maximum for static LED display, 3840Hz for scanning LED display;
8) Integrated Power Switch Management: 1;
9) PWM Levels For Brightness Adjustment: 256;
10) Auto Brightness Adjustment: Supported;
11) LED Status Detection: Open/ Short-Circuit checking (with MBI5034/ 5036/ 5039/ 5040， DM13H);
12) Brightness Loss for Calibration: 5%~8%;
13) Integrated Audio Output: Supported;
14) Working Temperature: -20oC ~ 80oC;
15) Power Supply Voltage:4V ~ 5V.
