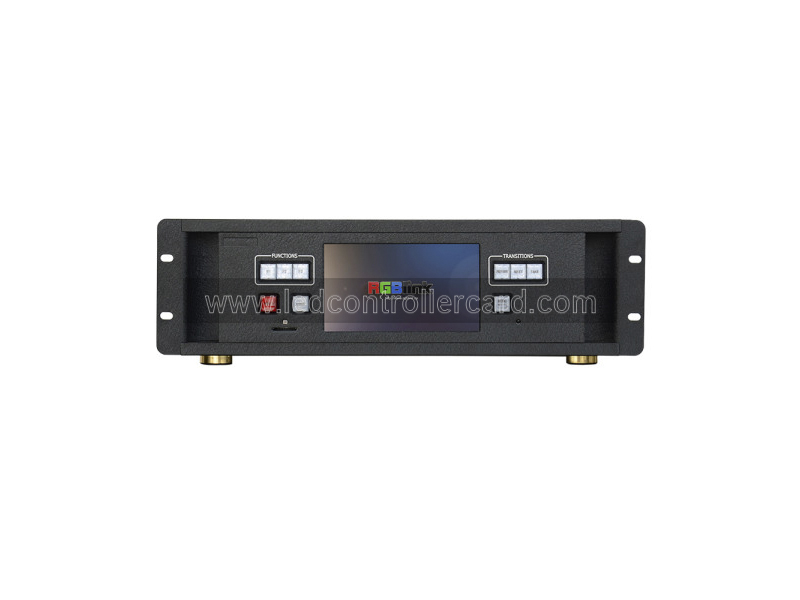

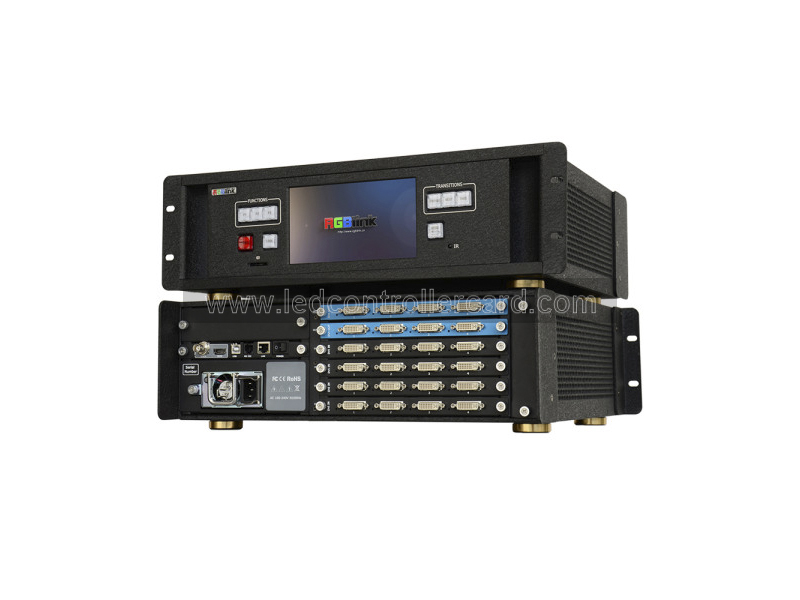

RGBLink VENUS X3 Expandable Videowall Processor Features:
RGBLink VENUS X3 Expandable Videowall Processor, part of the RGBlink Universal Processor range, is a scalable, expandable videowall processor that is dynamically configurable across a wide range of modern display applications. Features high performance video scaling with one or more videos able to be displayed across a display surface of up to eight output displays. X3 has four input slots allowing up to sixteen inputs to be install. Two slots and up to eight outputs may be fitted. All inputs and outputs are modular with accepting RGBlink SmartSlot modules including 3G-SDI, HDMI, DVI, DisplayPort, Composite, H.264 and USB Media. Multiple X3 processors can be cascaded to create very large display arrays. A dedicated, high-speed video/graphic bus maintains real-time performance even regardless of the signal load or type. While X3 is ideal for videowall continuous display environments, the processor is truly multi-application with operation modes including Videowall, Presentation, Matrix, 3D and more. All switching is seamless Control and configuration is undertaken interactively via RGBlink XPOSE or T Series control consoles. Unique encoding technology between 2SI and SQD are switchable via RGBlink 12G SDI input module to ensure a safety application during 4K signal process, transmission.
RGBLink VENUS X3 Expandable Videowall Processor Parameters:
|
Specification
|
|||
|

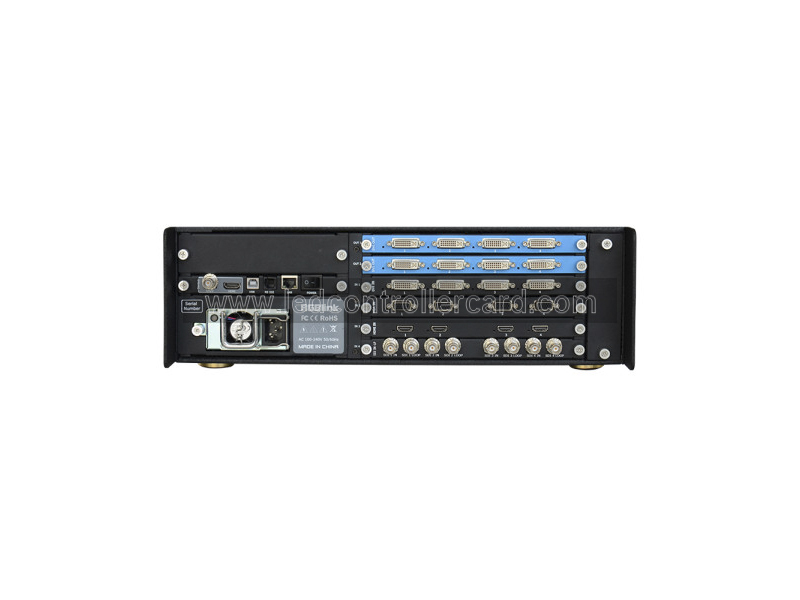

Connectors
|
Input | 4 slots, up to 16 inputs, select from below modules | |
| 4K@60 | 1 x DVI-I | 2 x HDMI-A | 1 x DP | ||
| 12G SDI | 4 x BNC (1 x 12G/6G or 4 x 3G) | ||
| 4K@30 | 2 x DVI-I | 2 x HDMI-A | 2 x DP | ||
| 3G SDI | 8 x BNC (4 In | 4 Loop) | ||
| HDMI | 4 x HDMI-A | ||
| DVI | 4 x DVI-I | ||
| H.264 | 4 x RJ45 | ||
| HDBaseT | 4 x RJ45 | ||
| VGA | 4 x DB15 | ||
| CVBS | 8 x BNC (4 in | 4 backup) | ||
| USB | 4 x USB-A | ||
| Output | 2 slots, up to 8 outputs, select from below modules | ||
| HDMI 4K | 2 x HDMI-A | ||
| HDMI 2K | 4 x HDMI-A | ||
| DVI | 4 x DVI-I | ||
| HDBaseT | 4 x RJ45 | ||
| ARO Rotation | 4 x DVI-I | ||
| Preview | X3p Only, 2 slots standard with | ||
| 2 x DVI | 1 x RJ45 (each modeul | |||
| Communication | LAN | 1 x RJ45 | |
| RS232 | 1 x RJ11 | ||
| USB | 1 x USB-B | ||
| Genlock/Sync | 1 x BNC | 1 x HDMI-A | ||
| Power | 2 slots (1 PSU fitted as standard) | ||
| 1 x IEC (each PSU) | |||
| Performance | Input Resolutions | SDI | |
| SMPTE | 480i | 576i | [email protected]/24/25/29.97/30/50/59.94/60 |
[email protected]/60 | [email protected]/24/25/29.97/30/50/59.94/60 | [email protected]/24/25/29.7/30 |
||
| DVI | HDMI | |||
| SMPTE | [email protected]/24/25/29.97/30/50/59.94/60 | [email protected]/24/25/29.97/30/50/59.94/60 |
[email protected]/24/25/29.7/30 |
||
| VESA | 800×600@60 | 1024×768@60 |
1280×768@60 | 1280×960@60 | 1280×1024@60 | 1360×768@60 | 1440×900@60 | 1400×1050@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 2048×1080@60 | 2048×1152@60 | 2560×960@60 |
||
| HDBaseT | |||
| SMPTE | 720p@50/60 | 1080p@24/25/30/50/60| | ||
| VESA | 800×600@60/75/85 | 1024×768@60/75/85 |
1280×768@60 | 1280×800@60 | 1280×1024@60/75/85 | 1360×768@60 | 1366×768@60 | 1400×900@60 | 1400×1050@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60 | 2048×1152@60 | 2560×812@60 | 2048×816@60 |
||
| VGA | |||
| VESA | 800×600@60 | 1024×768@60 |
1280×960@60 | 1280×1024@60 | 1360×768@60 | 1400×1050@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 |
||
| CVBS | |||
| SMPTE | 480i | 576i | ||
| H.264 | |||
| 176×144 | 240×180 | 320×180 |
320×240 | 320×256 | 352×228 | 352×480 | 400×224 | 400×320 | 480×270 | 480×272 | 480×320 | 480×360| 480×480 | 544×480 | 608×448 | 640×360 | 640×480 | 704×576 | 720×404 | 720×480 | 720×540 | 720×576 | 850×480 | 1024×576 | 1280×720 | 1680×1056 | 1920×1080 |
|||
| 4K@30 | |||
| SMPTE | 480p | 576p | [email protected]/24/25/29.97/30/50/59.94/60 |
[email protected]/24/25/29.97/30/50/59.94/60 | 2160p@30 |
||
| VESA | 800×600@60 | 1024×768@60 |
1280×800@60 | 1280×1024@60 | 1400×1050@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 2048×1080@60 | 2048×1152@60 | 2560×1600@60 | 3840×2160@30 |
||
| 4K@60 | |||
| SMPTE | [email protected]/24/25/29.97/30/50/59.94/60 |
1080p@50/59.94/60 | 2160p@30/60 |
||
| VESA | 800×600@60 | 1024×768@60 |
1280×768@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60 | 1400×900@60 | 1600×1050@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60 | 2048×1080@60 | 2048×1152@60 | 2560×812@60 | 2560×960@60 | 2560×1600@60 | 3840×1080@60 | 3840×2160@30/60 |
||
| 12G SDI | |||
| SMPTE | 720p@50/59.94/60 | [email protected]/24/25/29.97/30/50/59.94/60 |
[email protected]/24/25/29.97/30/50/59.94/60 |
||
| Output Resolutions | Select from below or configure customized SDI | ||
| SMPTE | [email protected]/24/25/29.97/30/50/59.94/60 |
[email protected]/24/25/29.97/30/50/59.94/60 | [email protected]/24/25/29.7/30 |
||
| DVI | |||
| SMPTE | [email protected]/24/25/29.97/30/50/59.94/60 |
[email protected]/24/25/29.97/30/50/59.94/60 |
||
| VESA | 800×600@60 | 1024×768@60 | 1280×800@60 |
1280×960@60 | 1280×1024@60 | 1360×768@60 | 1400×1050@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 2048×1152@60 |
||
| HDMI | |||
| SMPTE | [email protected]/24/25/29.97/30/50/59.94/60 |
[email protected]/24/25/29.97/30/50/59.94/60 | [email protected]/24/25/29.97/30/50/60 |
||
| VESA | 800×600@60 | 1024×768@60 | 1280×768@60 |
1280×800@60 | 1280×960@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60 | 1400×900@60 | 1400×1050@60 | 1440×900@60 | 1600×1050@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60 | 2048×1152@60 | 2560×812@60 | 2560×816@60 | 2560×1600@60 | 3840×1080@60 | 3840×2160@ | 4096×2160@60 |
||
| HDBaseT | |||
| SMPTE | 720p@50/59.94/60 | 1080i@50/59.94/60 |
[email protected]/24/25/29.97/30/50/59.94/60 |
||
| VESA | 1024×768@60/75/85 | 1280×768@60 | 1280×800@60 |
1280×1024@60/75/85 | 1360×768@60 | 1366×768@60 |1400×900@60 | 1400×1050@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@ 60 | 1920×1200@60 | 1920×1080@60 | 2560×812@60 | 2048×816@60 |
||
| H.264 | |||
| 176×144 | 240×180 | 320×180 | 320×240 | 320×256 | 352×228 | 352×480 | 400×224 | 400×320 | 480×270 | 480×272 | 480×320 | 480×360 | 480×480 | 544×480 | 608×448 | 640×360 | 640×480 | 704×576 | 720×404 | 720×480 | 720×540 | 720×576 | 850×480 | 1024×576 | 1280×720 | 1680×1056 | 1920×1080 | |||
| Supported Standard | SDI | SMPTE ST 2082-1 | SMPTE ST 2081-1 | SMPTE ST 424 | SMPTE ST 292-1 | SMPTE ST 259 | DVB-ASI | MADI | |
| HDMI | 2 | ||
| DP | 1.2 | ||
| DVI | Dual Link | ||
| HDBaseT | 1 | ||
| Grey Level | 12bit | ||
| Color Space | 04:04:04 | ||
| Power | Input Voltage | AC 100V~240V, 50/60HZ | |
| Max Power | 205W | ||
| Environment | Temperature | 0°C ~ 55°C | |
| Humidity | 10% ~ 90% RH | ||
