Quick answer: The XingXiu DSP400L-0304-BA power supply converts AC mains input into two regulated DC output channels: 4.2VDC and 3.2VDC. It provides 321W normal output power for compatible LED display systems and industrial electronic equipment.

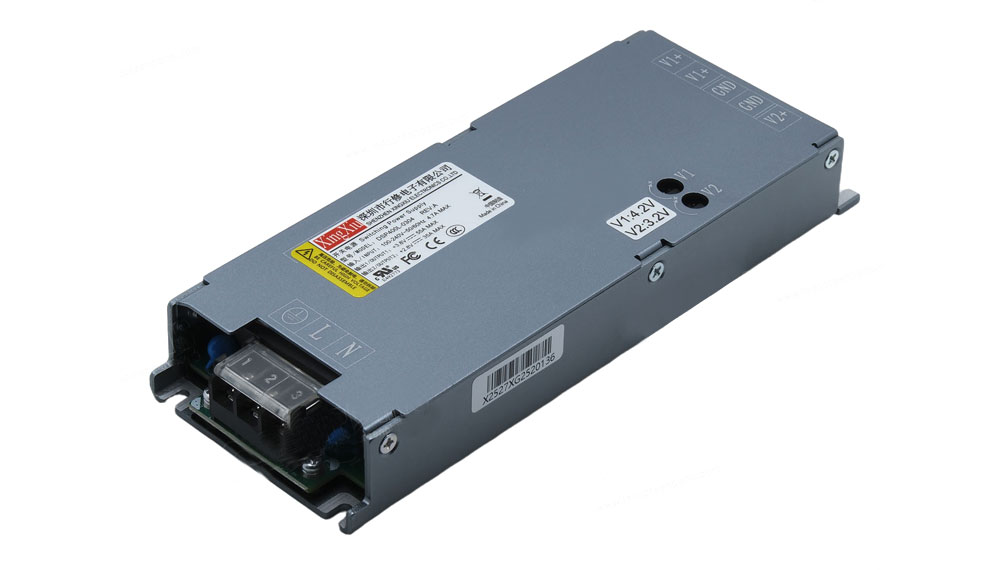

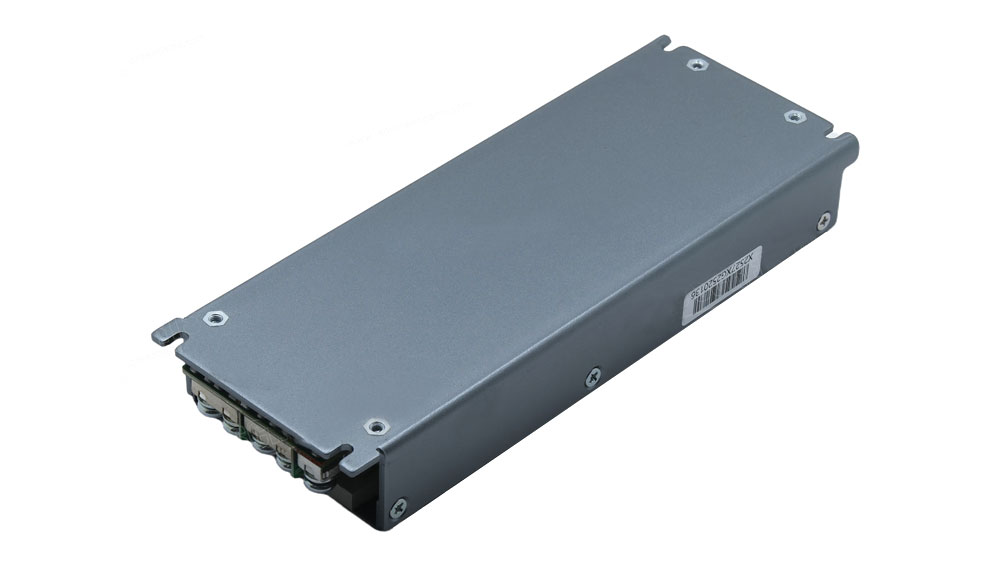

XingXiu DSP400L-0304-BA power supply overview
The BA version uses an LLC conversion topology with precise control and input-to-output isolation. Its 90-264VAC input range supports common 100-240VAC installations, while the dual low-voltage outputs serve equipment designed specifically for 4.2V and 3.2V rails.
Model suffixes matter. The DSP400L-0304-BA is not interchangeable with a similarly named power supply unless the output voltages, connector layout, pinout, power demand, mounting dimensions, and cooling requirements all match.
Key specifications
| Manufacturer / model | XingXiu DSP400L-0304-BA |
|---|---|
| Input voltage range | 90-264VAC |
| Normal input range | 100-240VAC |
| Input frequency | 47-63Hz |
| Maximum input current | 4.7A max at 100VAC |
| Cold-start inrush current | Less than 60A at 230V |
| DC output channels | 4.2VDC and 3.2VDC |
| Normal output power | 321W |
| Typical efficiency | 88% at 230VAC, full load |
| Power factor | Greater than 0.95 at 230VAC |
| Leakage current | Less than 1mA at 230VAC input |
| Input fuse | T6.3AL / 250VAC |
| Cooling method | Ventilation cooling |
| Dimensions | 180 x 68 x 26 mm |
| Certifications listed | CE, UL, FCC, CB, CCC |
Electrical values above are taken from the supplied product specification. Confirm the current specification and system requirements before installation.
DSP400L-0304-BA vs. DSP400L-0304
| Model | DC outputs | Normal power | Typical efficiency |
|---|---|---|---|
| DSP400L-0304-BA | 4.2VDC + 3.2VDC | 321W | 88% |
| DSP400L-0304 | 3.8VDC + 2.8VDC | 307W | 85% |
Choose the model required by the original LED cabinet design. Do not select a replacement by enclosure size or product family name alone.
Typical applications
- Compatible LED display cabinets and control equipment
- Electronic and lighting-display systems
- Security monitoring and communications equipment
- Industrial electrical equipment requiring 4.2VDC and 3.2VDC rails
Compare additional models in our LED power supply catalog.
Compatibility and installation notes
- Verify that the equipment requires both 4.2VDC and 3.2VDC outputs.
- Confirm total load, connector pinout, polarity, mounting dimensions, and airflow.
- Disconnect mains power before wiring or servicing the unit.
- Use protective grounding and keep ventilation paths unobstructed.
- Installation and testing should be completed by a qualified technician.
Need help checking compatibility? Contact our product team with the LED cabinet model, required output rails, connector details, and load information.
Download the DSP400L-0304-BA specification
Download the XingXiu DSP400L-0304-BA LED Power Supply specification (PDF).
Frequently asked questions
What are the DSP400L-0304-BA output voltages?
It provides two DC output channels: 4.2VDC and 3.2VDC. The connected equipment must be designed for these voltage rails.
What input voltage does the BA model accept?
The listed input range is 90-264VAC at 47-63Hz. The normal operating input range is 100-240VAC.
What is the rated output power?
The listed normal output power is 321W. Confirm the actual load and required output distribution before installation.
How is the BA model different from DSP400L-0304?
The BA model provides 4.2VDC and 3.2VDC at 321W, while DSP400L-0304 provides 3.8VDC and 2.8VDC at 307W. They are not direct substitutes unless the equipment requirements match.
Can the XingXiu DSP400L-0304-BA power supply replace a standard 5V unit?
Not as a direct universal replacement. Voltage, connector, pinout, power, and mechanical compatibility must all be verified.
What are the enclosure dimensions?
The enclosure measures 180 x 68 x 26 mm. Allow additional space for connectors, cable bend radius, mounting, and airflow.
